Assembly of TMT

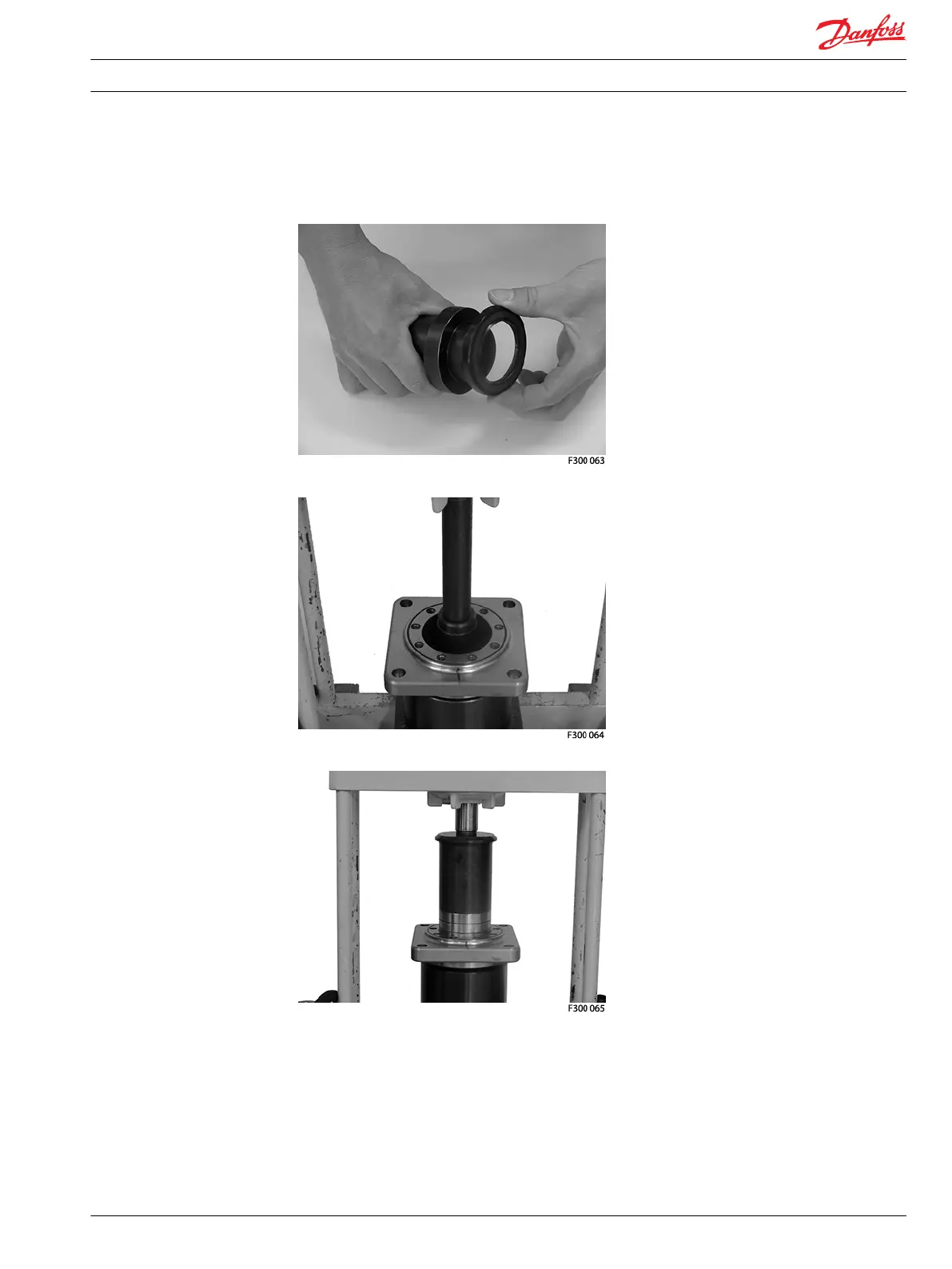

1. Place shaft seal (2) on tool SJ 151B5000-1.
2. Fix bearing housing in a hydraulic press and push shaft seal into bearing housing.
3. With tool SJ 151B9000-11/13, press output shaft with bearings into bearing housing.
4. Fix bearing housing with output shaft and bearings in holding tool SJ 150-9000-2. Install motor flange
(13). Use marks to ensure that bearing housing and motor flange are in line.
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Assembly of TMT
520L0351 • Rev EA • Feb 2014 43
