4.

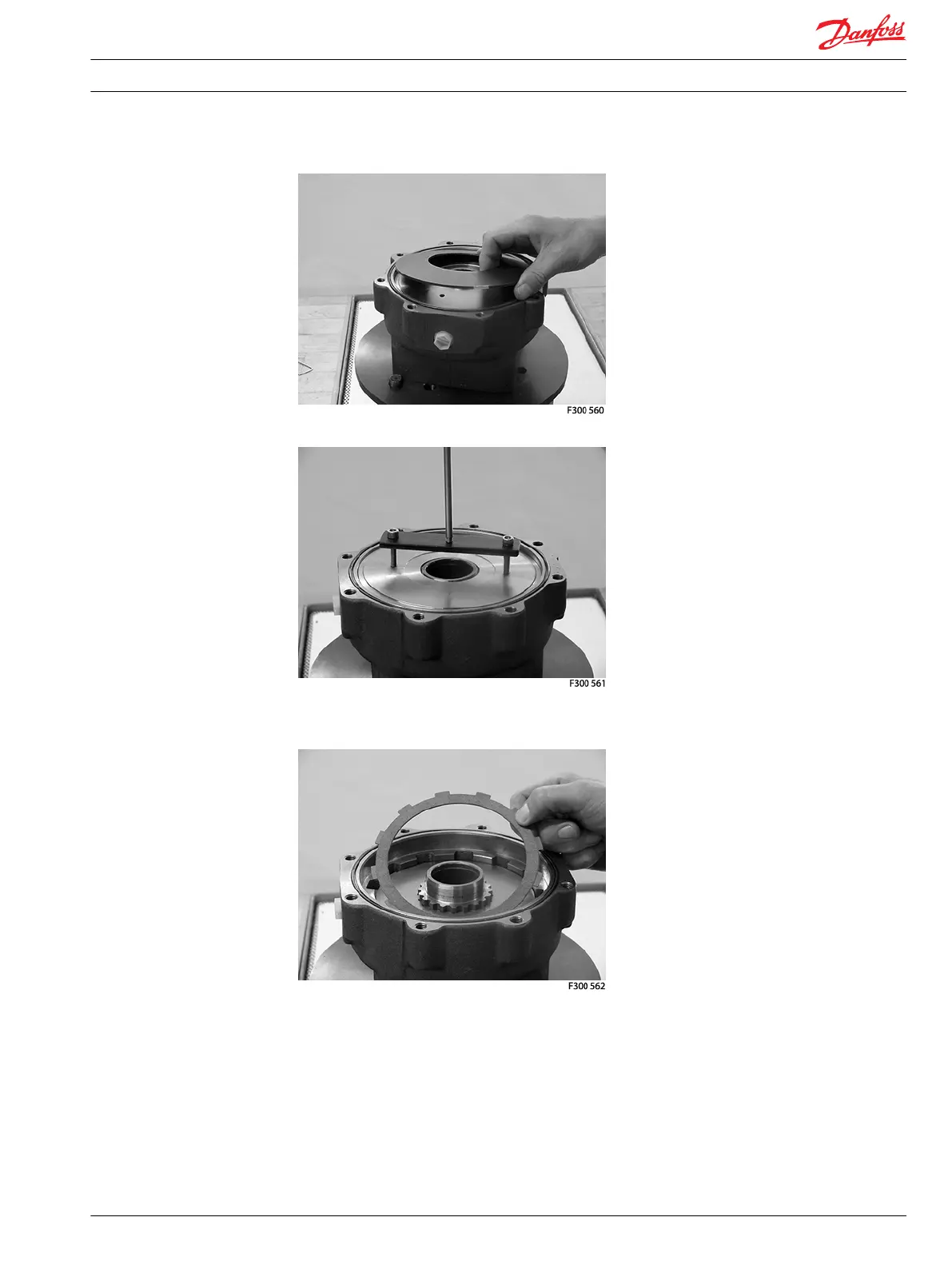

With tool SJ 151B5000-2, lift brake piston out of housing (58).
5.
Remove the multiple brake discs (50 and 51).
Outer disc (7 pcs.)
Repair Instruction
Orbital Motors TMT, TMT FL and TMT W FL
Disassembly of TMT FL (Brake Motor)
520L0351
• Rev EA • Feb 2014
49
48
50
Table of Contents
Table of Contents
3
Special Versions
5
Cost-Free Repairs
5
TMT Motor
6
Safety Precautions
6
Symbols Used in Danfoss Literature
6
TMT Motor and TMT FL Motor with Brake
7
Exploded View TMT
8
Tmt
8
Spare Part List TMT
9
Exploded View TMT
11
Tmt
11
Spare Part List TMT
12
Exploded View TMT
14
Tmt
14
Spare Part List TMT
15
Exploded View TMT
18
Tmt
18
Spare Part List TMT
19
Exploded View TMT FL
22
Tmt Fl
22
Spare Part List TMT FL
23
Exploded View TMT FL
25
Tmt Fl
25
Spare Part List TMT FL
26
Exploded View TMT FL
28
Tmt Fl
28
Spare Part List TMT FL
29
TMT Disassembly
31
Disassembly and Assembly of the End Cover
36
Disassembly of the End Cover
36
Disassembly of Seals on Balance Plate
38
Installation of Seals on Balance Plate
39
Disassembly of Seals in End Cover
39
Installation of Seals in End Cover
40
Assembly of End Cover
41
Assembly of TMT
43
Disassembly of TMT FL (Brake Motor)
48
Assembly of TMT FL (Brake Motor)
52
Assembly of TMT FL
52
The Brake Piston
55
The Standard Brake Piston
55
The Back-Pressure Brake Piston
55
Installation of Braking Part
57
Tools for Disassembly and Reassembly of TMT and TMT FL Motors
59
