Service Monitor User Manual
Danfoss Turbocor Compressors Inc. 7
ECD-00007M Rev. 1
Access Code - The access code controls access to all
adjustable parameters. The default user access level on
power up is read only. Enter the code that corresponds to
the access level you require. Contact Turbocor Product
Support to obtain the required access code.
1. Once the serial port connection data has been set, click
the Connect button. At this point, connection status,
compressor details, and user access level appear in the
right-hand pane of the dialog box.
2. If necessary, change the access level. Enter the access
code in the “Access Code” parameter box, then click
“Change Access Level”. Confirm that the correct
access level has been set on the right-hand pane of the
dialog box.
NOTE:
The access level connection cannot be changed prior to a
establishing connection.
Entering the wrong access code more than 3 times will lock
out all communications until a cycle of the power is
performed.
3. Click the “OK to start monitoring” button.
4 Compressor Configuration
4.1 Using the Setup Wizard
The monitor program features a commissioning setup
wizard to guide the user through the complete compressor
configuration process.
1. To launch the commissioning setup wizard, select
“System Commissioning” from the “Advanced” menu
item. The introduction screen for the commissioning
setup wizard appears; refer to Figure 5. Click Next.
(To bypass the setup wizard and use a saved
configuration file to setup the compressor, check the
checkbox and click Next. Continue with 4.2 "Using a
Saved Configuration File" on page 13.)
2. Select the appropriate units of measurement (metric or
imperial). Refer to Figure 6.
3. Select the appropriate compressor control method.
There are three modes available:
• Analog Input: compressor loading controlled using
an analog demand signal of 0-10 VDC from an
external controller. The variable demand signal
corresponds to the range of 0-100% maximum
power available.

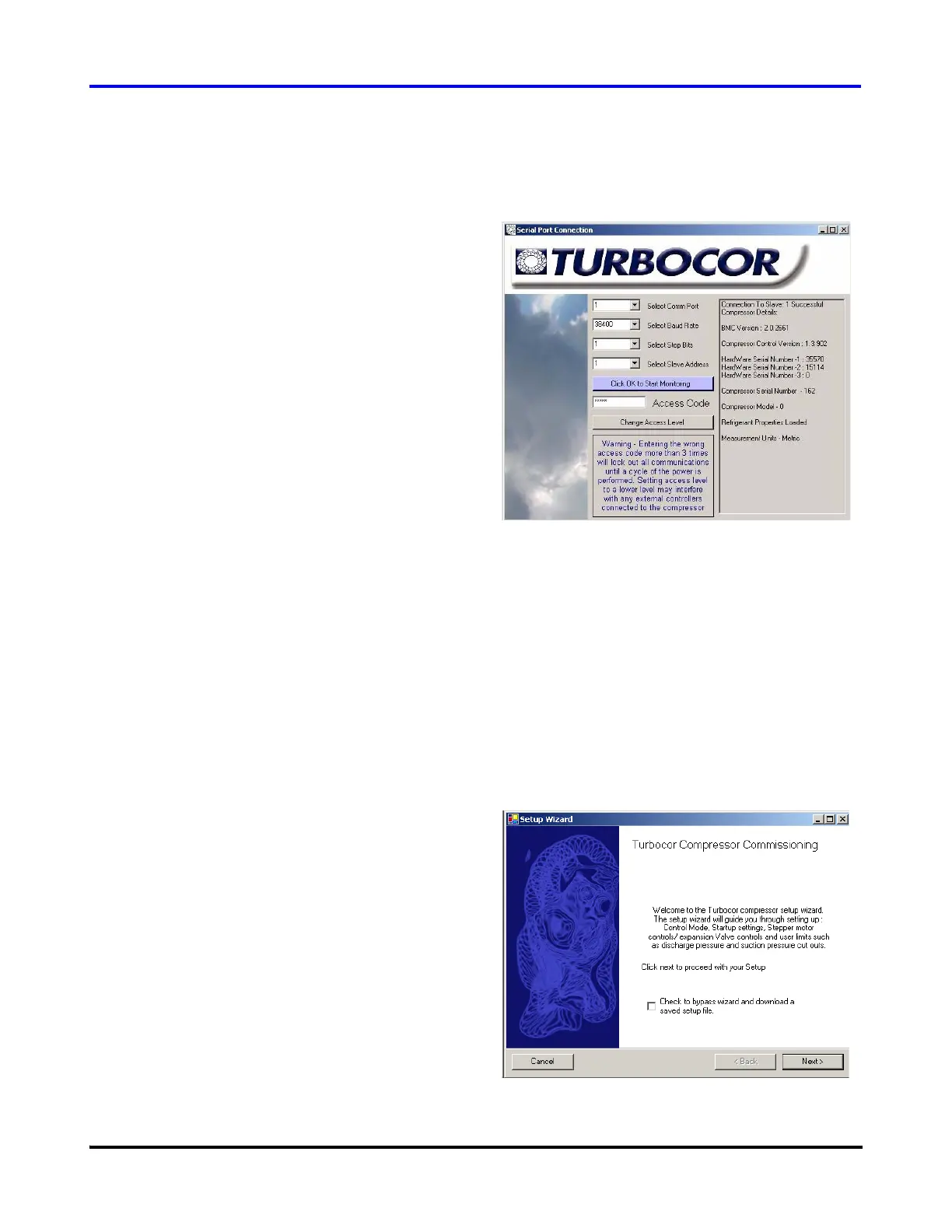

Figure 4 Serial Port Connection Dialog Box
Figure 5 Commissioning Set-up Wizard
