Service Monitor User Manual
Danfoss Turbocor Compressors Inc. 43
ECD-00007M Rev. 1
6.9.3 Compressor Controller Fault Limits
Select the “CC Trip Limits” tab to view the compressor
general fault limits. Table 17 describes the general trip
limits.
The limits represent the maximum temperature and/or
pressure values the compressor will tolerate before
activating a fault.
Once a fault occurs, the compressor motor will trip and the
fault will be reported in the “Compressor Controller”
window as well as in the “Event Log” window.
An authorized user may change the following fault limits to
adapt to the application needs:
• Suction Pressure
• Leaving Temperature
• Total Compression Ratio
All other fault limits cannot be altered, as changing these
limits may cause the compressor to malfunction.

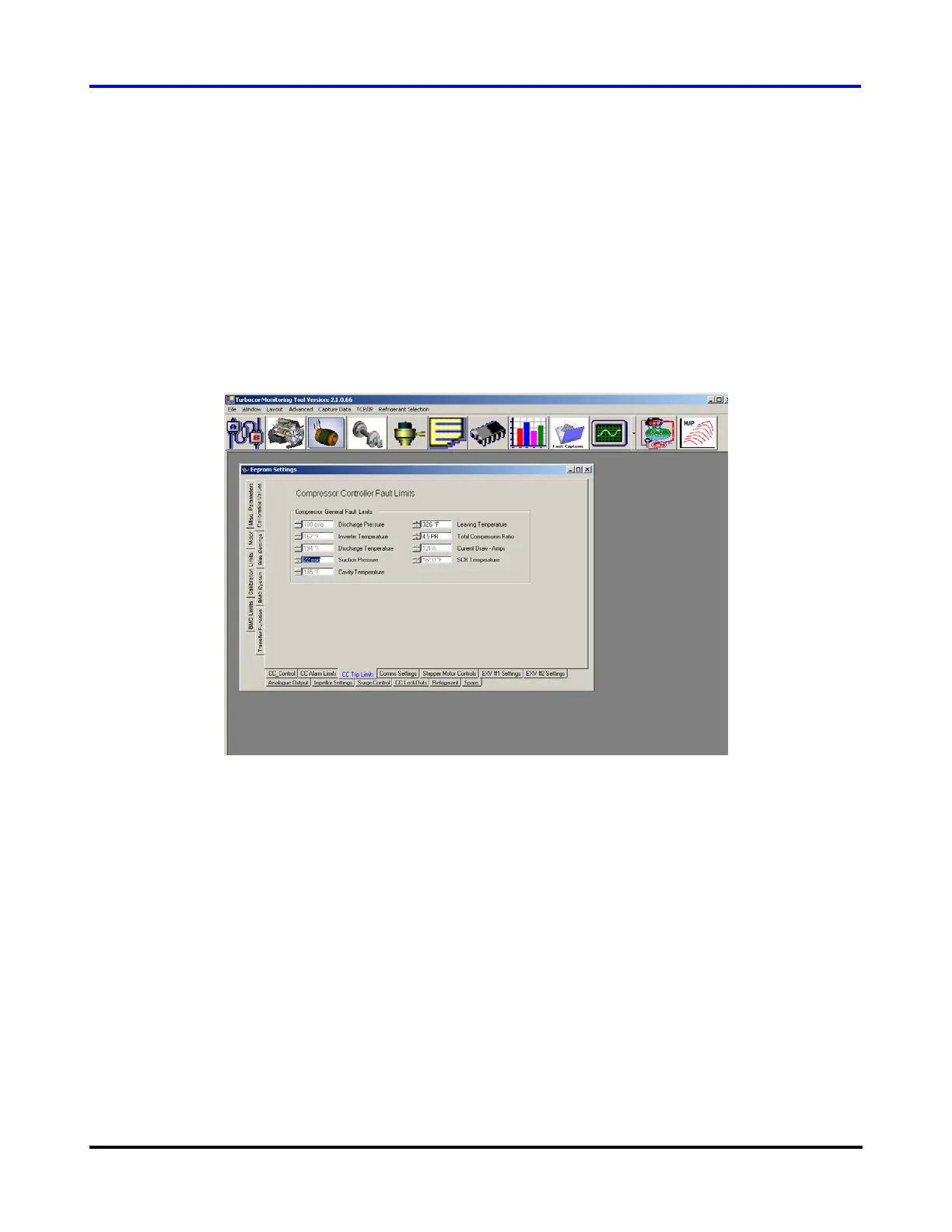

Figure 32 EEPROM Settings - Compressor Controller Fault Limits
