Service Monitor User Manual
Danfoss Turbocor Compressors Inc. 5
ECD-00007M Rev. 1
3.2 Monitor Program Installation
The monitor program is installed on the PC and
communicates with the compressor using the ModBus
protocol over a RS-232 or RS-485 serial link. Administrator
privileges may be required to install and remove software
on the PC.
NOTE:
If a previous version of the monitor program is already
installed on the PC, it must be uninstalled before proceeding
with the current installation. To uninstall the monitor
program: from the “Start” menu, select “Settings” →
“Control Panel”. Double-click “Add/Remove Programs”.
From the list, select “Danfoss Turbocor Service Monitoring
Tool” and then click the “Remove” button.
Installation Procedure:
1. Insert the monitor program CD into the drive.
2. In Windows Explorer, navigate to the
Turbocor_Service_Tool_Setup.msi file. Double-click
the file to launch the setup wizard.
3. Follow the instructions provided by the wizard to
complete the installation.
4. Click the Close button to exit the setup wizard.
3.3 Starting the Monitor Program
To start the monitor program: from the “Start” menu, select
“Programs” → “Danfoss Turbocor Monitoring Tool”.
3.4 User Interface
3.4.1 Monitor Program Toolbar
The toolbar (located under the menu bar) provides the user
with easy access to the monitoring windows. Table 2
provides details for each icon on the toolbar.
NOTE:
Up to three windows can be displayed at one time. If three
windows are already open, one must be closed before
another window can be opened.

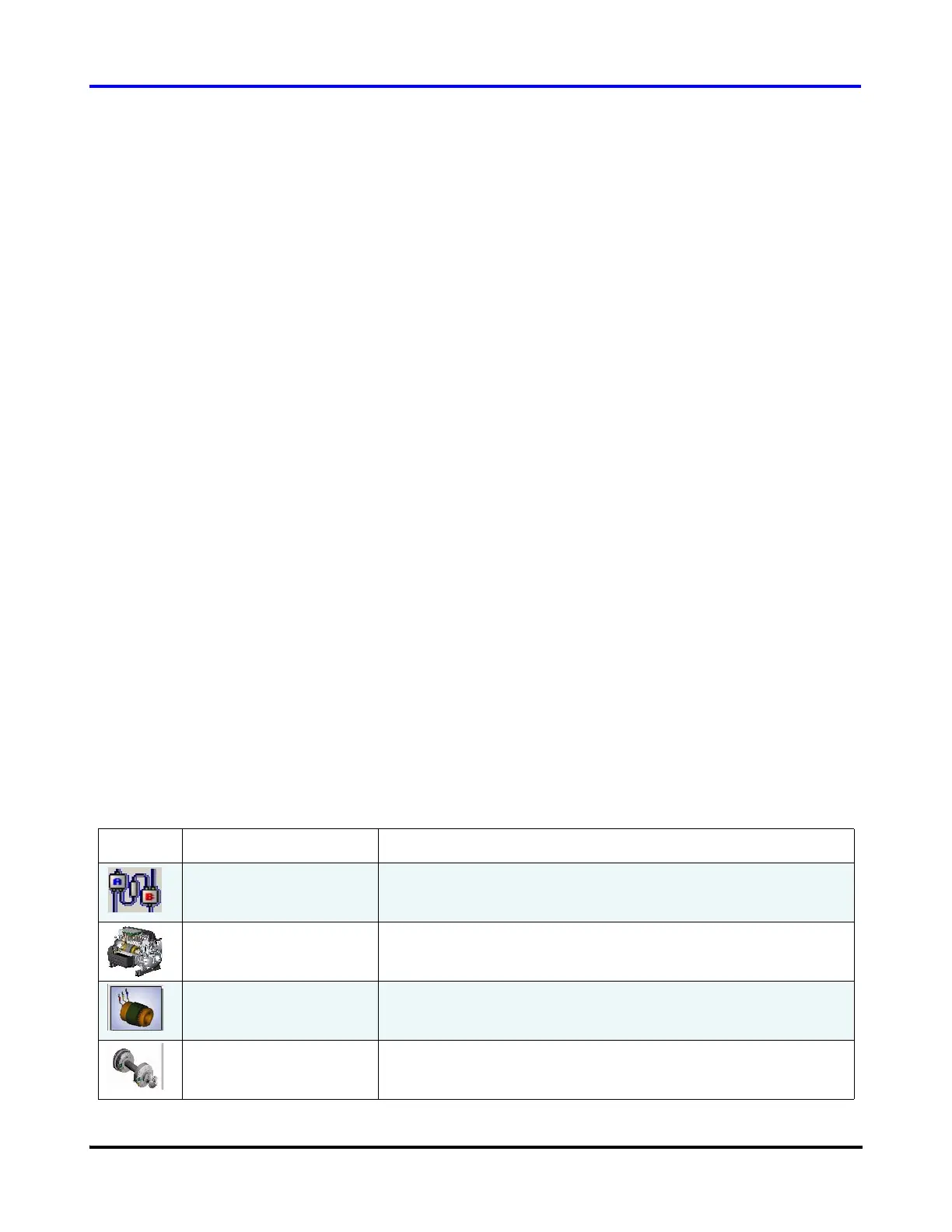

Table 2 Monitor Program Toolbar Icons
Icon Name Description
Serial Port Connection Clicking on the “Serial Port Connection” icon opens the “Serial Port
Connection” window. Refer to section 3.5 "Serial Port Connection"
on page 6.
Compressor Controller
Parameters
Clicking on the “Compressor Controller Parameters” icon opens
the “Compressor Controller” window. Refer to section 6.3
"Compressor Control" on page 23.
Motor Monitor Clicking on the “Motor Monitor” icon opens the “Variable Speed
Permanent Magnet Motor Monitoring” window. Refer to section
6.4 "Motor Monitoring" on page 28.
Magnetic Bearings Clicking on the “Magnetic Bearings” icon opens the “Magnetic
Bearing Monitoring” window. Refer to section 6.5 "Magnetic
Bearing Monitoring" on page 31.
