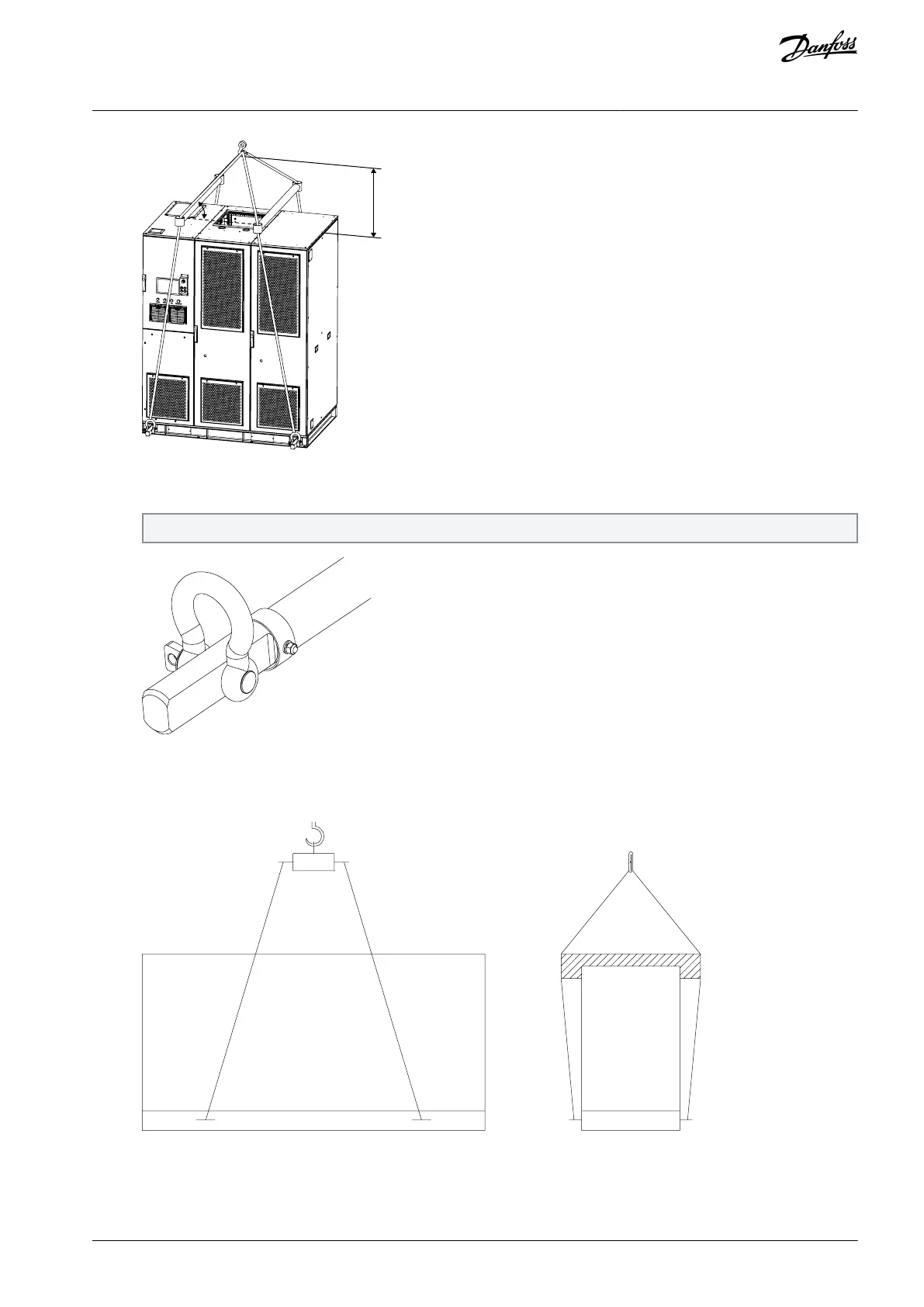

Illustration 30: Lifting the Standalone Cabinets
Use the shackles in the holes of the lifting bar.
Use only 33 mm (1.3 in) diameter holes and 30 mm (0.75–1.125 in) width for the shackles.
e30bi663.10
Illustration 31: Shackle Attached to Lifting Bar
Make sure that the crane lifting ropes do not compress the cabinet and damage it. Use spreader bars or a block of wood
between the ropes on the top of the cabinet.
e30bi664.10
Illustration 32: Lifting Ropes Spread with a Block of Wood
Lift the cabinet slowly and without jerking. Lower in the same manner to a standstill position.
