A
Request
B
Start
C
Stop
D
Speed setting
E
Reset
7.4 Status
To select one of the status submenus, press the Status button in the HMI menu:
Dashboard
Power cell status submenu
Cooling fan status submenu
7.4.1 Power Cell
The power cell submenu shows the DC-link voltages and active fault codes of the power cells.
e30bi736.10

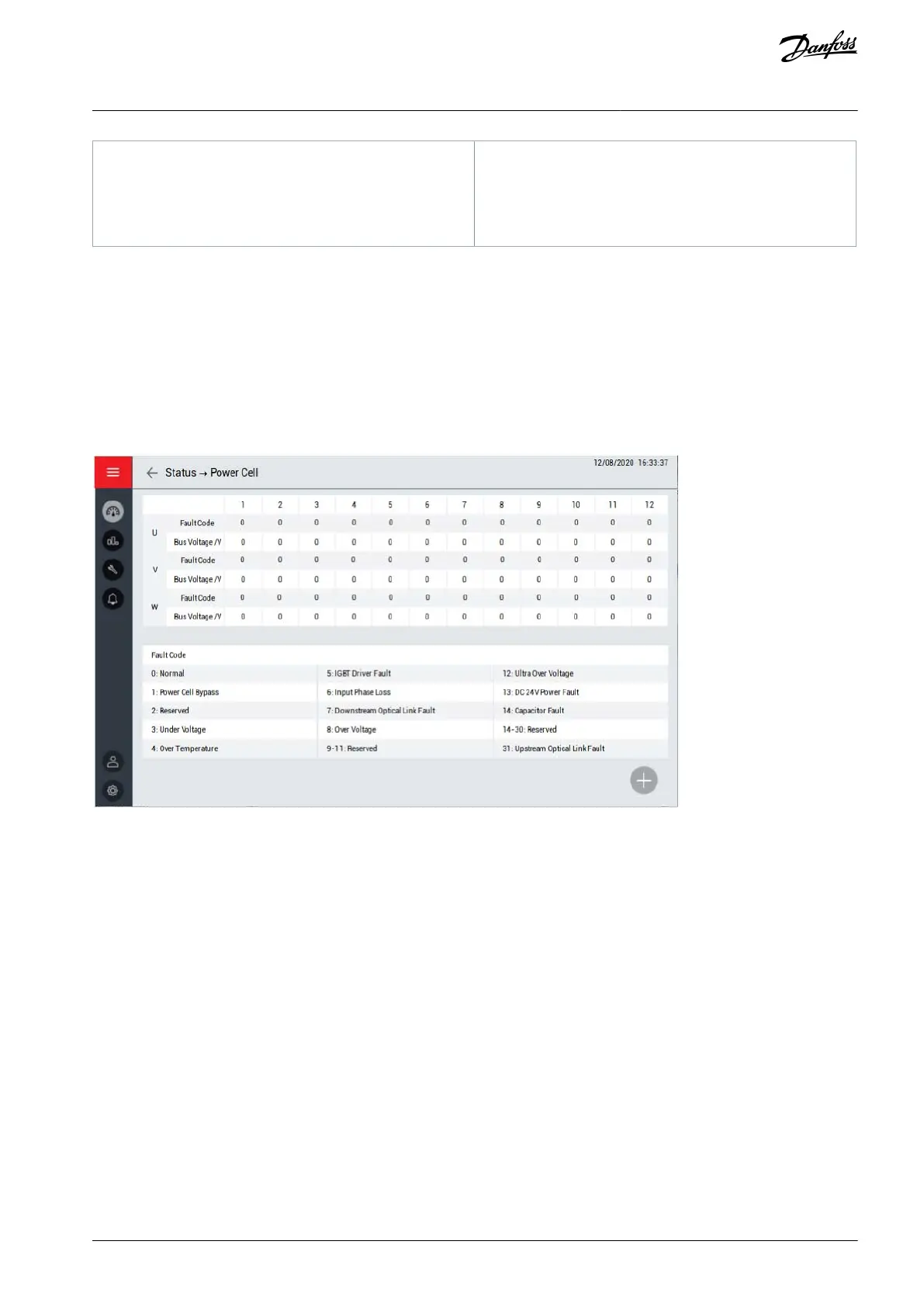

Illustration 57: Power Cell Submenu
7.4.2 Cooling Fan
The cooling fan submenu shows the status of all the cooling fans in the drive cabinets. The fans of the different cabinets are shown
on separate tabs.
Actions available in this menu:
Manual operation of the fans.
Changing the running cycle/day.
Recovery confirmation.
7.5 Graphs & Reports
The Graphs & reports submenu shows historical graphs of selected parameters. Four channels are available.
Each channel can show different parameters, such as:
Input voltage
Output voltage
Input current
Output current
Reference speed
AQ363633621020en-000201 / 172F3117 | 65Danfoss A/S © 2021.06
Human-Machine Interface
VACON® 1000
Operating Guide
