1.
B
Filter cover
Remove the air filter cover.
e30bi683.10

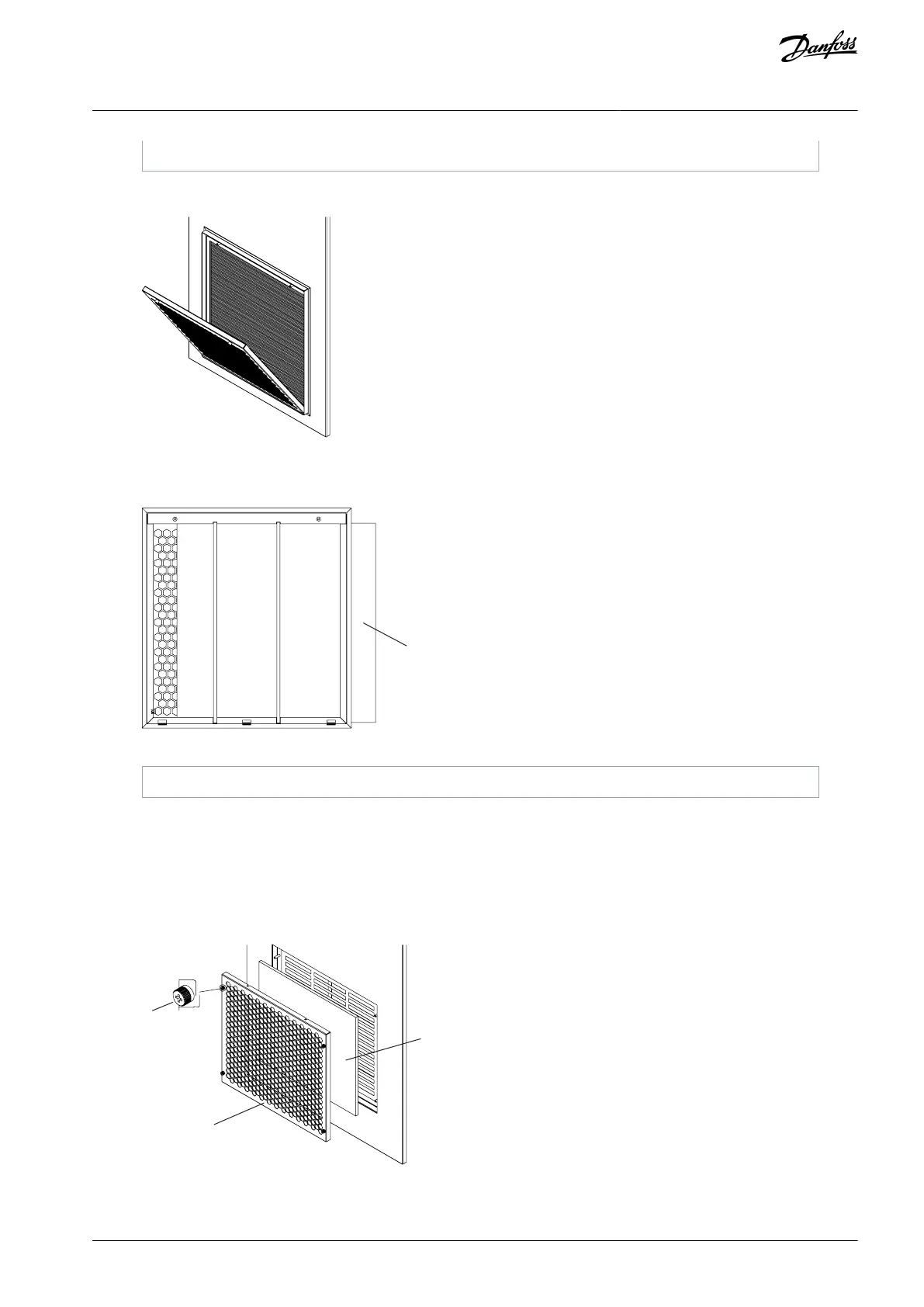

Illustration 70: Removing the Filter Cover
Remove the filter and replace it with a new one.
e30bi684.10
A
Illustration 71: Replacing the Air Filter
A
Air filter
Reinstall the filter cover and tighten the screws.
Note the filter replacement date.
9.4.2 Air Filters of Transformer and Power Cell Cabinets
Procedure
Loosen the screws on the air filter cover.
e30bi685.10
A
B
C
Illustration 72: Air Filter Replacement
