Danfoss VLT AAF006 User Manual

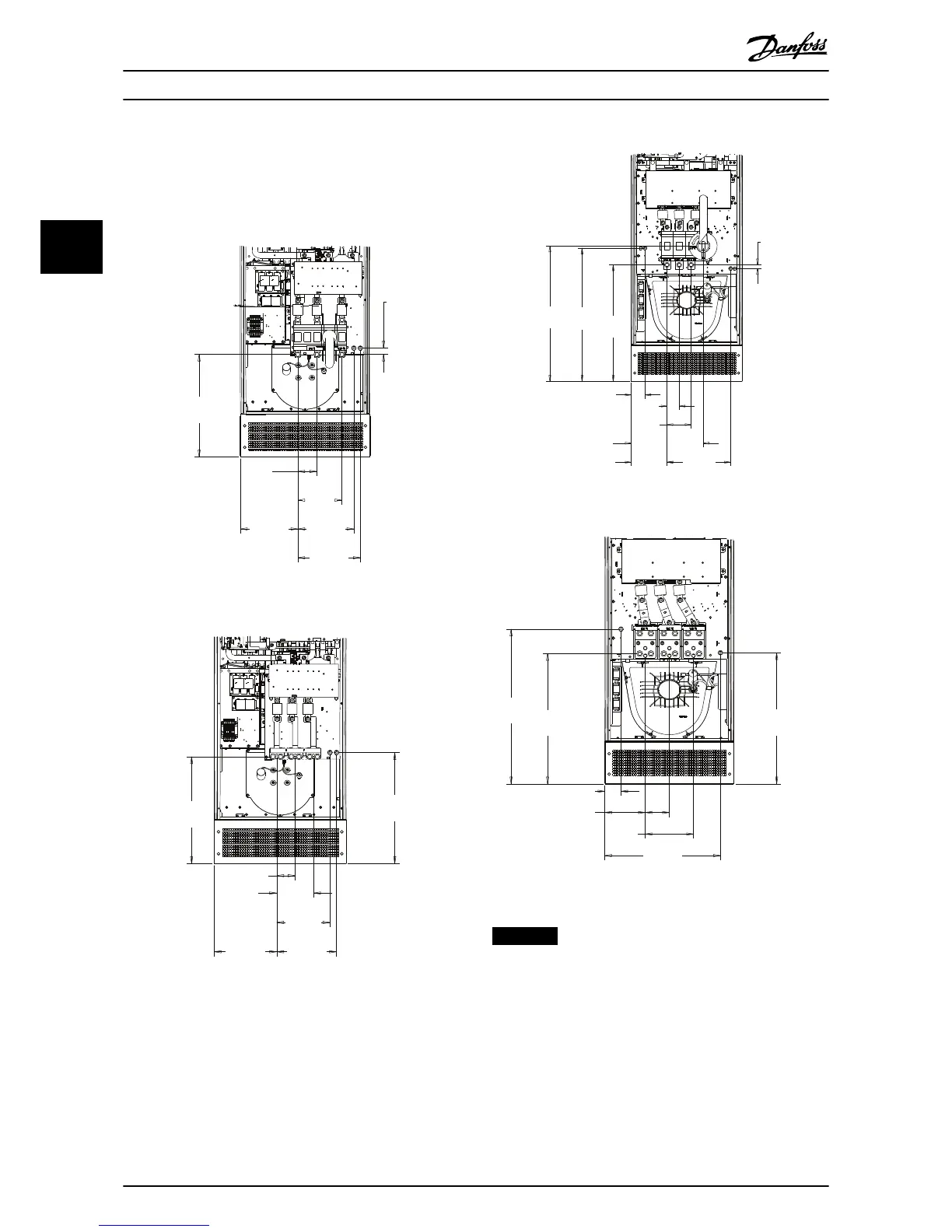

3.2.3 Power Terminal Locations
Consider the position of the terminals when designing for
cable access. See Illustration 3.6, Illustration 3.7,
Illustration 3.8, and Illustration 3.9
88.0
[3.5]
204.0
[8.0]
289.7
[11.4]
29.0
[1.1]
266.2
[10.5]
476.0
[18.7]
259.7
[10.2]
130BC636.10
Illustration 3.6 Terminal Location of D14 with Disconnect
284.1
[11.2]
83.7
[3.3]
167.2
[6.6]
241.9
[9.5]
271.9
[10.7]
505.0
[19.9]
486.0
[19.1]
130BC637.10
Illustration 3.7 Terminal Location of D14 without Disconnect
65.0
[2.6]
130.0
[5.1]
343.0
[13.5]
19.6
[.8]
628.7
[24.8]
194.0
[7.6]
75.0
[3.0]
719.1
[28.3]
389.0
[15.3]
730.7
[28.8]
130BC638.10
Illustration 3.8 Terminal Location of E1 with Disconnect
719.1
[28.3]
609.1
[24.0]
75.0
[3.0]
188.0
[7.4]
112.0
[4.4]
224.0
[8.8]
537.0
[21.1]
605.6
[23.8]
130BC639.10
Illustration 3.9 Terminal Location of E1 without Disconnect
NOTICE
Each terminal allows up to 4 cables with cable lugs or
use of a standard box lug. Ground is connected to the
relevant termination point in the unit.
Mechanical Installation Operating Instructions
12 Danfoss A/S © 09/2014 All rights reserved. MG90V302
33
