2.
Use [
▲
] and [
▼
] keys keys to find parameter group to edit.
3. Press [OK] key.
4.
Use [
▲
] and [
▼
] keys to find parameter to edit.
5. Press [OK] key.
6.
Use [
▲
] and [
▼
] keys to select correct parameter setting. Or, to move to digits within a number, use keys. Cursor indicates digit selected to
change. [
▲
] key increases the value, [
▼
] key decreases the value.
7. Press [Cancel] key to disregard change, or press [OK] key to accept change and enter new setting.
7.1.5. Changing a Text Value
If the selected parameter is a text value, change the text value by means
of the up/down navigation keys.
The up key increases the value, and the down key decreases the value.
Place the cursor on the value to be saved and press [OK].
130BP068.10

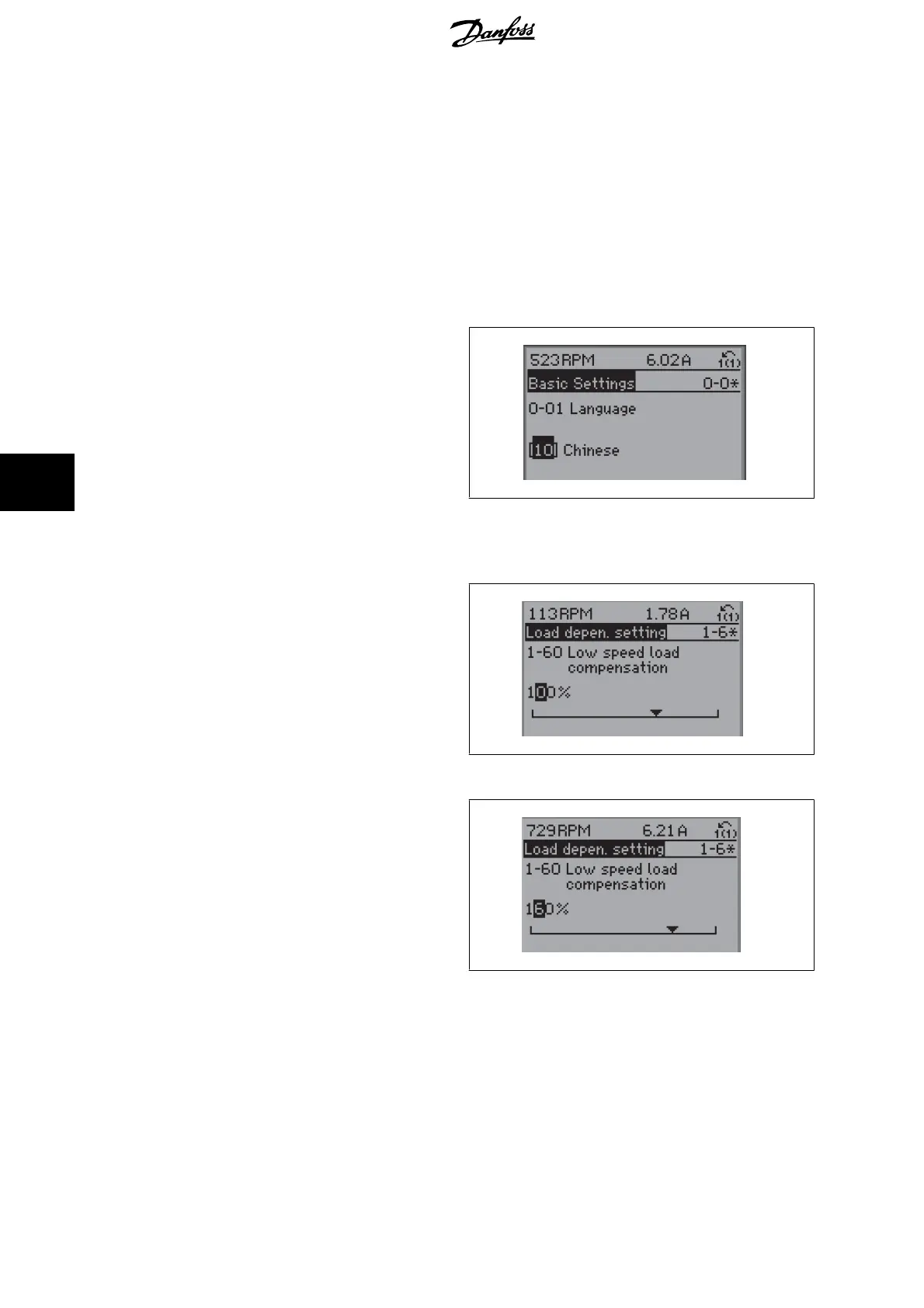

Illustration 7.6: Display example.
7.1.6. Changing a Group of Numeric Data Values
If the chosen parameter represents a numeric data value, change the
chosen data value by means of the <> navigation keys as well as the up/
down navigation keys. Use the <> navigation keys to move the cursor
horizontally.
130BP069.10
Illustration 7.7: Display example.
Use the up/down navigation keys to change the data value. The up key
enlarges the data value, and the down key reduces the data value. Place
the cursor on the value to be saved and press [OK].
130BP070.10
Illustration 7.8: Display example.
7.1.7. Changing of Data Value, Step-by-Step
Certain parameters can be changed step by step or infinitely variably. This applies to par. 1-20 Motor Power [kW] , par. 1-22 Motor Voltage and par.
1-23
Motor Frequency .
The parameters are changed both as a group of numeric data values and as numeric data values infinitely variably.
7. How to operate the frequency converter
VLT
®
AQUA Drive
Operating Instructions
58 MG.20.M5.02 - VLT
®
is a registered Danfoss trademark
7
