Danfoss vlt aqua Programming Guide

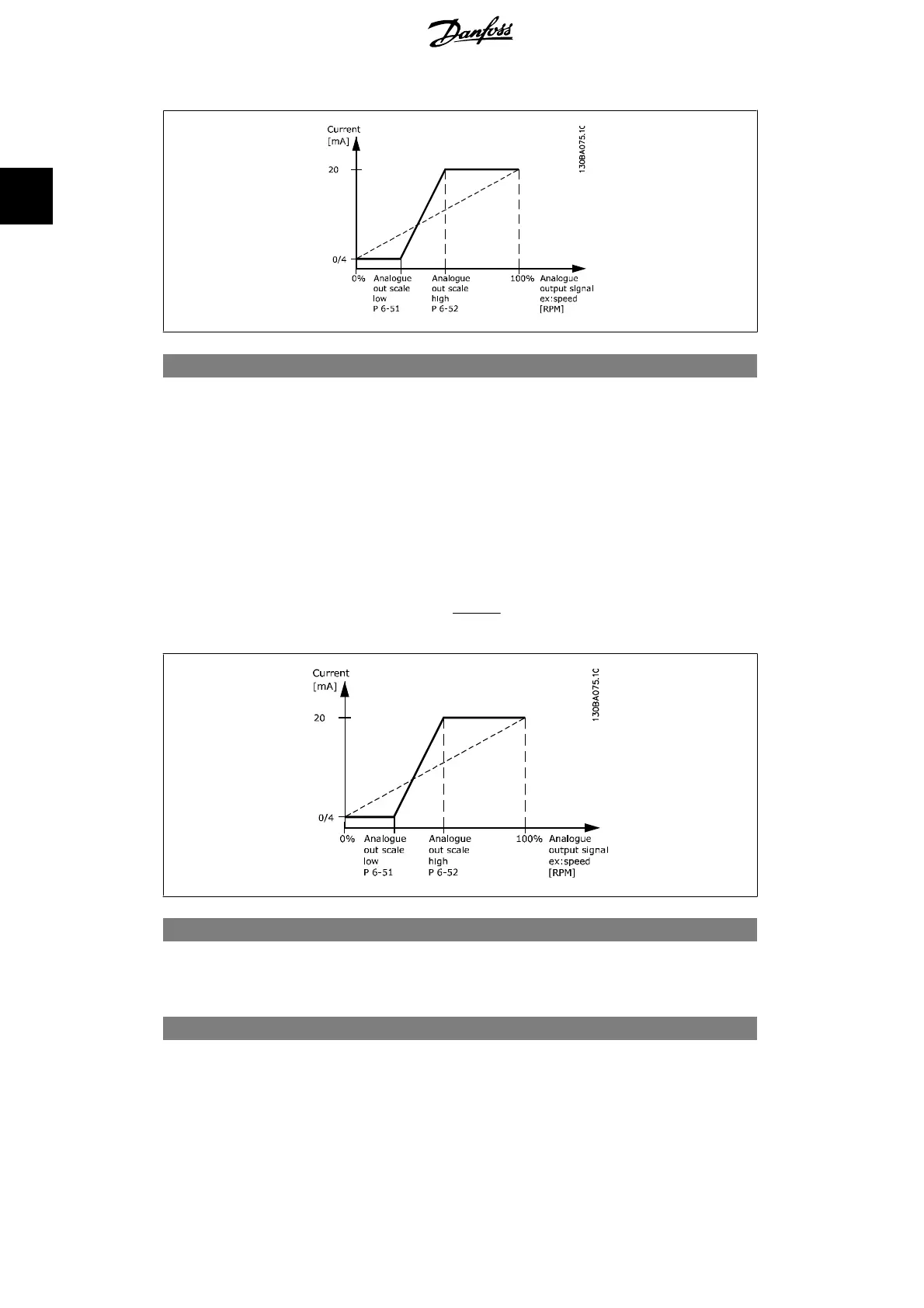

6-52 Terminal 42 Output Max Scale
Range: Function:
100%
*
[0.00 – 200%] Scale the maximum output of the selected analog signal at ter-
minal 42. Set the value to the maximum value of the current
signal output. Scale the output to give a current lower than 20
mA at full scale; or 20 mA at an output below 100% of the
maximum signal value. If 20 mA is the desired output current
at a value between 0 - 100% of the full-scale output, pro-
gramme the percentage value in the parameter, i.e. 50% = 20
mA. If a current between 4 and 20 mA is desired at maximum
output (100%), calculate the percentage value as follows:
20 mA / desired maximum current × 100 %
i . e .10 mA :
20 mA
10 mA
× 100 % = 200 %
6-53 Terminal 42 Output Bus Control
Range: Function:
0.00%
*
[0.00 – 100.00 %] Holds the level of Output 42 if controlled by bus.
6-54 Terminal 42 Output Timeout Preset
Range: Function:
0.00%
*
[0.00 – 100.00 %] Holds the preset level of Output 42.
In case of a bus timeout and a timeout function is selected in
par. 6-50 the output will preset to this level.
2. Parameter Description VLT
®
AQUA Drive Programming Guide
104 MG.20.O2.02 - VLT
®
is a registered Danfoss trademark
2

Danfoss vlt aqua Specifications

General

Supply Voltage	200-240V, 380-500V, 525-600V
Enclosure	IP20
Features	Energy optimization
Approvals	CE, UL, cUL
Input Voltage Range	200-240V, 380-500V, 525-600V
Output Voltage Range	0 to supply voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Ground fault
Communication Interfaces	PROFIBUS
Cooling Method	Air-cooled
