Danfoss vlt aqua Programming Guide

How to access Function Set-up - exam-
ple
130BT110.1
0

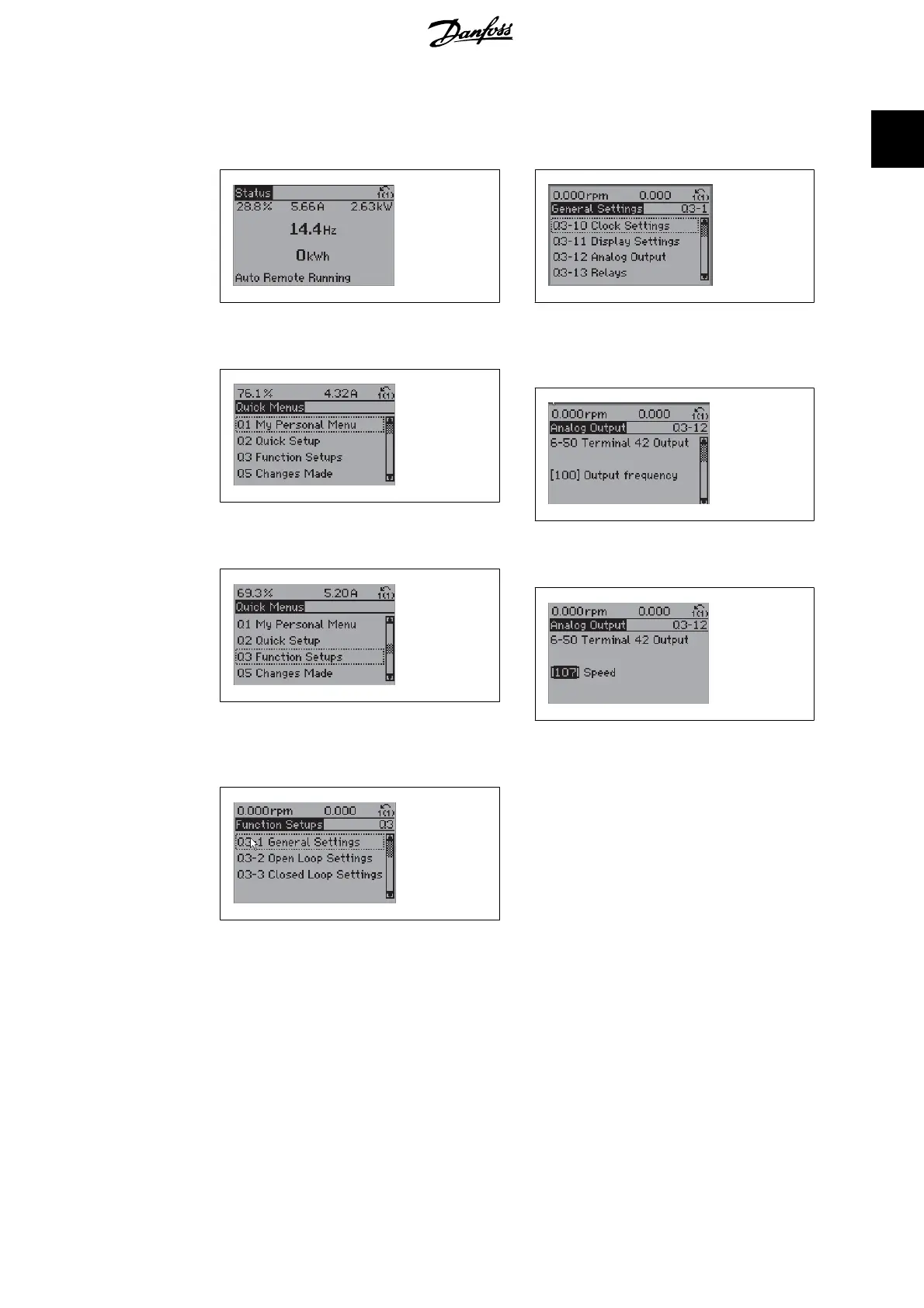

Illustration 1.2: Step 1: Turn on the frequency
converter (On LED lights)
130BT111.1
0
Illustration 1.3: Step 2: Press the [Quick Menus]
button (Quick Menus choices appear).
130BT112.1
0
Illustration 1.4: Step 3: Use the up/down naviga-
tion keys to scroll down to Function Setups. Press
[OK].
130BA500.1
0
Illustration 1.5: Step 4: Function Setups choices
appear. Choose 03-1
General Settings . Press [OK].
130BA501.1
0
Illustration 1.6: Step 5: Use the up/down naviga-
tion keys to scroll down to i.e. 03-12
Analog Out-
puts
. Press [OK].
130BA502.1
0
Illustration 1.7: Step 6: Choose parameter 6-50
Terminal 42 Output . Press [OK].
130BA503.1
0
Illustration 1.8: Step 7: Use the up/down naviga-
tion keys to select between the different choices.
Press [OK].
The Function Setup parameters are grouped in the following way:
VLT
®
AQUA Drive Programming Guide 1. How to Programme
MG.20.O2.02 - VLT
®
is a registered Danfoss trademark 17
1

Danfoss vlt aqua Specifications

General

Supply Voltage	200-240V, 380-500V, 525-600V
Enclosure	IP20
Features	Energy optimization
Approvals	CE, UL, cUL
Input Voltage Range	200-240V, 380-500V, 525-600V
Output Voltage Range	0 to supply voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Ground fault
Communication Interfaces	PROFIBUS
Cooling Method	Air-cooled
