Danfoss VLT AutomationDrive FC 300 Series Programming Guide

e30ba046.12
60%
0%
100%
U
m
Changeover
f
out
Par.1-60
Par.1-61

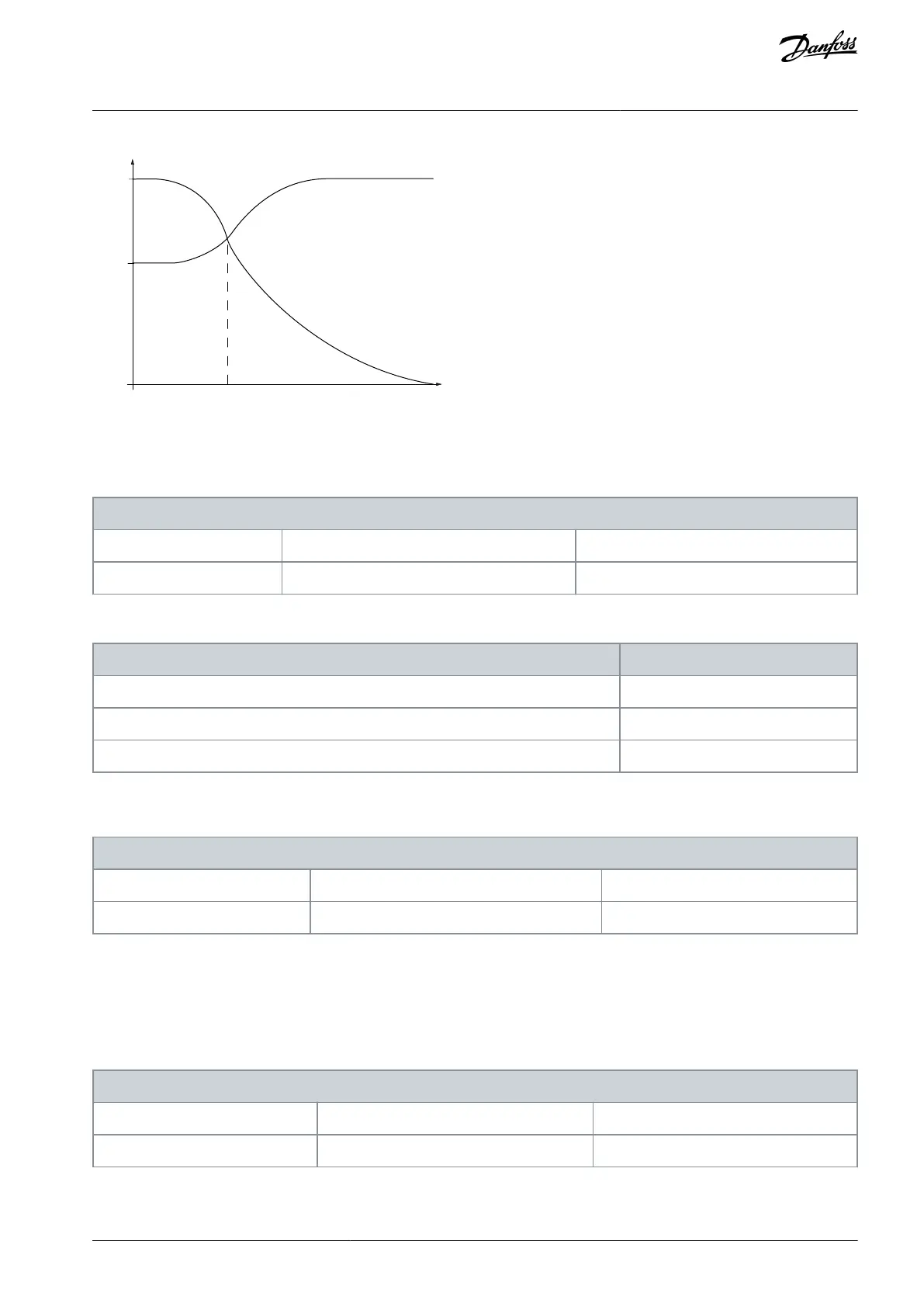

Illustration 37: Changeover
Parameter 1-61 High Speed Load Compensation
Table 112: Parameter 1-61 High Speed Load Compensation
1-61 High Speed Load Compensation
Default value: 100%
Parameter type: Range, 0 - 300%
Setup: All setups
Conversion index: 0
Data type: Int16
Change during operation: True
Enter the % value to compensate voltage in relation to load when the motor is running at high speed and obtain the optimum U/f
characteristic. The motor size determines the frequency range within which this parameter is active.
Motor size
Changeover
0.25–7.5 kW
>10 Hz
11–45 kW
>5 Hz
55–maximum power size kW
>3–4
Parameter 1-62 Slip Compensation
Table 113: Parameter 1-62 Slip Compensation
1-62 Slip Compensation
Default value: Size related
Parameter type: Range, -500 - 500%
Setup: All setups
Conversion index: 0
Data type: Int16
Change during operation: True
Enter the % value for slip compensation to compensate for tolerances in the value of n
M,N
. Slip compensation is calculated automat-
ically, that is on the basis of the nominal motor speed n
M,N
. This function is not active when parameter 1-00 Configuration Mode is set
to [1] Speed closed loop or [2] Torque torque control with speed feedback or when parameter 1-01 Motor Control Principle is set to [0]
U/f.
Parameter 1-63 Slip Compensation Time Constant
Table 114: Parameter 1-63 Slip Compensation Time Constant
1-63 Slip Compensation Time Constant
Default value: Size related
Parameter type: Range, 0.05 - 5 s
Setup: All setups
Conversion index: -2
Data type: Uint16
Change during operation: True
AU275636650261en-000101 / 130R0334 | 93Danfoss A/S © 2022.12
Parameter Descriptions
VLT AutomationDrive FC 301/302
Programming Guide
