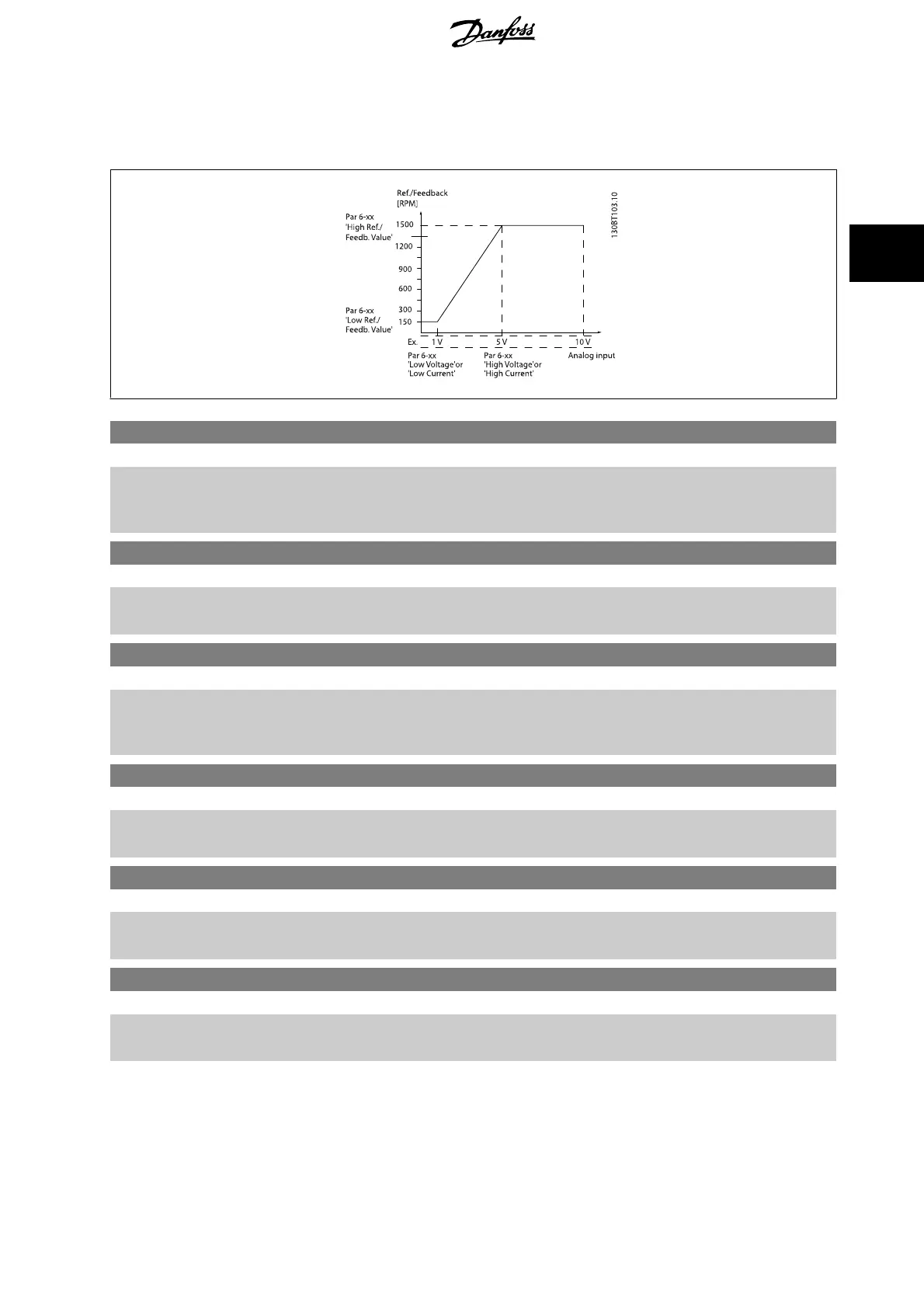

3.8.3 6-1* Analog Input 1
Parameters for configuring the scaling and limits for analog input 1 (terminal 53).
6-10 Terminal 53 Low Voltage
Range: Function:
0.07 V* [Application dependant] Enter the low voltage value. This analog input scaling value should correspond to the minimum
reference value, set in par. 6-14
Terminal 53 Low Ref./Feedb. Value
. See also the section
Reference
Handling
.
6-11 Terminal 53 High Voltage
Range: Function:
10.00 V* [Application dependant] Enter the high voltage value. This analog input scaling value should correspond to the high refer-
ence/feedback value set in par. 6-15
Terminal 53 High Ref./Feedb. Value
.
6-12 Terminal 53 Low Current
Range: Function:
0.14 mA* [Application dependant] Enter the low current value. This reference signal should correspond to the minimum reference
value, set in par. 3-02
Minimum Reference
. The value must be set at >2 mA in order to activate the
Live Zero Time-out Function in par. 6-01
Live Zero Timeout Function
.
6-13 Terminal 53 High Current
Range: Function:
20.00 mA* [Application dependant] Enter the high current value corresponding to the high reference/feedback set in par. 6-15
Terminal
53 High Ref./Feedb. Value
.
6-14 Terminal 53 Low Ref./Feedb. Value
Range: Function:
0.000 N/A* [-999999.999 - 999999.999 N/A] Enter the analog input scaling value that corresponds to the low voltage/low current set in
par. 6-10
Terminal 53 Low Voltage
and par. 6-12
Terminal 53 Low Current
.
6-15 Terminal 53 High Ref./Feedb. Value
Range: Function:
Application
dependent*
[-999999.999 - 999999.999 Refer-
enceFeedbackUnit]
Enter the analog input scaling value that corresponds to the maximum reference feedback value set
in par. 6-11
Terminal 53 High Voltage
and par. 6-13
Terminal 53 High Current
.
FC 300 Programming Guide 3 Parameter descriptions
MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
117
3
