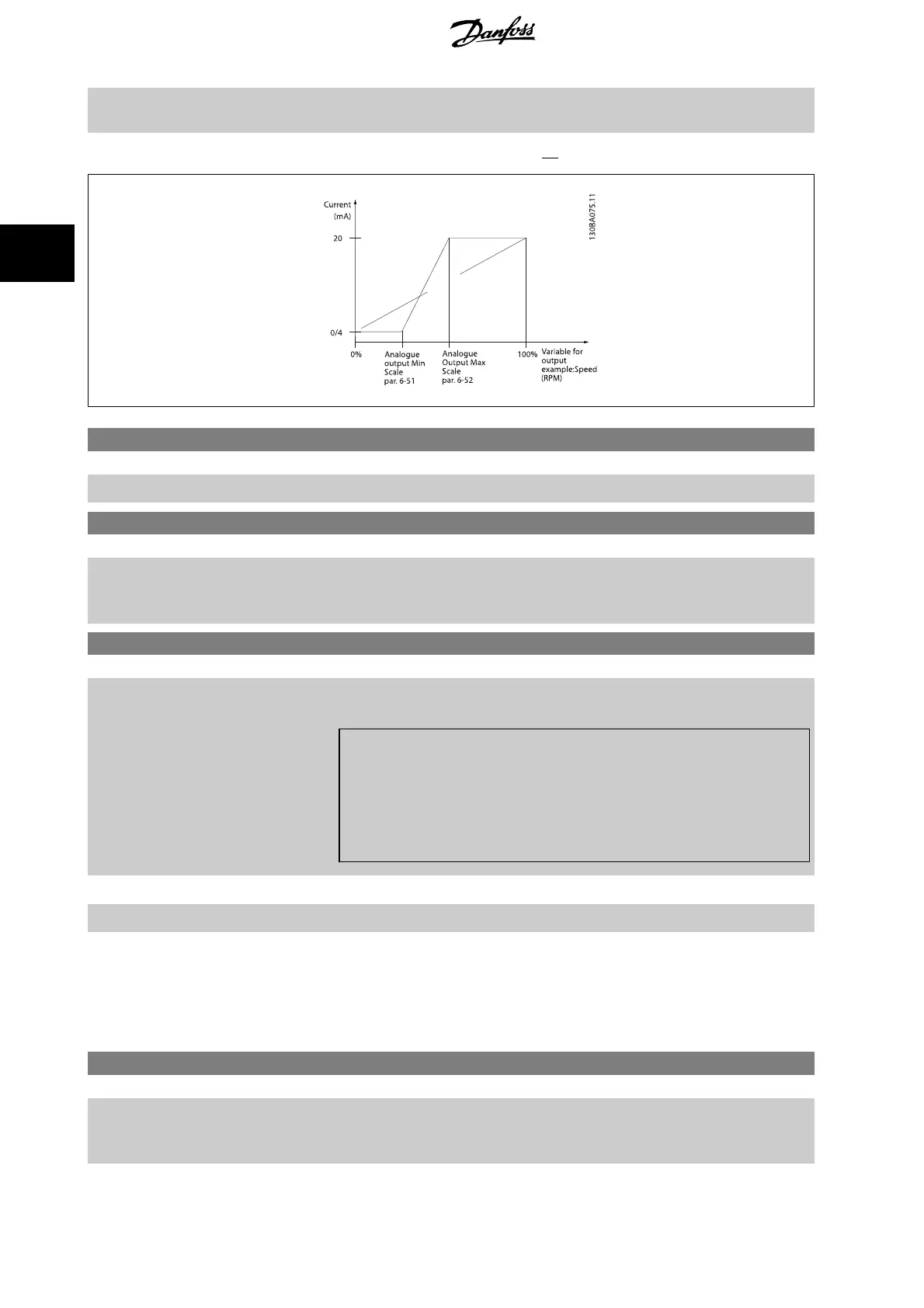

Danfoss VLT AutomationDrive FC 300 Programming Guide

value in the parameter, i.e. 50% = 20 mA. If a current between 4 and 20 mA is desired at maximum
output (100%), calculate the percentage value as follows:
20 mA / desired maximum current x 100 %
i . e . 10 mA :
20
10
x 100 = 200 %
6-53 Terminal 42 Output Bus Control
Range: Function:
0.00 %* [0.00 - 100.00 %] Holds the level of Output 42 if controlled by bus.
6-54 Terminal 42 Output Timeout Preset
Range: Function:
0.00 %* [0.00 - 100.00 %] Holds the preset level of Output 42.
In case of a bus timeout and a timeout function is selected in par. 6-50
Terminal 42 Output the
output will preset to this level.
6-55 Terminal 42 Output Filter
Option: Function:
The following readout analogue parameters from selection in par. 6-50 Terminal 42 Output have a
filter selected when par. 6-55
Terminal 42 Output Filter is on:
Selection 0-20 mA 4-20 mA
Motor current (0 - I
max
) [103] [133]
Torque limit (0 - T
lim
) [104] [134]
Rated torque (0 - T
nom
) [105] [135]
Power (0 - P
nom
) [106] [136]
Speed (0 - Speedmax) [107] [137]
[0] * Off Filter off
[1] On Filter on
3.8.8 6-6* Analog Output 2 MCB 101
Analog outputs are current outputs: 0/4 - 20 mA. Common terminal (terminal X30/8) is the same terminal and electrical potential for analog common
connection. Resolution on analog output is 12 bit.
6-60 Terminal X30/8 Output
Option: Function:
Select the function of Terminal X30/8 as an analog current output. Depending on the selection the
output is either a 0-20 mA or 4-20 mA output. The current value can be read out in LCP in
par. 16-65
Analog Output 42 [mA] .
3 Parameter descriptions FC 300 Programming Guide
122 MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
