Danfoss VLT AutomationDrive FC 361 Programming Guide

Another easy way of commissioning the frequency
converter is by using the smart application set-up (SAS),
which can also be found by pressing [Quick Menu]. To set
up the applications listed, follow the instructions on the
successive screens.
The [Info] key can be used throughout the SAS to see help
information for various selections, settings, and messages.
The following 3 applications are included:
•
Mechanical brake.
•
Conveyor.
•
Pump/fan.
The following 4 eldbusses can be selected:
•
PROFIBUS.
•
PROFINET.
•
DeviceNet.
•
EtherNet/IP.
NOTICE
The frequency converter ignores the start conditions
when SAS is active.
NOTICE
The smart set-up runs automatically on the rst power-
up of the frequency converter or after a reset to factory
settings. If no action is taken, the SAS screen automat-
ically disappears after 10 minutes.

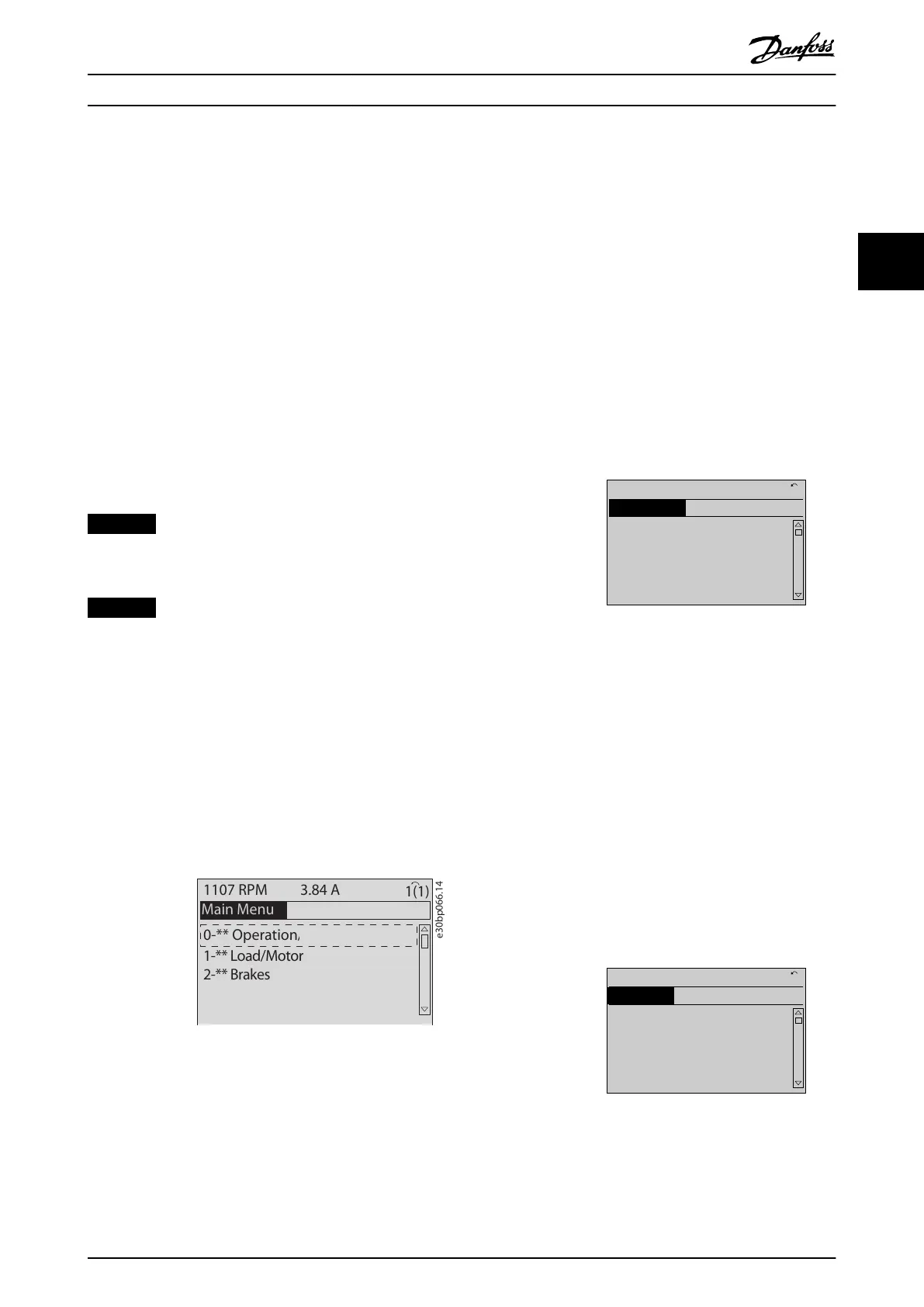

3.1.8 Main Menu Mode
Press [Main Menu] to enter the main menu mode. The
readout in Illustration 3.14 appears on the display.
The middle and bottom sections in the display show a list
of parameter groups, which can be selected by toggling
the [
▲
] and [
▼
] keys.
e30bp066.14
0-** Operation/Display
1-** Load/Motor
2-** Brakes
1107 RPM 3.84 A
Main Menu
1(1)
3-** References/Ramps
Illustration 3.14 Main Menu Mode
Each parameter has a name and number, which remain the
same regardless of the programming mode. In the main
menu mode, the parameters are divided into groups. The
rst digit of the parameter number (from the left) indicates
the parameter group number.
All parameters can be changed in the Main Menu.
However, depending on the conguration
(parameter 1-00 Conguration Mode), some parameters can
be hidden. For example, open loop hides all the PID
parameters, and other enabled options make more
parameter groups visible.
3.1.9 Parameter Selection
In the main menu mode, the parameters are divided into
groups. Select a parameter group with the navigation keys.
After selecting a parameter group, select a parameter with
the navigation keys.
The middle section on the display shows the parameter
number and name, and the selected parameter value.
130BP067.10
740RPM
0 -01 Language
[0] English
10.64A 1 [1]
0-0
*
Basic Settings
Illustration 3.15 Parameter Selection
3.1.10 Changing Data
The procedure for changing data is the same in the quick
menu mode and the main menu mode. Press [OK] to
change the selected parameter.
The procedure for changing data depends on whether the
selected parameter represents a numeric data value or a
text value.
3.1.11 Changing a Text Value
If the selected parameter is a text value, change the text
value with the [
▲
] [
▼
] keys.
Place the cursor on the value to save and press [OK].
130BP068.10
740RPM
0 -01 Language
[0] English
10.64 A 1 [1]
0-0
*
Basic Settings
Illustration 3.16 Changing a Text Value
Programming Programming Guide
MG06J202 Danfoss A/S © 03/2019 All rights reserved. 19
3 3
