0-10 Active Set-up
Option: Function:
Select the set-up to control the
frequency converter functions.
[0] Factory setup Cannot be changed. It contains the
Danfoss data set and can be used
as a data source when returning
the other set-ups to a known state.
[1] * Set-up 1 [1] Set-up 1 to [4] Set-up 4 are the 4
separate parameter set-ups within
which all parameters can be
programmed.
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
[9] Multi Set-up Remote set-up selections using
digital inputs and the serial
communication port. This set-up
uses the settings from
parameter 0-12 This Set-up Linked to.
Stop the frequency converter
before making changes to open
and closed-loop functions.
Use parameter 0-51 Set-up Copy to copy a set-up to 1 or all
other set-ups. Stop the frequency converter before
switching between set-ups where parameters marked not
changeable during operation have dierent values. To avoid
conicting settings of the same parameter within 2
dierent set-ups, link the set-ups together using
parameter 0-12 This Set-up Linked to. Parameters which are
not changeable during operation are marked FALSE in the
parameter lists in chapter 5 Parameter Lists.
0-11 Edit Set-up
Option: Function:
Select the set-up to be edited (that
is programmed) during operation;
either the active set-up or 1 of the
inactive set-ups.
[0] Factory setup Cannot be edited but it is useful as
a data source to return the other
set-ups to a known state.
[1] * Set-up 1 [1] Set-up 1 to [4] Set-up 4 can be
edited freely during operation,
independently of the active set-up.
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
[9] Active Set-up Can also be edited during
operation. Edit the selected set-up
from a range of sources: LCP, FC
RS485, FC USB, or up to 5 eldbus
sites.
130BA199.10
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
P 0-11
P 0-11
P 0-11
P 0-11
Set-up
Set-up
Set-up
Set-up
PLC Fieldbus

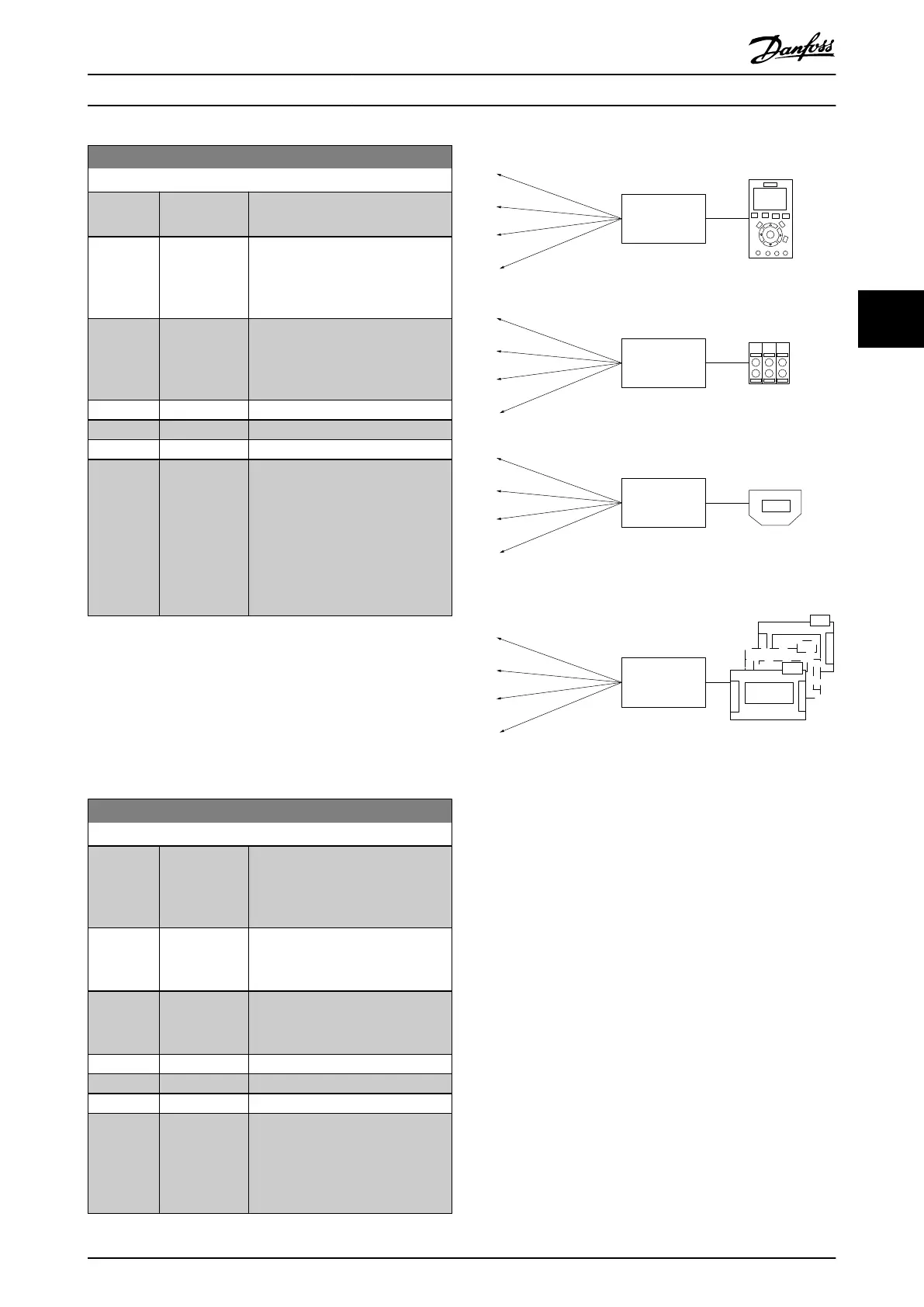

Illustration 4.1 Edit Set-up
Parameter Descriptions Programming Guide
MG06J202 Danfoss A/S © 03/2019 All rights reserved. 25
4 4
