Danfoss VLT FC Series Service Guide

130BC569.10
2
4
1
4
2
3
2
4
4
8
4
8
4
7
4
8
2
4
4
8
2
4
4
8
1 DC(+) plate stando
2 DC(+) plate screw
3 Midplate 1 stando
4 Midplate 1 screw
5 Midplate 2 stando
6 Midplate 2 screw
7 DC(-) plate stando
8 DC(-) plate screw

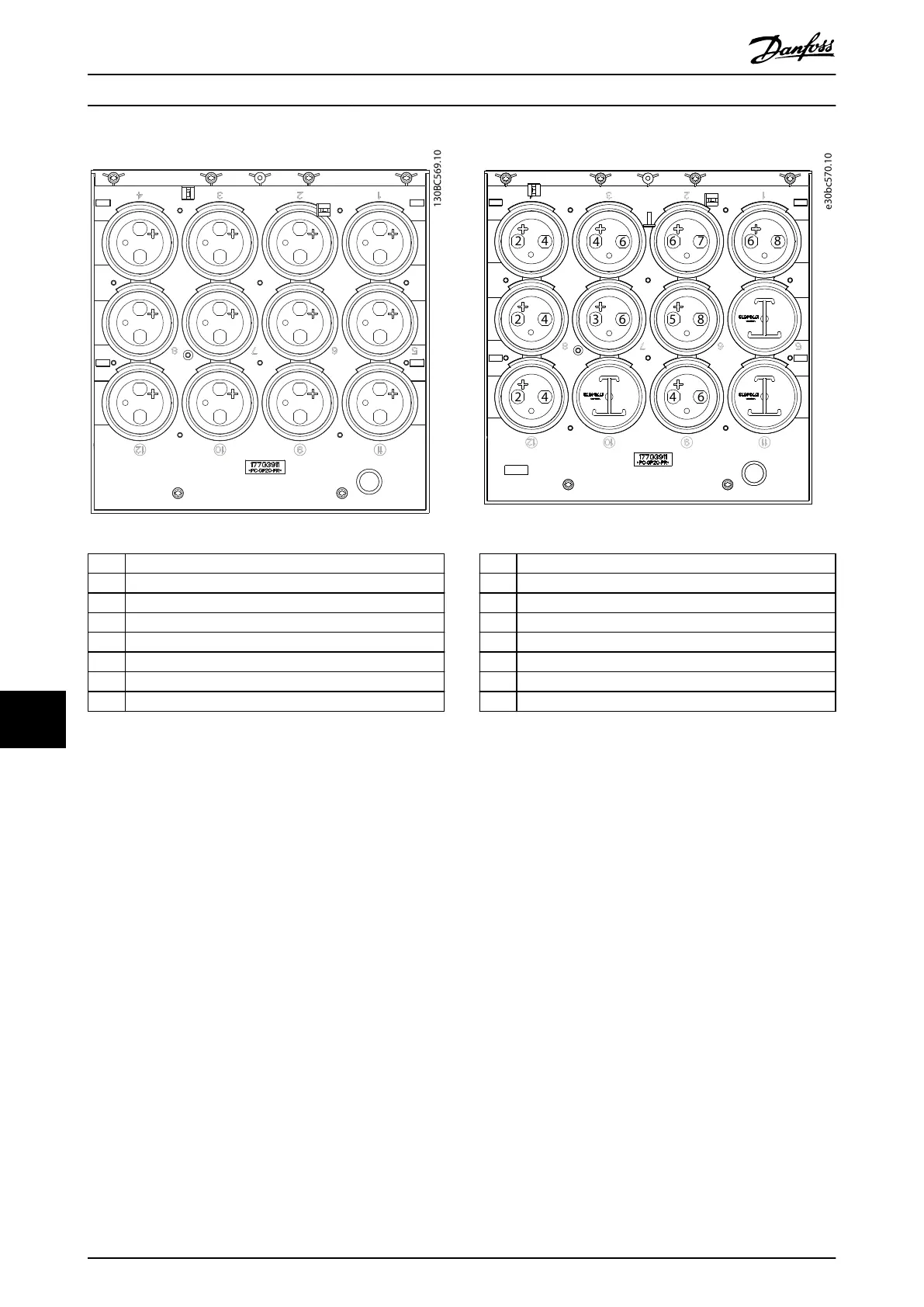

Illustration 11.19 Standard DC Cap Bank with 12 Capacitor
Layout
e30bc570.10
2
4
4
6
6
7
6
8
2
4
3
6
5
8
2
4
4
6
1 DC(+) plate stando
2 DC(+) plate screw
3 Midplate 1 stando
4 Midplate 1 screw
5 Midplate 2 stando
6 Midplate 2 screw
7 DC(-) plate stando
8 DC(-) plate screw
Illustration 11.20 Standard DC Cap Bank with 9 Capacitor
Layout
D2h/D4h/D7h/D8h/J9 Unit Dis...
