Danfoss VLT series - Exploded View D1 Frame Size

VLT is a registered Danfoss trademark
Intro-4

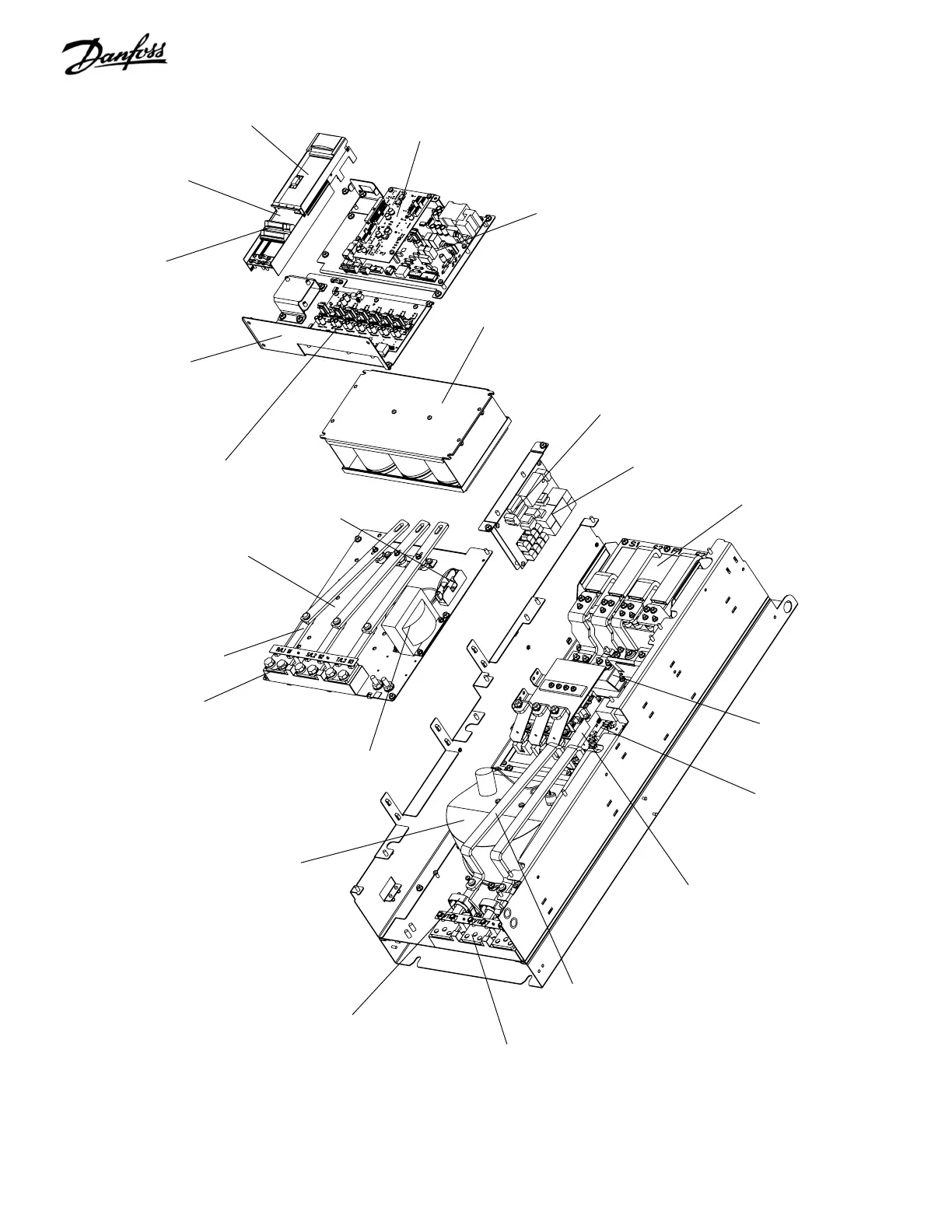

Exploded View D1 Frame Size
Control card cassette
Control card
PCA1
Interface card
PCA 2
Capacitor bank assembly
CBANK1 + PCA9
Capacitor bank cover plate
IGBT gate driver card
PCA5
Input terminal mounting
plate assembly
Main AC power
input terminals
TB1
Fan transformer
TR1
AC input bus bar
IGBT output bus bar
Fan assembly
F1 + C1 +CBL11
SCR/Diode module
SCR 1, 2, 3
Output motor terminals
TB2
Current sensor
L2, L3, L4
Soft charge card
PCA 11
Power card
PCA 3
IGBT module
IGBT 1
DC inductor
L1
Control input terminals
Fan fuse
FU4
Soft charge fuses
Soft charge module
R1 + CBL26
