Input:
Each System 9700 has a connection for mains input and auxiliary power. Those are combined in terminal
blocks, behind the front panel in bottom of the rack. Only one 3-hase mains input supply cable is needed:

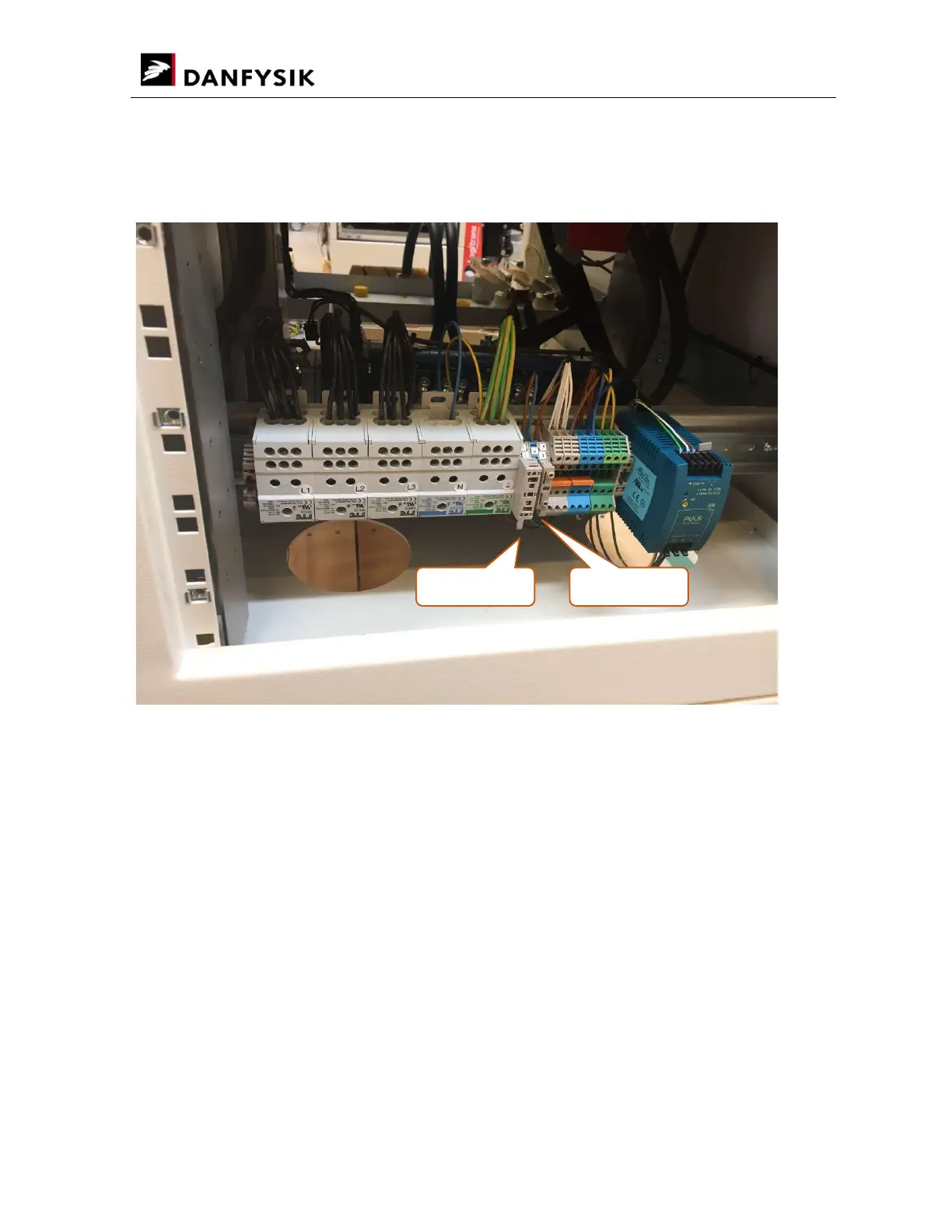

Picture is for indication only, and will might differ from actual supply.
From left to right: L1, L2, L3, Neutral, Ground
If 1-6 units are mounted in the rack, the terminal are designed for 10-70mm2 cable.
If 7-9 units are mounted in the rack, the terminals are designed for 35-120mm2 cable.
Cables are to be dimensioned according to national standards.
Fuses:
F1: 10A slow blow 6,3x32mm – used for auxiliary power to the System 9700 units.
P3: 1A slow blow 5x20mm – used for polarity switch
Fuse: F1 Fuse: P3
