MENU G – NETWORK CONFIG
MENU G allows selection of BMS protocol. (Service Level password is required for entry)
Oncepasswordhasbeenentered,presstheUPorDOWNkeyuntil“G.NetworkCong”appears
and is highlighted. Press the ENTER key.

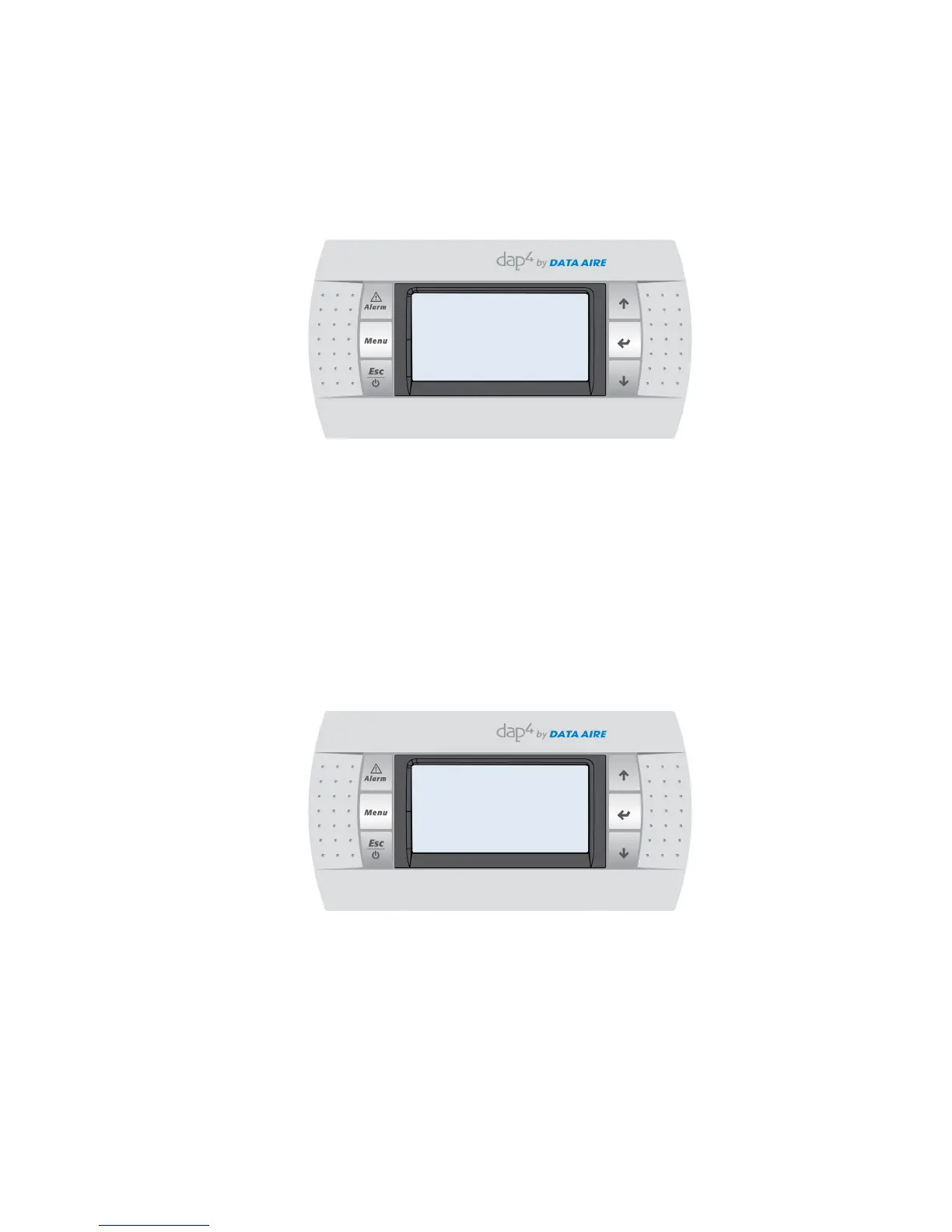

The following will be displayed (values are for reference only):
Only the protocol can be changed. The selections are as follows:
LON, BACNET, PCOLOAD, MODBUS, MODEM, CAREL, N/A
Once the selection has been made, press the ENTER key and the cursor will move to the title
block.
Tomovetothenextscreen,presstheDOWNkey.
The following will be displayed (values are for reference only):
The address can be a value from 0 to 999
The available baud rates are: 1200, 2400, 4800, 9600, 19200
Once the selection has been made, press the ENTER key to move the cursor to the title block.
▼PresstheEsckeytoreturntotheMainMenu.Scrolltothenextmenutobeviewedishigh-
lighted or press the Esc again to return to the normal operating mode.
Bms Configuration
BMS Port 1
Protocol: MODBUS
Bms Configuration
BMS Port 1
Address 1
Baud Rate 19200
