Data Aire dap 4 User Manual

46•dap4UserManual
▼PresstheDOWNkeytoviewthenextscreen:
The following will be displayed (values are for reference only):
Alarm Output Function 5 - See sample screen shot at end of section
Alarm 1 Alarm 2 Alarm 3 Alarm 4
Heat Inhbt Yes or No Yes or No Yes or No Yes or No
Filter Yes or No Yes or No Yes or No Yes or No
Alm SW 1 Yes or No Yes or No Yes or No Yes or No
Alm SW 2 Yes or No Yes or No Yes or No Yes or No
Alm SW 3 Yes or No Yes or No Yes or No Yes or No
Alm SW 4 Yes or No Yes or No Yes or No Yes or No
Once a selection or selections have been made, move the cursor to the title block by pressing the
ENTER key
▼PresstheDOWNkeytoviewthenextscreen:
The following will be displayed (values are for reference only):
Alarm Output Function 6 - See sample screen shot at end of section
Alarm 1 Alarm 2 Alarm 3 Alarm 4
Manl Ovrd Yes or No Yes or No Yes or No Yes or No

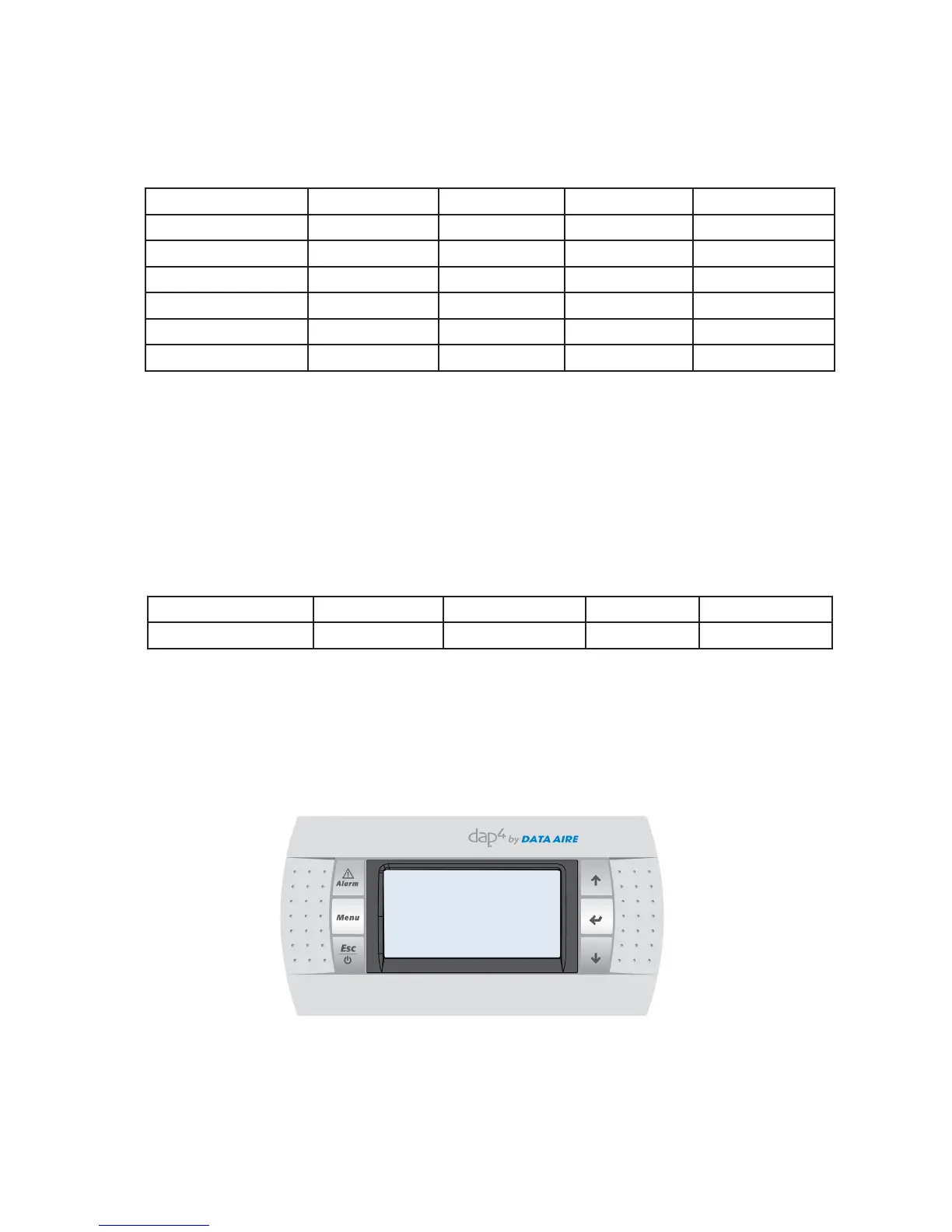

Sample of screen shots for Alarm Output Function 1-6.
Alarm Output Function
#1 #2 #3 #4
Heat Inhbt y N N N
Filter N Y N N
Alm SW1 N N Y N
Alm SW2 N N N Y
Alm SW3 Y N N N
Alm SW4 N Y N N
