MENU B - SETPOINTS
MENU B allows viewing and changing of Setpoints (Service Level password is required for entry)
Press the UP or DOWN key until “B. Setpoint” appears and is highlighted. Press the ENTER key.
Use the UP or DOWN key to scroll through the screens. Menu B has two screens.

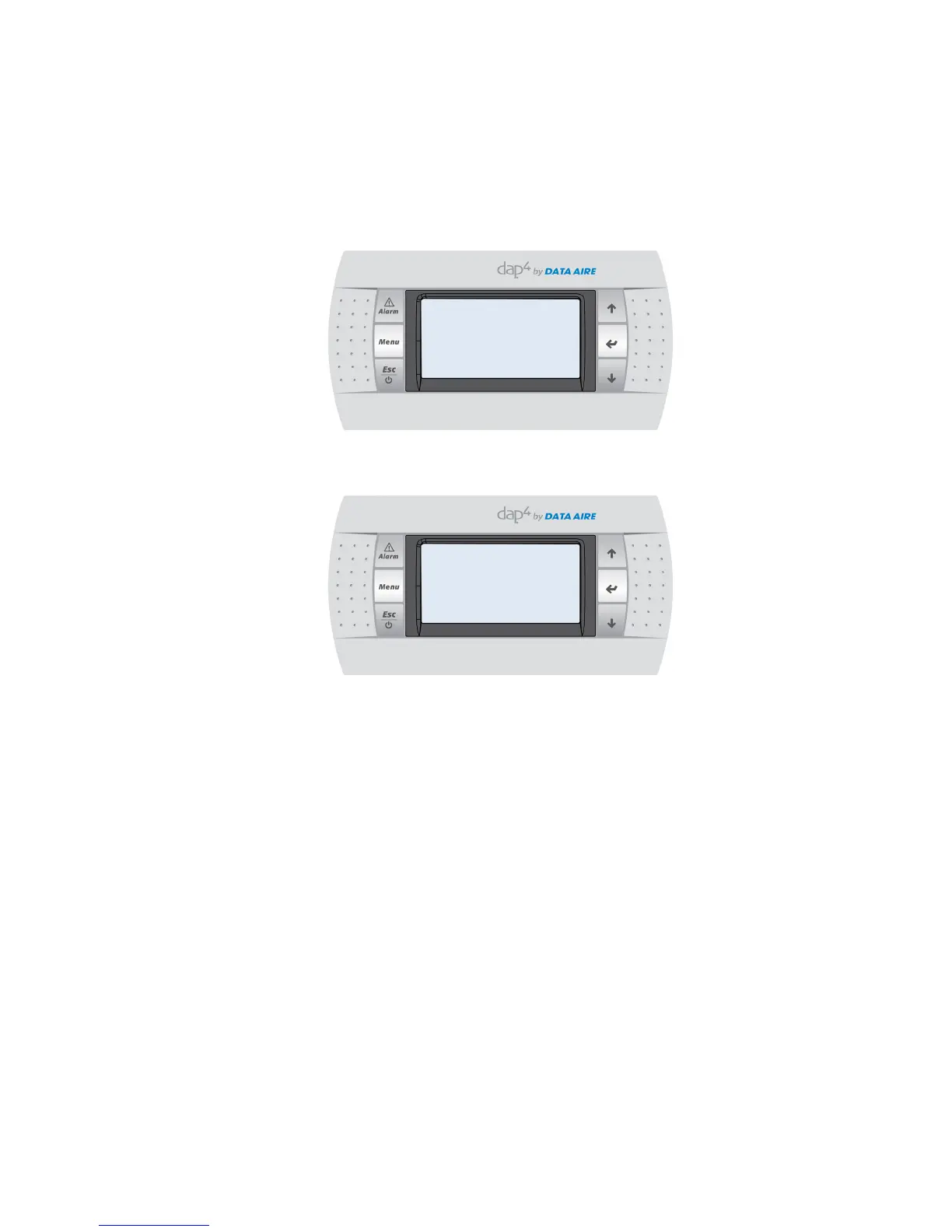

ThefollowingwillappearontherstMenuBscreen(valuesareforreferenceonly):
Press the UP or DOWN key. The following will appear on the screen:
FACTORY SETTINGS
TEMPERATURE: ............. 72.0°F (Temperature range for DX: 65 - 85°F)
..................................................... (Temperature range for CW: 65 - 105°F)
DEADBAND: ...................... 2.0°F (Temperature Deadband range: 2 - 5°F)
STAGE TO STAGE: ........... 0.3°F (Stage-to-Stage range: 0.3 - 3.0°F)
ENGY SVR SETPT: ......... 50.0°F (Setpoint range: 40.0 - 60.0°F)
DEADBAND: ...................... 1.0°F (Deadband range: 1.0 - 5.0°F)
CHANGE OVER: ................ 2.0°F (Change over range: 2.0 - 5.0°F)
HUM SETPOINT: .................50% (Humidity range: 25 - 70%)
HUM DEADBAND: .................3% (Humidity deadband range: 1 - 15%)
If Humidity Anticipation is turned ON in humidity setting under Menu J – Factory Settings, the
following page appears for reference (cannot be edited):
Humidity Anticipation
HUM SETPOINT: .....................50%
TEMP OFFSET: .........................2%
ANTICIPATION SP: .................48%
Setpoints
TEMP SETPOINT 72.0
o
F
TEMP DEADBAND: 2.0
o
F
STAGE to STAGE: 0.3
o
F
ENGY SVR SETPT: 50.0
o
F
DEADBAND: 1.0
o
F
CHANGE OVER: 2.0
o
F
Setpoints
HUM SETPOINT: 50%
HUM DEADBAND: 3%
To Next Page
