MENU H - CALIBRATE SENSORS
MENU H allows calibration of the unit installed sensors. (Service Level password is required for
entry).
Return air temperature and humidity sensors are standard with Data Aire units. Dependent on
options and equipment type, a discharge air and chilled water sensor may be installed in the unit.
Press the UP or DOWN key until “H. Calibrate Sensors” appears and is highlighted. Press the
ENTER key.

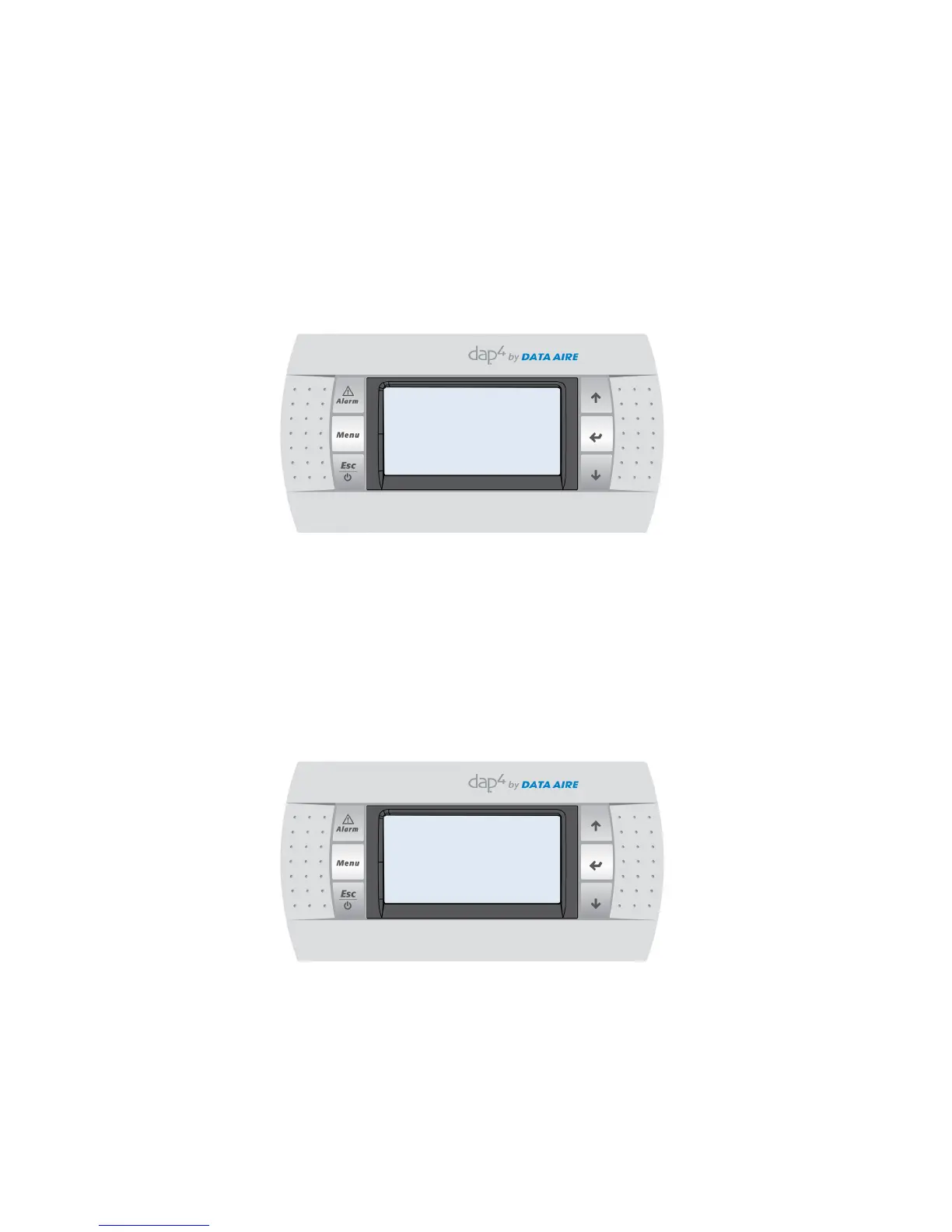

The following will be displayed on display module (values are for reference only):
▼PresstheENTERkeytomovethecursor.ThecursorwillashattheOffset.Bypressingthe
UP (to increase) or DOWN (to decrease) keys the Offset can be changed.
Once the change has been made, press the ENTER key and the cursor will move to the title block
of the screen. The Offset change is now entered and stored.
Tomovetothenextscreen,presstheDOWNkey.
The following will be displayed (values are for reference only):
▼PresstheENTERkeytomovethecursor.ThecursorwillashattheOffset.Bypressingthe
UP (to increase) or DOWN (to decrease) keys the Offset can be changed.
Once the change has been made, press the ENTER key and the cursor will move to the upper
portion of the screen. The Offset change is now entered and stored.
Tomovetothenextscreen,presstheDOWNkey.
Analog Input
Humidity Sensor
Input B01
Offset xx.x
Value xx.x
Analog Input
Return Air Temp Sensor
Input B04
Offset xx.x
Value xx.x
