47•dap4UserManual
MENU L - Congure I/O (factory use only)
MenuLisafactoryforconguringtheunit’sdigitalinputsandtheunit’sanaloginputsandoutputs.
This requires the Factory Level password and entry should be limited to Data Aire factory
and service personnel.
▼PresstheUPorDOWNkeyuntil“L.CongureI/O”appearsandishighlighted.Pressthe
ENTER key.

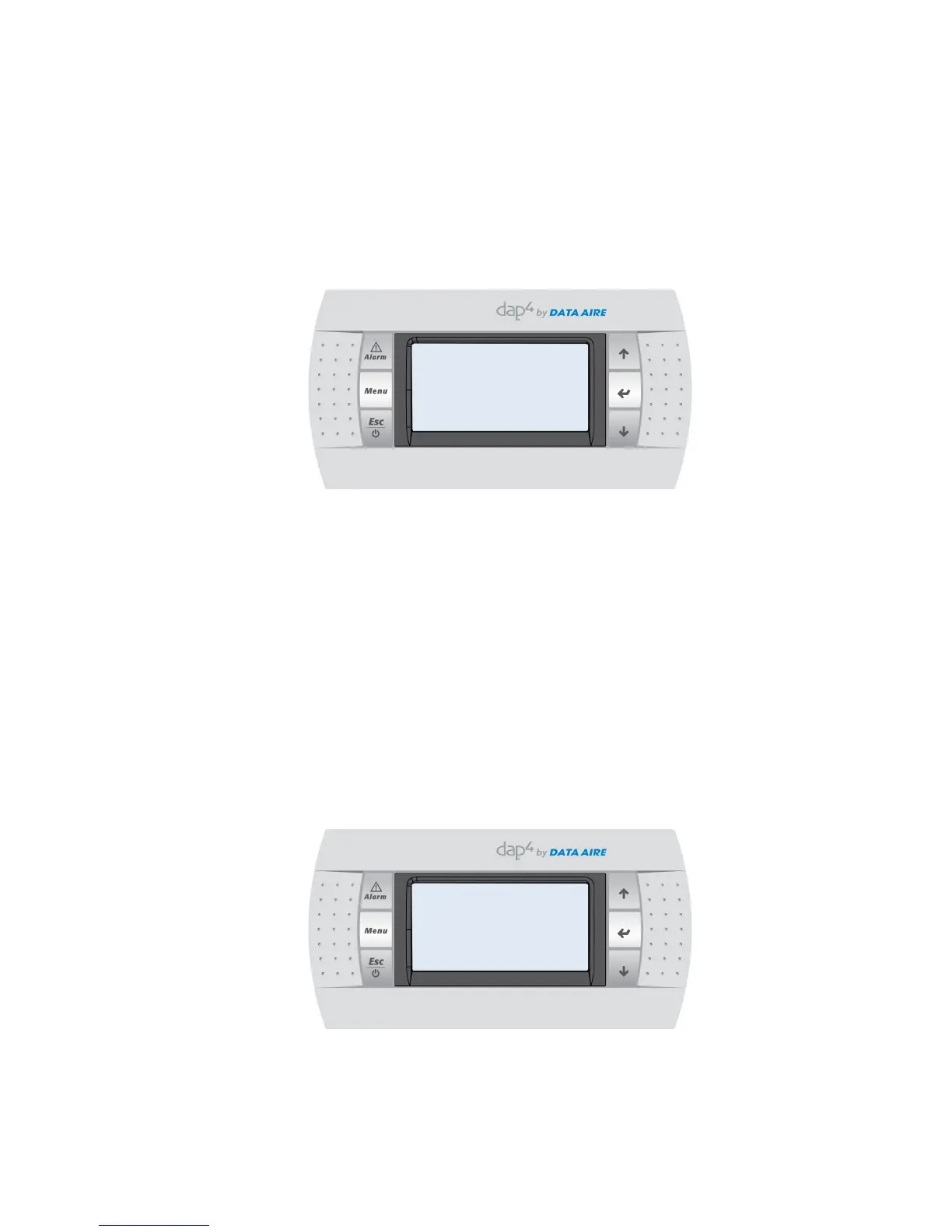

The following will be displayed (values are for reference only):
Move the cursor by pressing the ENTER key. Move the cursor to change the setting.
The following can be changed by pressing the DOWN key:
Channel – Open or Closed
Delay – the range is 0 – 999 seconds
Status – Open or Closed (Status can’t be changed.)
Once a selection or selections have been made, move the cursor to the title block by pressing the
ENTER key
▼PresstheDOWNkeytoviewthenextscreen:
The following will be displayed (values are for reference only):
Move the cursor by pressing the ENTER key. Move the cursor to change the setting.
Digital Input
C1 LOW PRESSURE SW
Channel ID2
Action: Open
Delay: 5s
Status: Open
Digital Input
C1 HI PRESSURE SW
Channel ID1
Action: Open
Delay: 5s
Status: Open
