Example - elevator
The goal is to allow users only to exit at the allowed floor.
Then tenant usees the transponder to activate only the switch for his floor.
In the cabin of the elevator the RFID-reader is installed. The Datafox-Device is on the top of the
cabin.

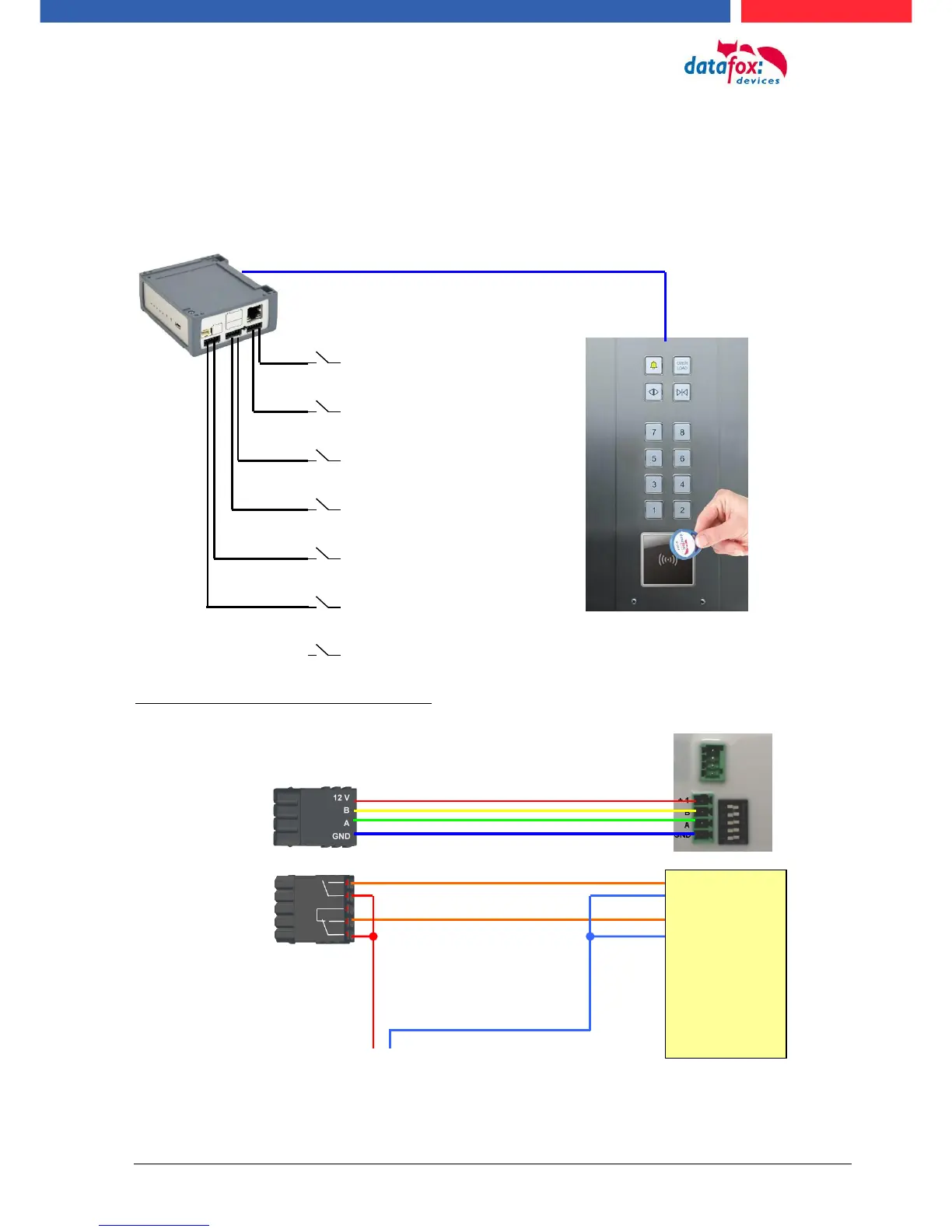

Wirering plan for the EVO-Access reader:
Relay for floor 1
- RS485 Bus to the reader in the cabin
Relais for floor 2
Relay for floor 3
Relay for floor 4
Relay for floor 5
Relay for floor 6
… Relay for floor 12
+ - max. 30V; 2A
Bus Nr. 1
EVO-access-reader
Connector for
RS485 Bus
On the Mod-
ulplace 1
Relay 2 for floor
normaly close
Relay 1
With no/nc contact
Connector 5 poles
for 2 digital out
free potential
relay 2
relay 1
elevator con-
trol centre
