Handbuch Datafox EVO 3.5 Pure Seite 28 Datum: 06.08.2018 Version: 04.03.07.XX

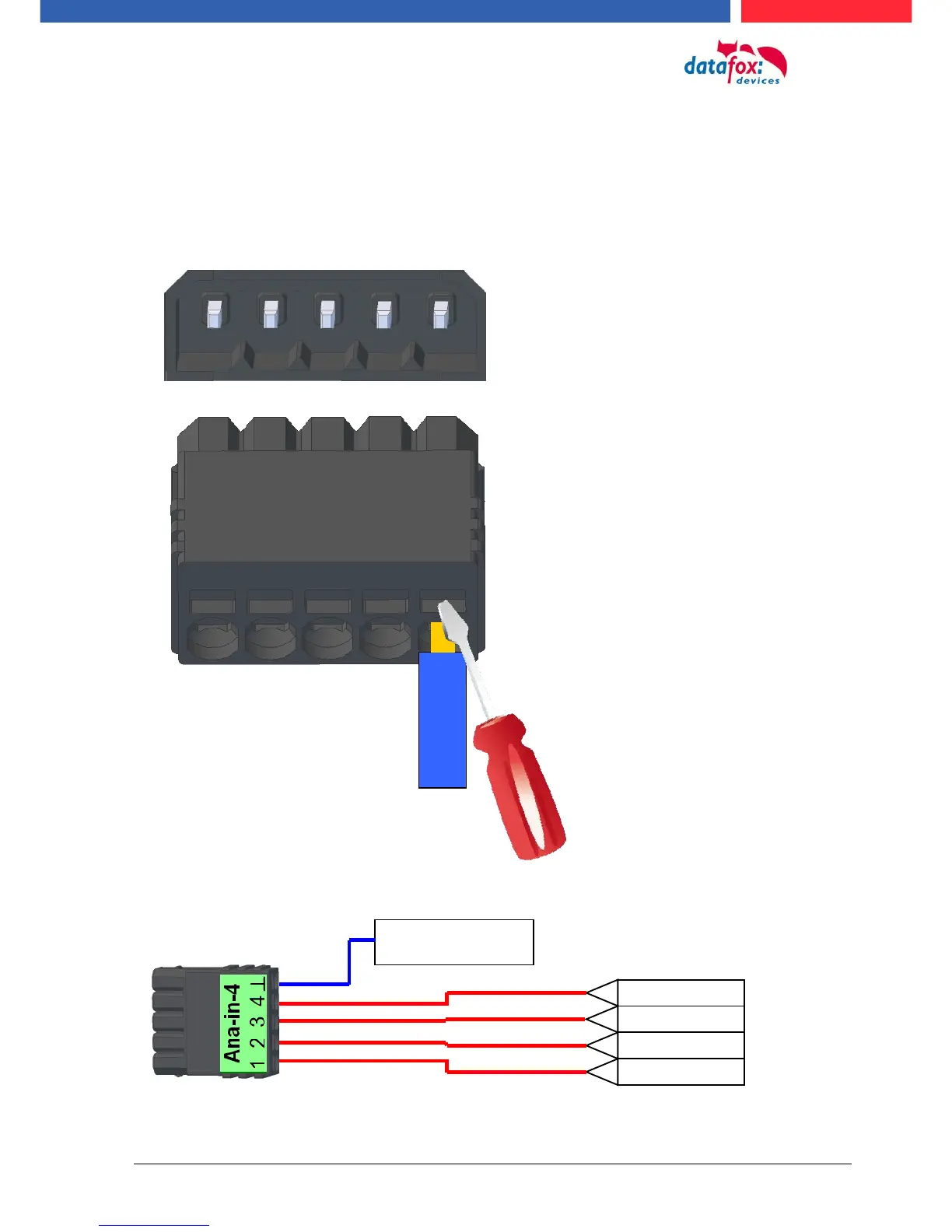

5.7.1.2. Connection of the individual modules
The connector / socket for the module always has the following assignment:
5.7.1.3. Analog inputs, 4 times analog IN
Socket on the device:
1
2
3
4
5
The plug can be inserted only in one direc-
tion and is therefore protected against re-
verse polarity.
plug
1
2
3
4
5
To loosen the cable, use a small screw-
driver. Solid wires can be loosened by
twisting back and forth on the wire and
plug.
+ 0-10 V Signal 4
+ 0-10 V Signal 3
+ 0-10 V Signal 2
+ 0-10 V Signal 1
common ground;
GND / Ground
