5.13. Barcode Reader

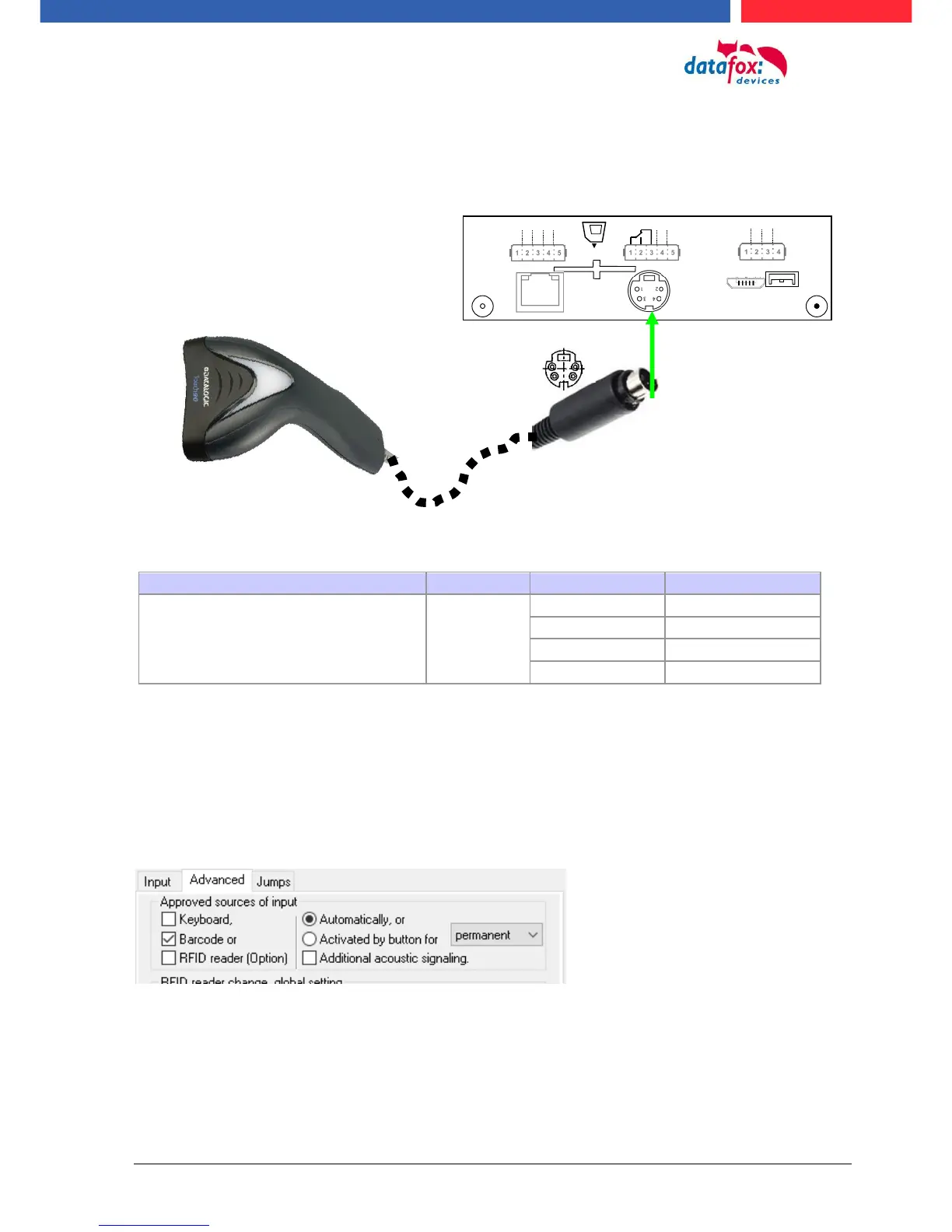

You can connect any barcode reader with a RS232 port to the EVO 3.5 Pure. Observe the following
pin assignment of the RS232 interface.
Description
Modulplace
PIN
Function
RS 232
Mini-DIN M004
Here an
example on
M7
1
TXD
2
RXD
3
+ 5 V
4
Ground / GND
Barcodes that are read in can be up to 255 characters long. This is supported by the field function
"Normal (value transfer from ID card, etc ...)".
From this 255 characters can you coppy maximum 60 in a global variable.
More information about cut a value find you in the manual DatafoxStudioIV in the chapter "Normal
(value transfer from ID card, etc ...)".
Setting in the DatafoxStudioIV:
