5.9.5.1. Installation Variants
A Door without a Separate Reader
The EVO 3.5 Pure is access scanner, access master and door-opener at the same time. This solu-
tion should only be used in protected areas so that the door opening relay cannot be manipulated.
.
RS232/485
TCP/IP
GSM/GPRS
WLAN
!
Caution:
The installation and connection of the TMR33 module may only be carried out by a qual-
ified specialist. Avoid switching the connecting terminal (reverse polarity).

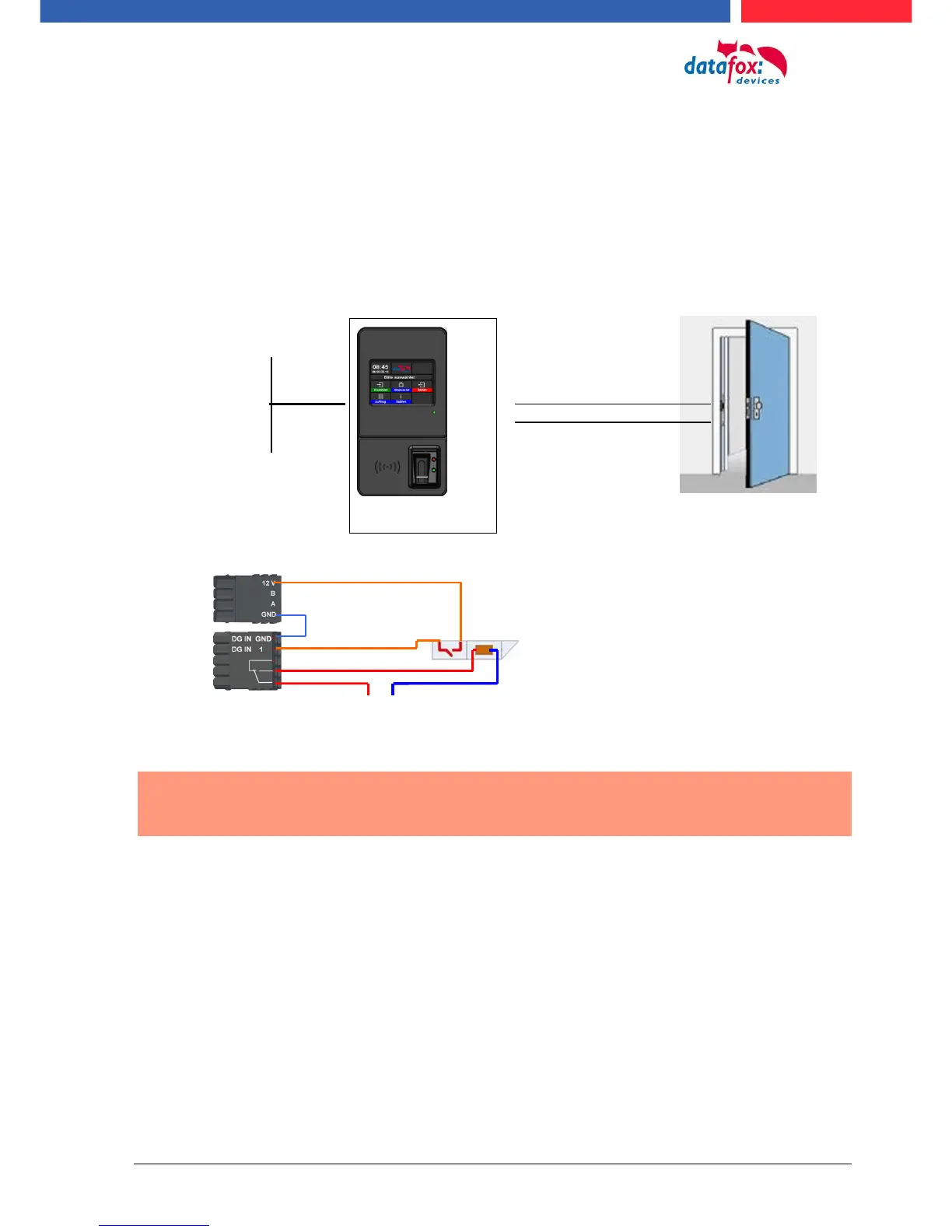

Relay to the door
opener
Digital input for door
monitoring
+ -
max. 42V; 2A
power supply for door opener
