Datafox EVO 3.5 Pure - Times Digital out; Time Digital out 1 X Digital in; Times Digital in

Handbuch Datafox EVO 3.5 Pure Seite 29 Datum: 06.08.2018 Version: 04.03.07.XX
5.7.1.4. 2 times digital out

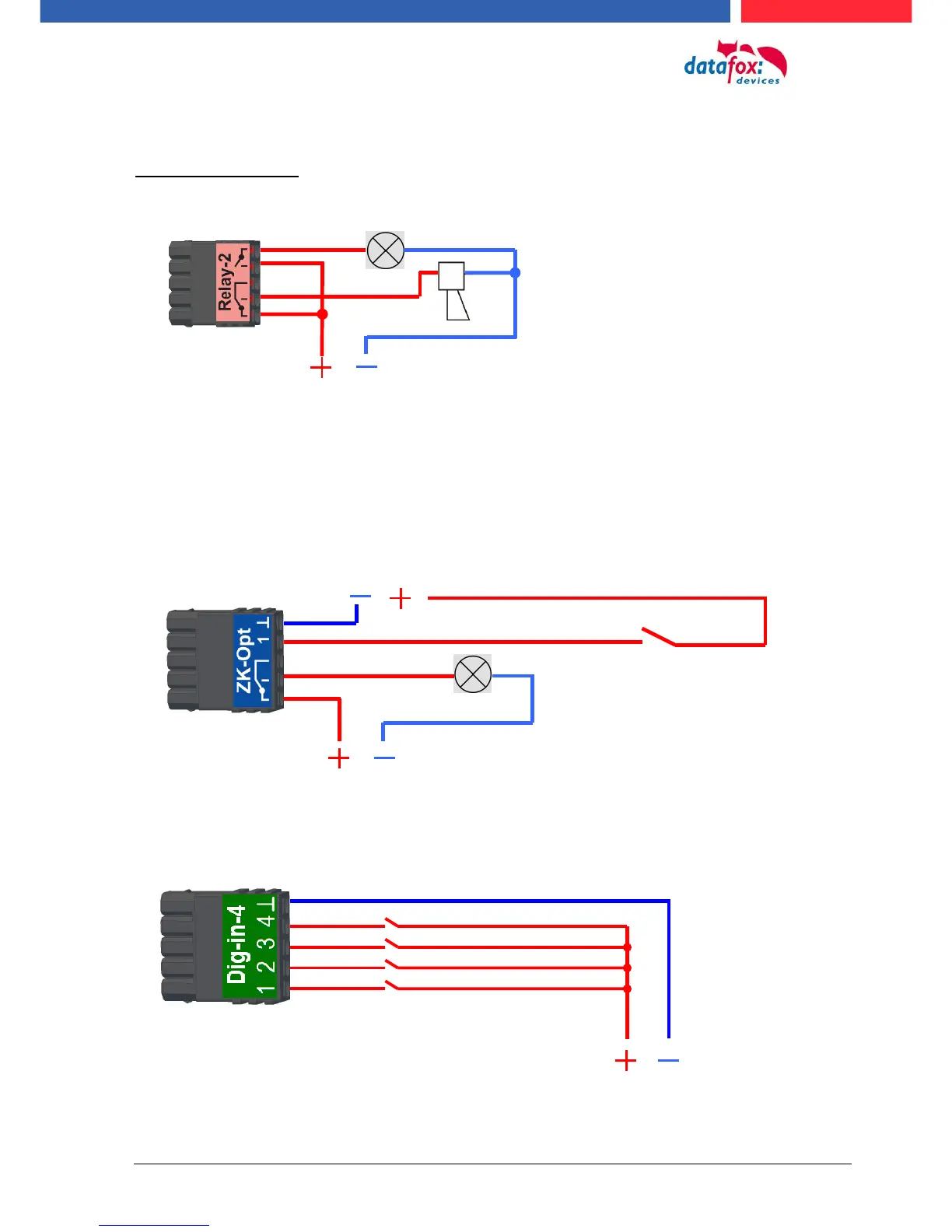

Connection example:
(Connection of a signal light and a signal horn via a potential-free contact):
5.7.1.5. 1 time digital Out 1x digital IN
Connectiom example (Connection of a signal light and a door contact):
5.7.1.6. 4 times digital IN
Connectiom example (Connection of 4 contacts):
max. 30V AC /DC
2A / 60W
max. 30V AC/DC / 2A / 60W
e.g .: Door contact
max. 30V
0 - 1,5 V Input logical 0
3,5 V - 30 V Input logical 1
e.g.: 4x digital in
max. 30V
0 - 1,5 V Input logical 0
3,5 V - 30 V Input logical 1
