5.9.7.3. Description of the table „Action2"

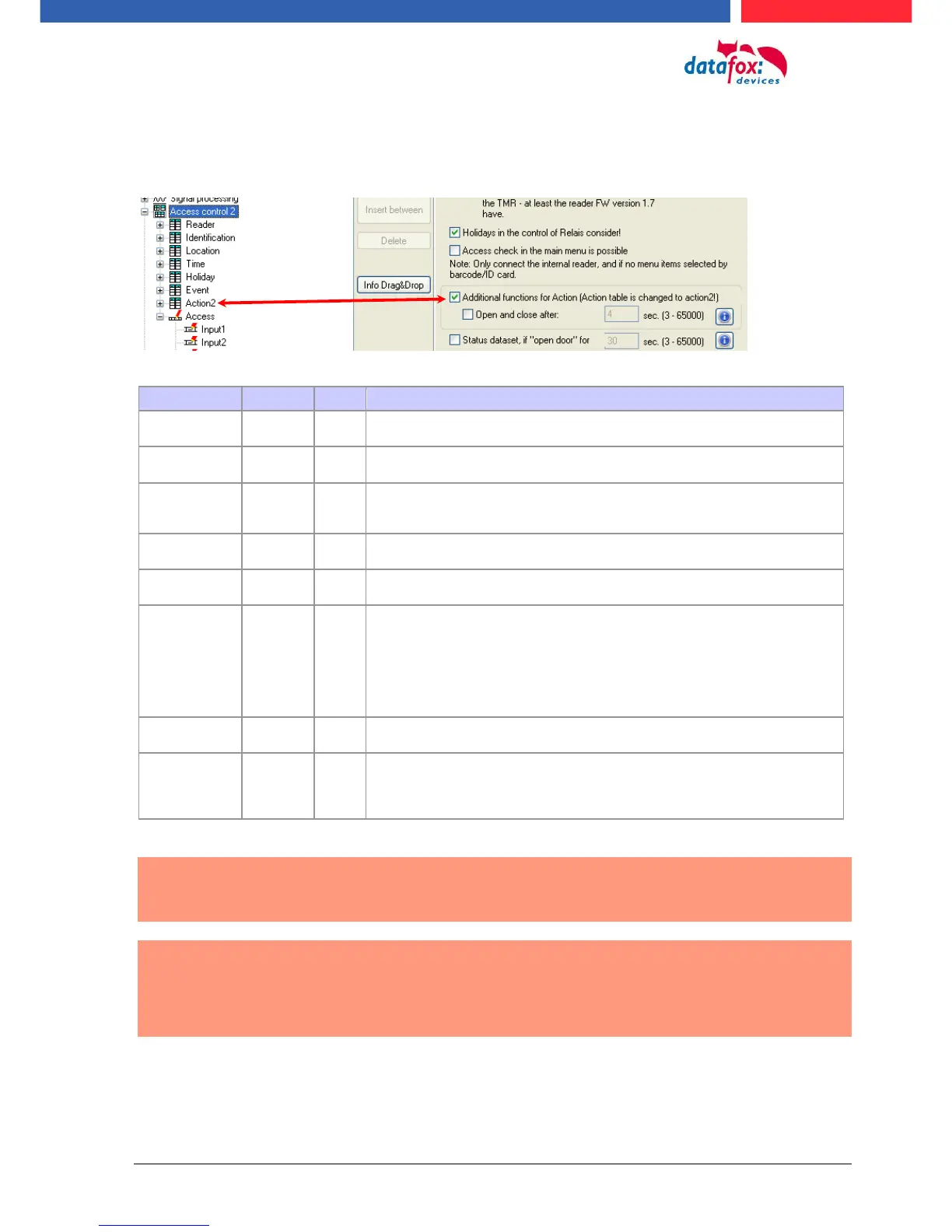

The switching from „Action“ to „Action2“ it’s a setting in the StudioIV.
Name
Data type
Length
Description
ID
Number
(int)
4
Action number, it can occur several times due to several actions that have to be
worked through.
RefGroup
Number
(int)
4
Only work this action for the listed Group.
0 = for all groups work this action.
RefTime
Number
(int)
4
Give a time, and only works this action to this time.
(0 = works ever)
! Not mixed with times in RefTimeRelais!
RefReader
Relais
Number
(int)
4
Reference to the list reader, action to switch a relay on this listed reader in table
reader.
PortOut
Number
(Byte)
1
Switch relay 1 or 2
Elapse
Number
(int)
6
Specifies the period of time a relay is switched
! The time is in seconds!
When (-1) is specified, the relays are reset directly.
With (0) the relays switch for the duration specified for the relay with RefTime.
"FRA" activates Free Access
"BLA" activates Blocked Access = permanent red signal
"STD" returns to Standard mode.= Deactivate from FRA or BLA
RefReaderLED
Number
(int)
4
This is a reference to the table Reader to switch the LED on other modules
RefTimeRelais
(nur für Auto-
matische
Zeitsteuerung)
Number
(int)
4
The time model indicates when the output may be switched. (0 = not used).
(Automatic time control)
! Action how here work with automatic times, be not mixed with action from the
access!
!
Caution:
By transferring the table "Action 2" to the unit, the table "action" is replaced. Thus, only
entries in the table "Action 2" will be considered.
!
Caution:
Would you like to continue working with the "action" table, the table "Action 2" may not
be transferred to the device.
A table "Action 2" has already been transferred to the device, it must be cleared by load-
ing a new setup.
