Handbuch Datafox EVO 3.5 Pure Seite 45 Datum: 06.08.2018 Version: 04.03.07.XX

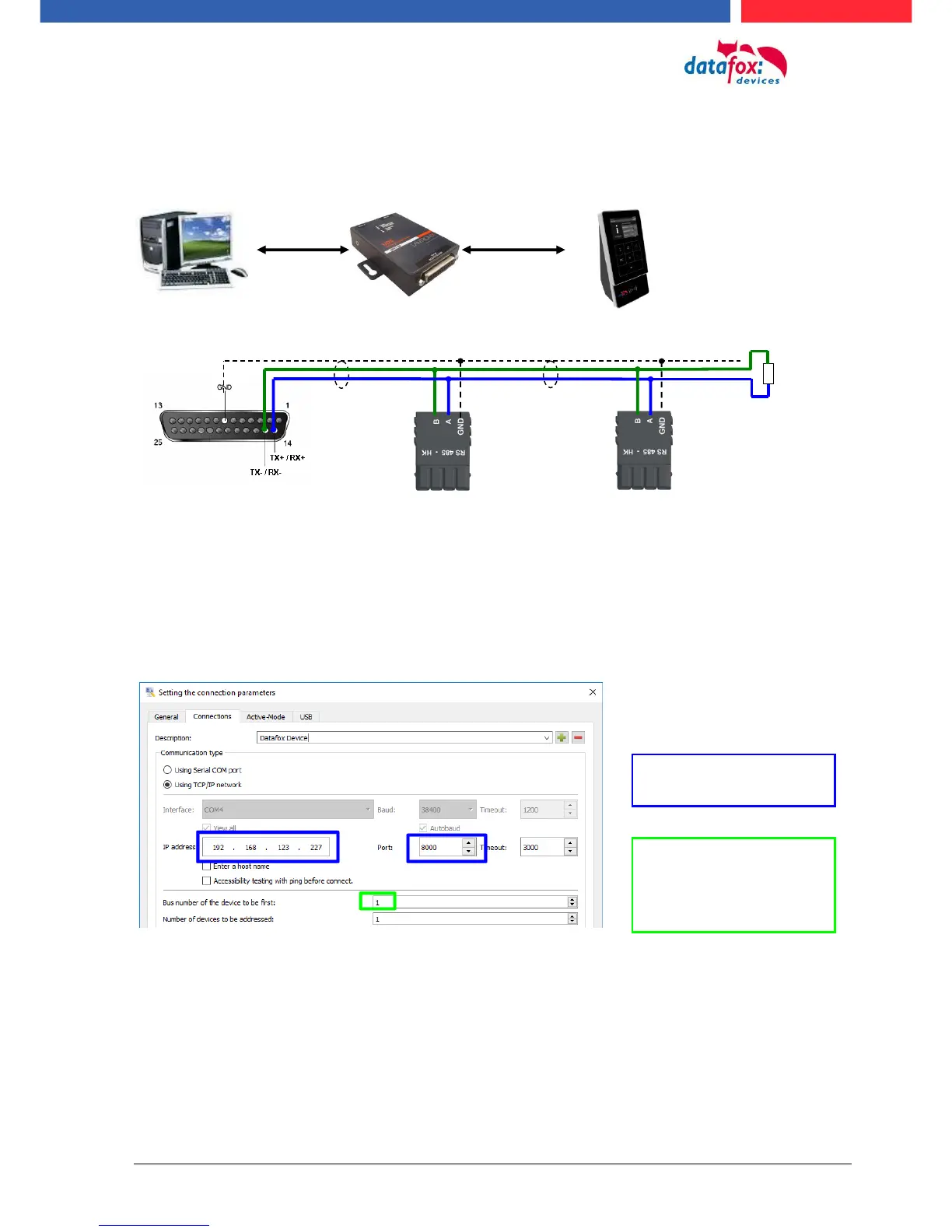

5.8.6.2. Connecting the Terminal via RS485 with a Comserver Lantronix
Setting for communication in the DatafoxStudioIV for connection via RS 485:
120 Ohm
plugr 4 Pol.
BUS A
BUS B
Pin 1 - GND
plug 4 Pol.
BUS A
BUS B
Pin 1 - GND
plug
Pin 15 - BUS B
Pin 14 - BUS A
Pin 7 - GND
TCP/IP
RS485
IP and Port must set in
the comserver.
Baudrate 38400 and
Busnumber are to set in
the device bios menu
