5.9.5. Access control with TS-Readers
The following hardware is available to set-up access control with TS TMR33 modules. The different
options can be combined with each other according to the hardware requirements of the single de-
vices.

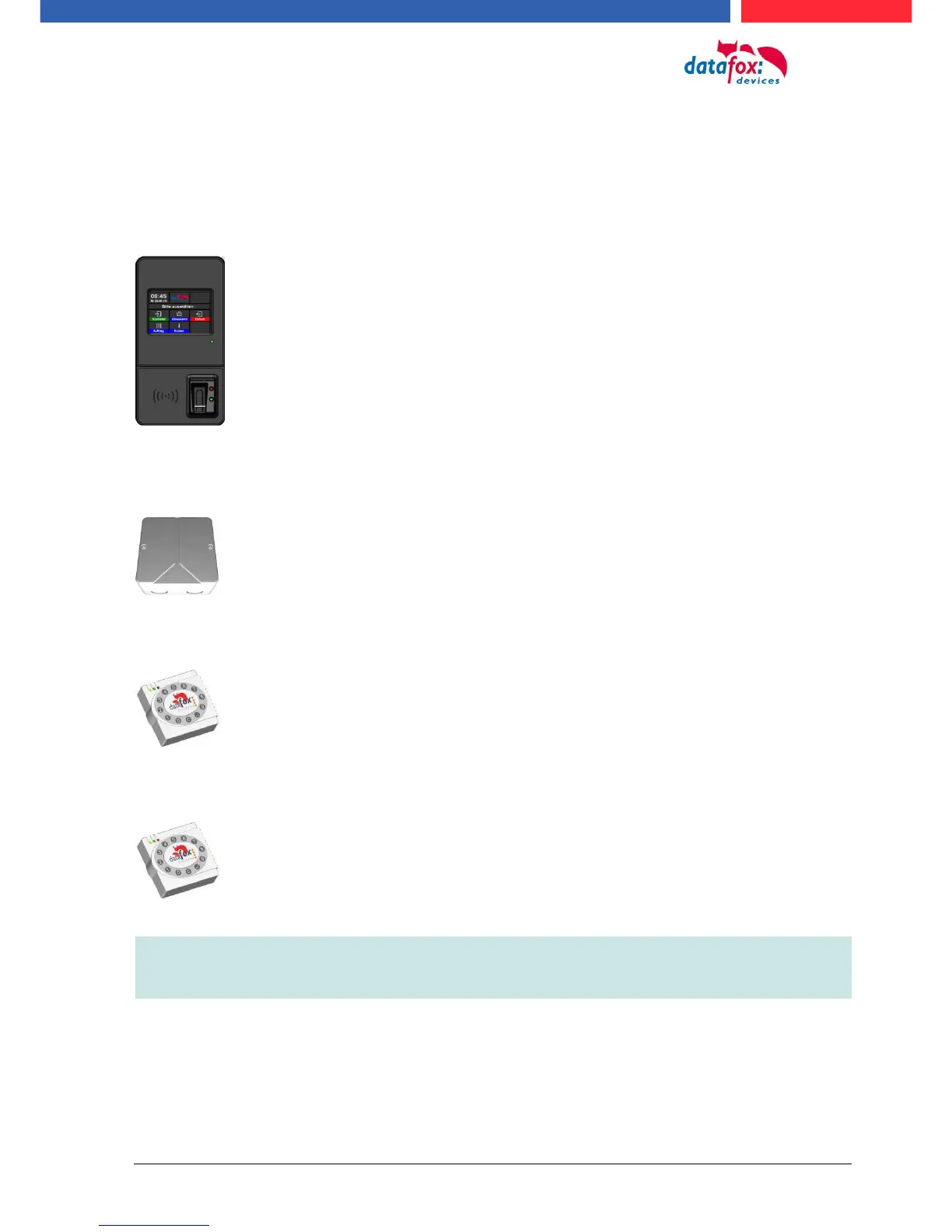

EVO 3.5 Pure
Opening module (TS TMR33-TM)
72 x 72 x 40 mm
Reader (TS TMR33-L)
80 x 80 x 25 mm
Reader and Opening Module (TS TMR33-LTM)
80 x 80 x 25 mm

Note:
The single modules are connected to a bus. DIP switch 5 sets whether the modules are to
communicate via RS232 or RS485.
The MasterIV device supports the opening of up to 8 doors.
The door module is offered as pure electronic component e.g. to build it in a
padres box, or in a housing for surface mounting with alarm control panel.
The reader can be ordered separately to connect it directly to a PC or another
access check. A connecting diagram and a description of the commands for
the activation are included.
The module set can be ordered separately to connect it directly to a PC or an-
other access check. A connecting diagram and a description of the commands
for the activation are included.
