5.4. Installation of the EVO 2.8 / 3.5 Pure Terminal

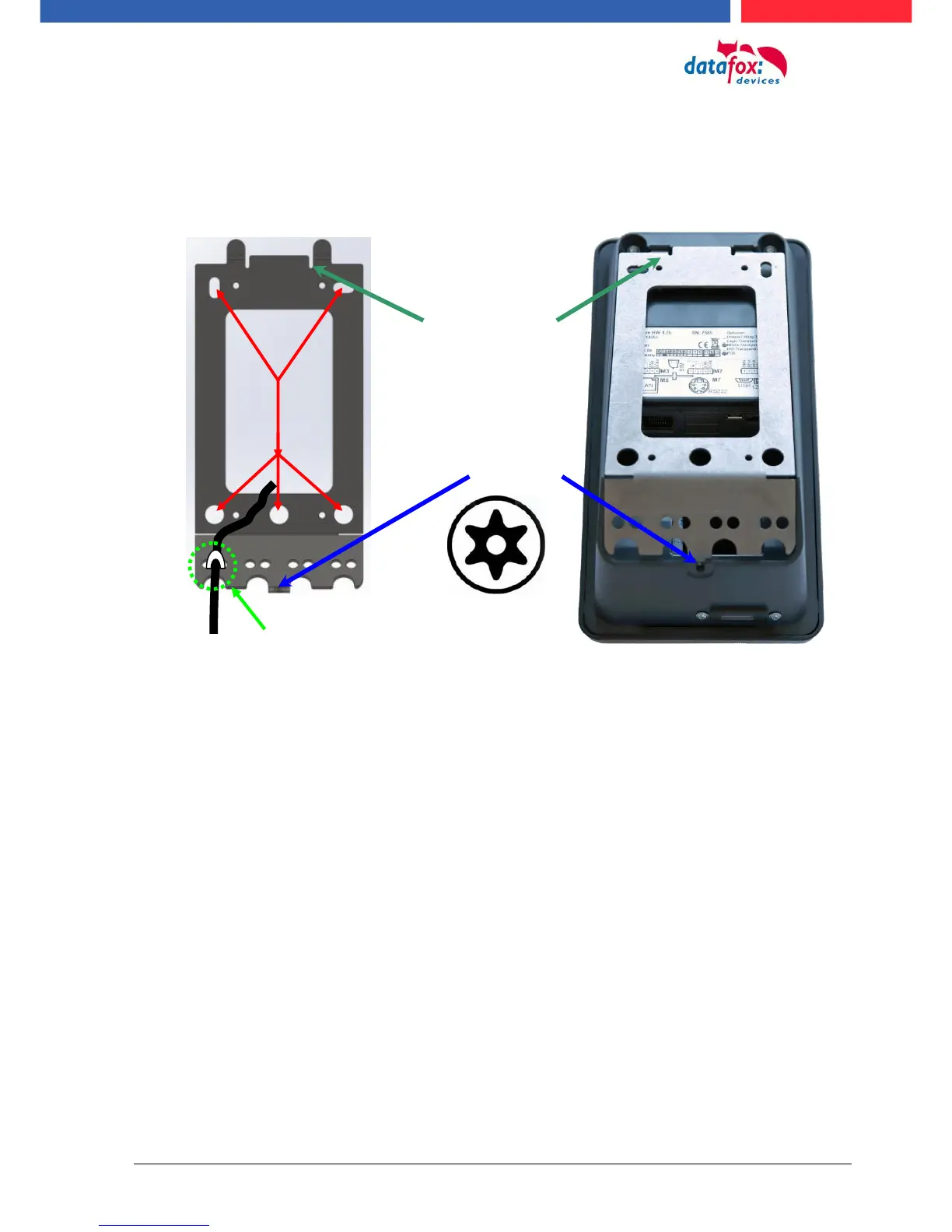

The wall mounting takes place by means of a wall bracket. This is attached to the wall via 4 attach-
ment points.
Fixed screw
The terminal is
mounted at the top.
On the down site
can you fixed the
terminal with a
screw.
Befestigungslöcher
Attachment for cable ties for
strain relief.
Torx T8
