Handbuch Datafox EVO 3.5 Pure Seite 118 Datum: 06.08.2018 Version: 04.03.07.XX
5.11.4. DataOnCard an a aceess control reader - wirering

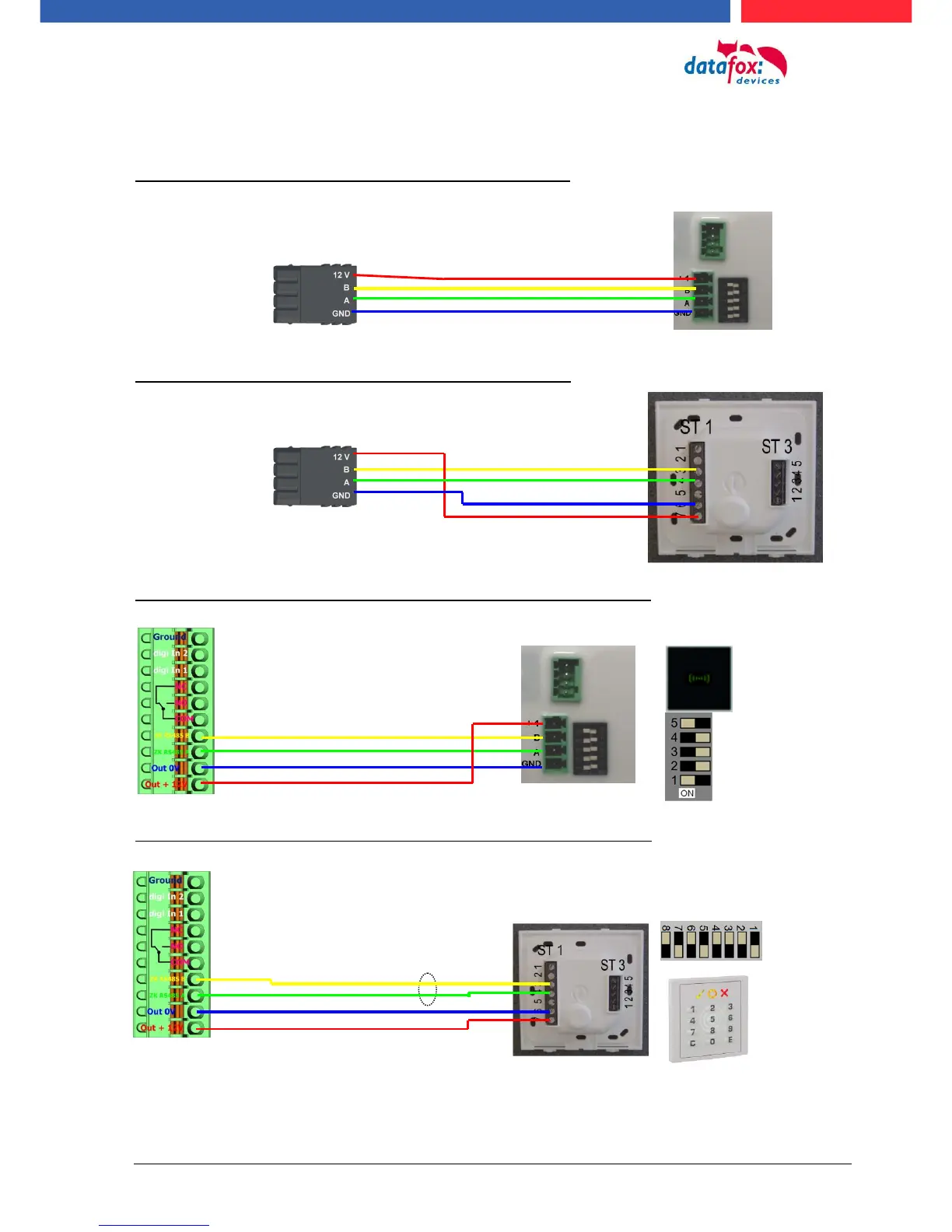

Wireringplan for EVO-access reader with using DataOnCard:
(for each cable line you use the same wirering, Bus Number / Master Number )
Wireringplan for PHG-access reader with using DataOnCard:
(hierbei gilt der gleiche Aufbau pro ZK-Strang bzw. ZM / Bus-ID)
ZK-Knoten Wireringplan for EVO-access reader with using DataOnCard:
ZK-Knoten Wireringplan for PHG-access reader with using DataOnCard:
Bus Nr. 1
EVO-access
-reader
connector 4 pole
for Access-Bus
on Modulplace 1
Bus Nr. 1
PHG-access
-reader
connector 4 pole
for Access-Bus
on Modulplace 1
EVO-access-reader
connector
RS 485 bus line
up to 500m
in a twisted pair cable
