Handbuch Datafox EVO 3.5 Pure Seite 64 Datum: 06.08.2018 Version: 04.03.07.XX

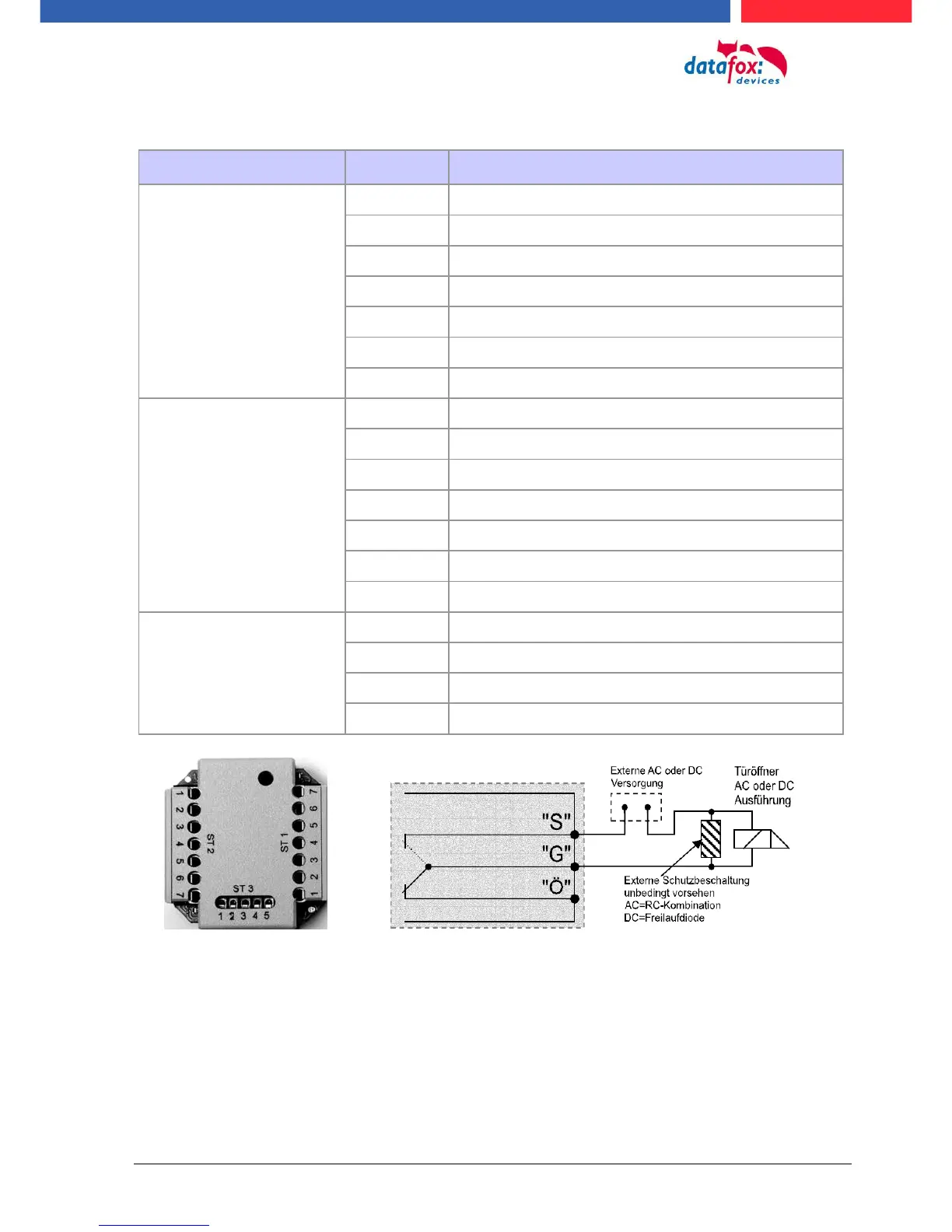

Connecting the IO-Box:
Anschluss (ST1,2,3)
Klemme Nr.
Beschreibung
ST1
1
Relais 1 normaly close
2
Relais 1 common
3
Relais 1 normaly open
4
free
5
free
6
digital in 1 Signal
7
digital in 1 ground
ST2
1
Relais 2 normaly close
2
Relais 2 common
3
Relais 2 normaly open
4
free
5
free
6
digital in 2 Signal
7
digital in 2 ground
ST3
1 und 2
ground
3
U+ 8…..30V
4
SCL
5
SDA
ST 1 Circuit diagram
3 = “S“ normaly open
2 = “G“ common
1 = “Ö“ normaly close
