Handbuch Datafox EVO 3.5 Pure Seite 86 Datum: 06.08.2018 Version: 04.03.07.XX

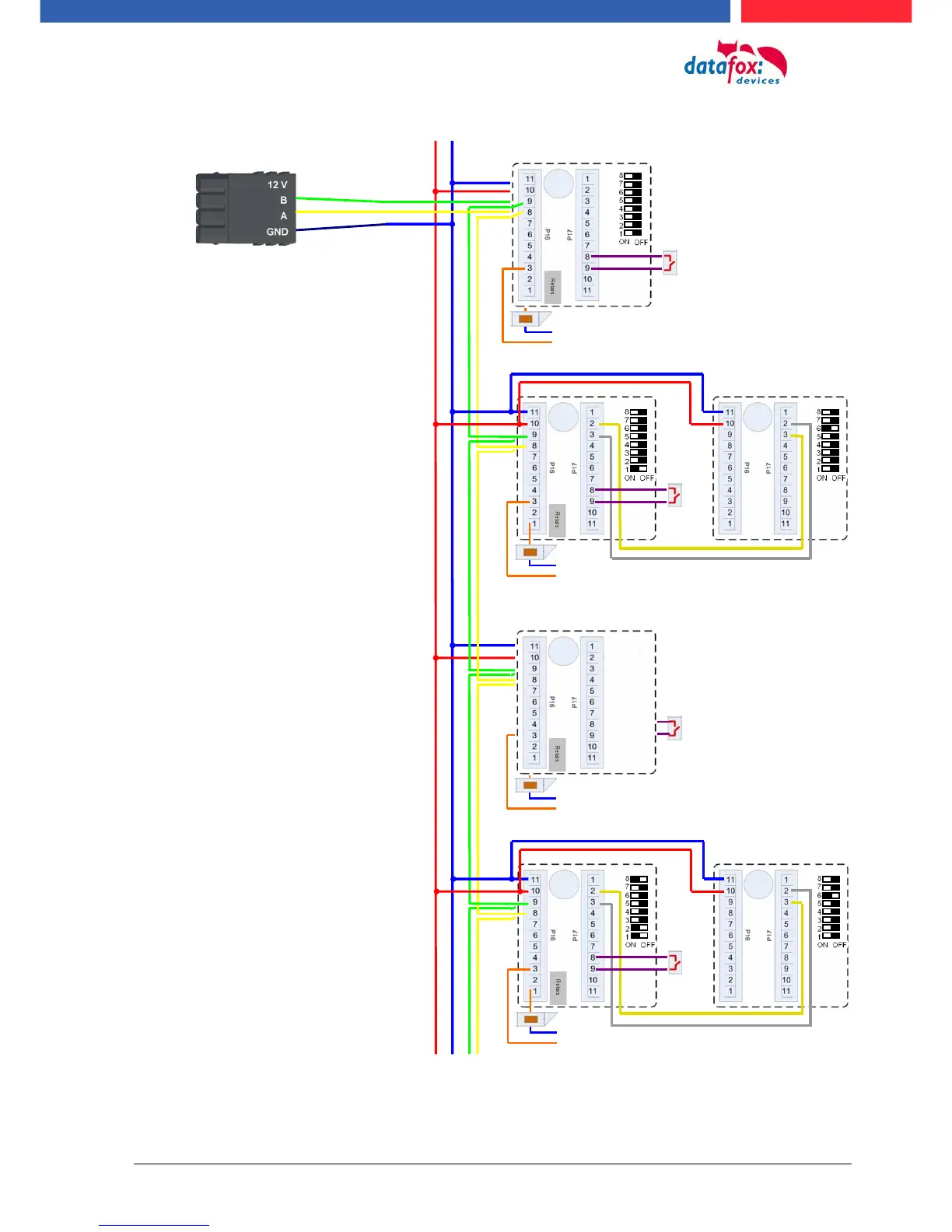

Wiring plan:
More modules are possible.
Connector on the
MasterIV device
Reader module (L)
Art-Nr.:106020
Reader module (L)
Art-Nr.:106020
12V + -
ext. max 30V 2A
Door opener
Tür
Kontakt
Combination module (LTM)
Art-Nr.: 106030
ext. max 30V 2A
Door opener
Tür
Kontakt
ext. max 30V 2A
Door opener
Tür
Kontakt
ext. max 30V 2A
Door opener
Tür
Kontakt
Combination module (LTM)
Art-Nr.: 106030
