Datalogic DX8200A Reference Manual

DX8200A
38
2
Multidata Network
In this layout, one master and up to 7 DX8200A slave readers have their own P.S. and
therefore multiple reading phases. Each P.S. is connected through a C-BOX 100, which in
turn is connected to its relative scanner through a CAB-601X cable.
The master sends all the individual messages collected from the Lonworks interface as well
as its own to the Local Host through its C-BOX 100.

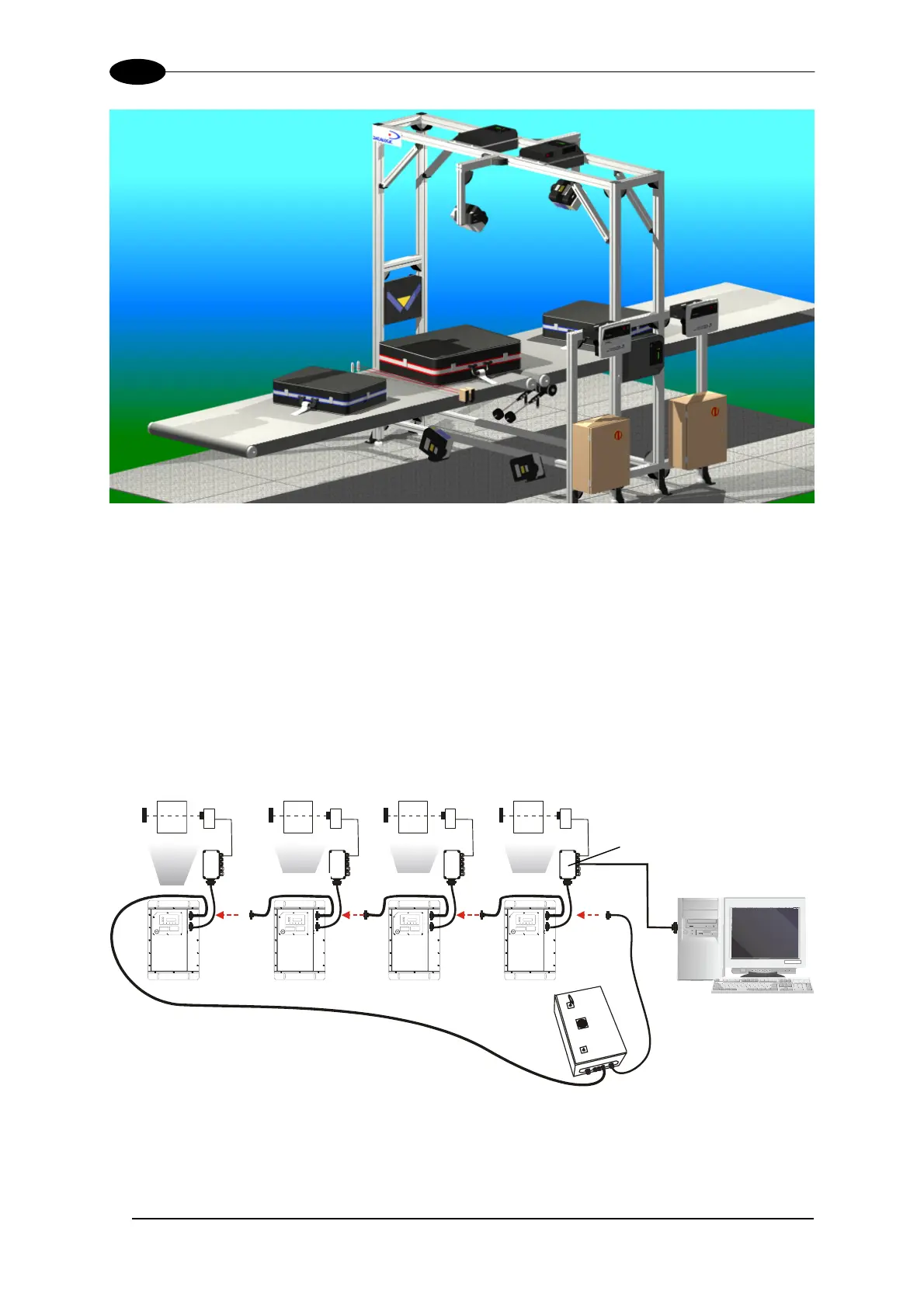

The following image shows a system consisting of four readers, which are all connected
together using CAB-810X cables and the system is powered by a PWR-240 power supply.
P.S.*
P.S.*
P.S.*
P.S.*
CAB601X
C-BOX 100**
CAB860X
CAB810X CAB810X CAB810X
Local Host
Slave 3 Slave 2 Slave 1 Maste
r
PWR-240
CAB830X
* P.S. (Presence Sensor) connected to External Trigger/PS input.
** all C-BOX 100s modified to accept scanner power
Figure 43 – Multidata Network

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
