Datalogic DX8200A Reference Manual

GENERAL VIEW
DX8200A
4
3
1
2
2
Laser Beam Output Windows
Laser Safety Label
Mountin
g
Slots
1
2
3
Mounting Reference Label
4

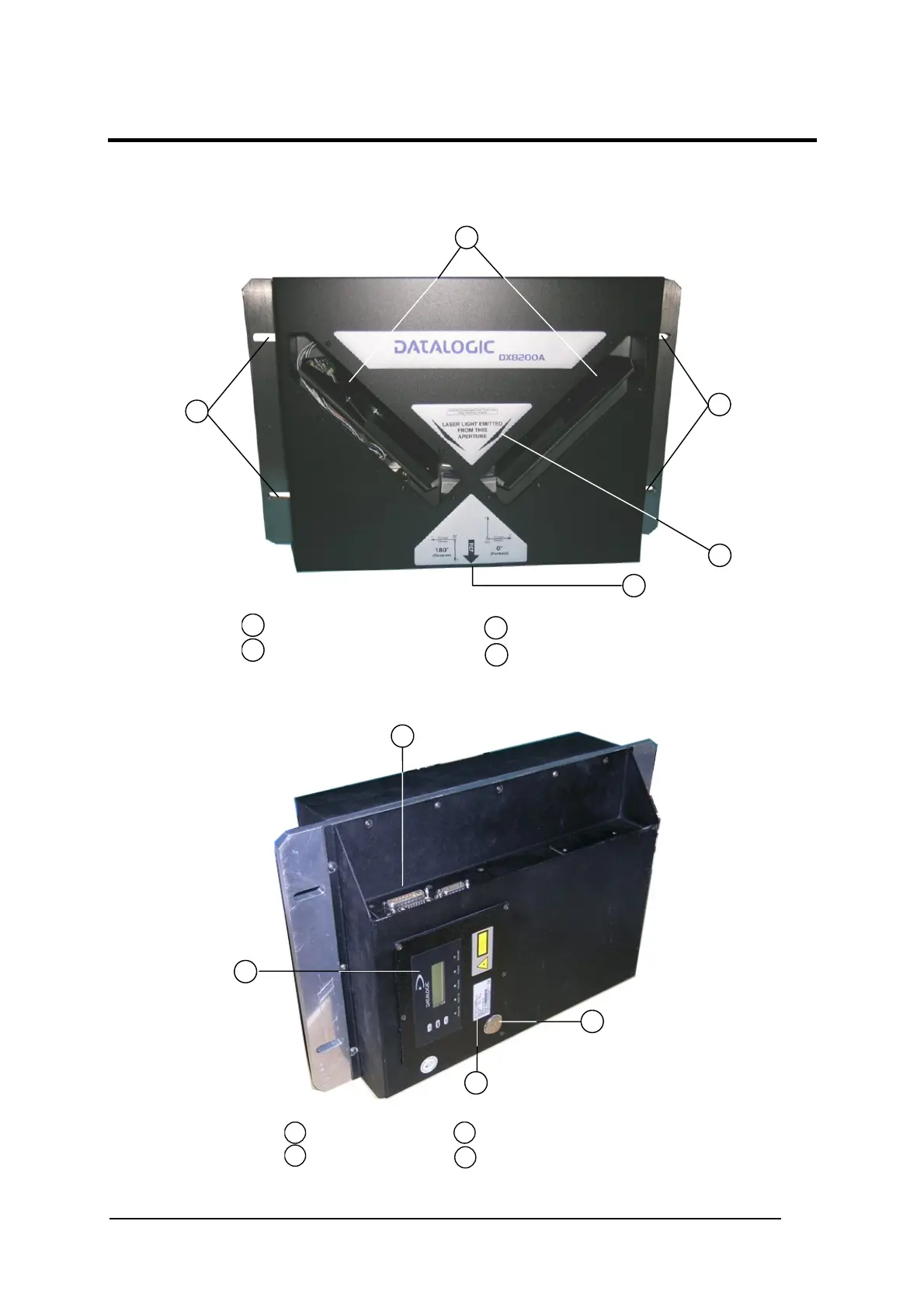

Figure A - DX8200A – Reading Windows Side
1
3
4
2
Connector Panel
1
Service Access Cap
2
Product Label
3
Displa
y
and Ke
y
pad Panel
4
Figure B - DX8200A Display and Keypad Side
ix

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
