Datalogic DX8200A

DX8200A
4

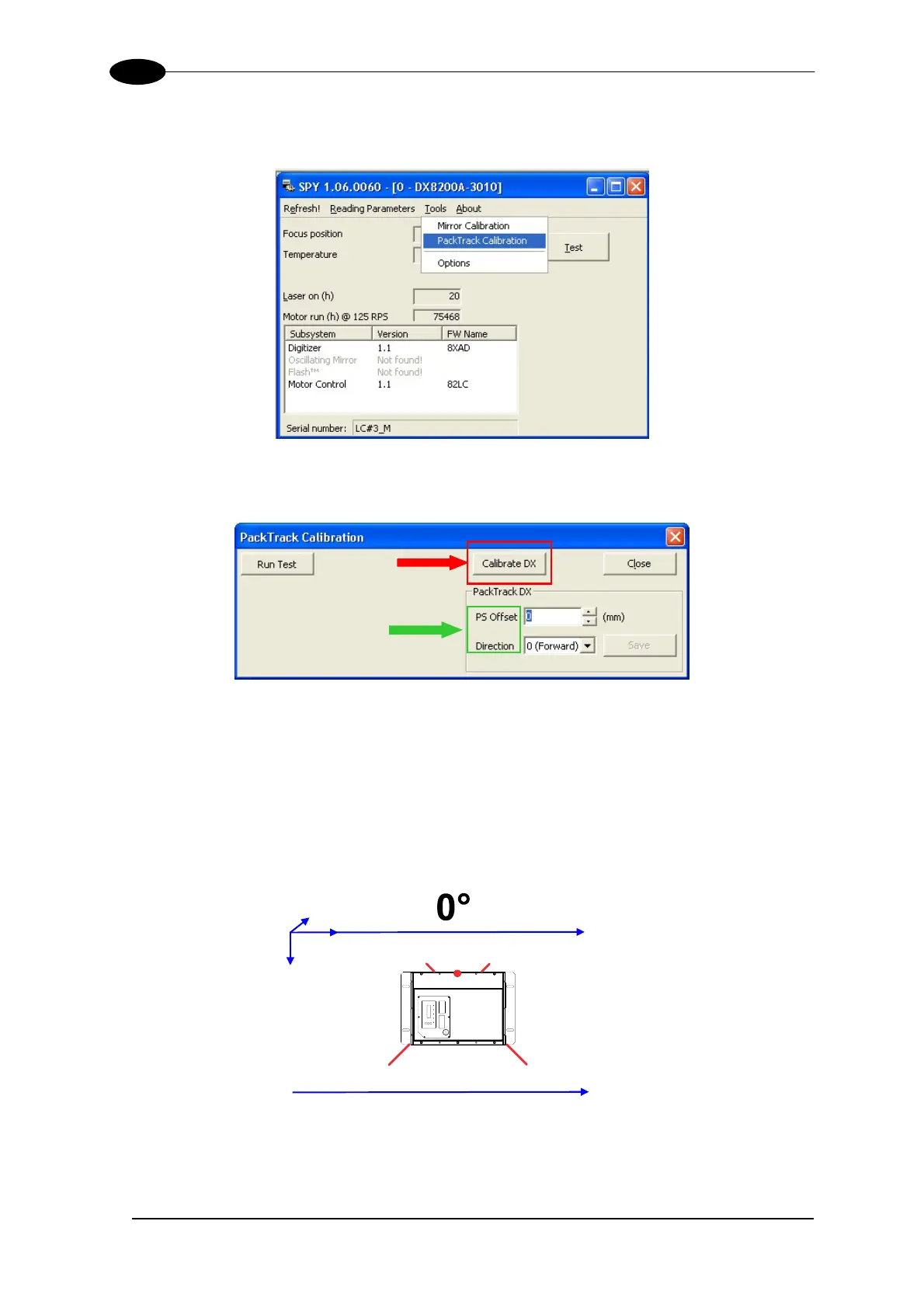

Once the Spy window has been opened, select the “PackTrack™ Calibration” option from the
Tools menu:
Figure 62 – Selecting PackTrack™ Calibration Option
The following window will open:
Figure 63 – PackTrack™ Calibration Window
Set the PS Offset and Direction parameters.
Scanner Direction
The different scanner orientations are illustrated in the following figures:
Top View
Conveyor Direction
DX8200A Scanner Direction 0° (Forward)
58
