Datalogic DX8200A Reference Manual

INSTALLATION
2
2.5.4 Multiplexer
The Multiplexer connection is used to integrate a DX8200A slave
reader in a Multidrop
network consisting of different scanners not provided with a Lonworks interface.
Each scanner is connected to a Multiplexer (MX4000) with the RS485
half-duplex main interface.
E
N
T
<
<
E
N
T
<
<
P.S.*
P.S.*
P.S.*
DX8200A
DS4600
A
DS4600
A
PWR-120
C
C
C -BOX 100
-BOX 100
-BOX 100
MX4000
#0
#1
1
#31
Local Host
1
RS485 HD Main Interface
* P.S. (Presence Sensor) connected to External Trigger/PS input.

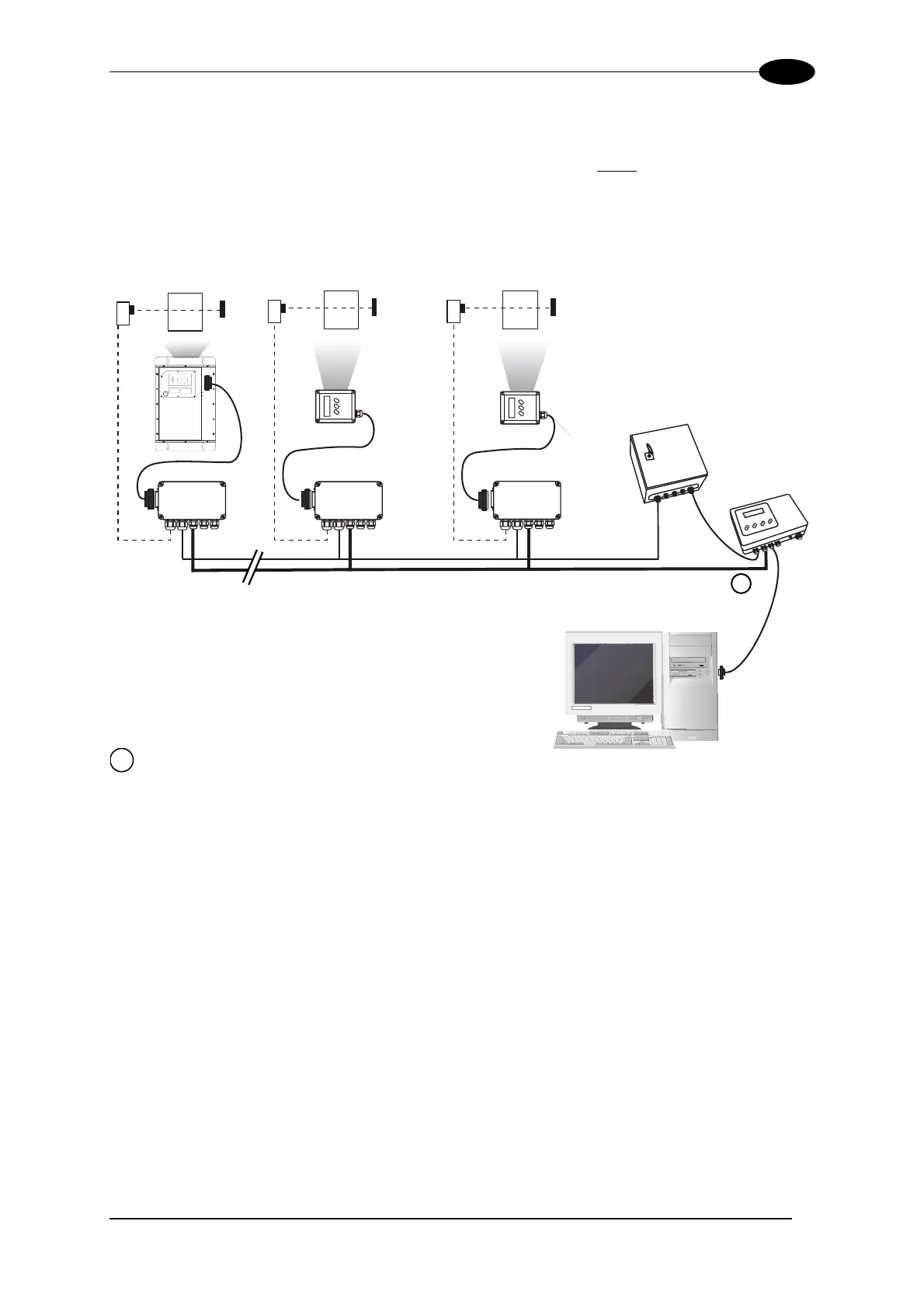

Figure 37 – Multiplexer for DX8200A Standard Models
The auxiliary serial interface of the slave scanners can be used to visualize collected data or
to configure it using the Genius™ utility.
When On-Line operating mode is used, the scanner is activated by an External Trigger when
the object enters its reading zone.
31

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
