Datalogic DX8200A Reference Manual

SCANNER CONVERSION
A
A SCANNER VAC TO VDC CONVERSION (OPTIONAL)
It is possible to convert the DX8200A VAC model into a VDC model by inserting an internal
jumper.
CAUTION
The following operation should be performed by qualified personnel only.
WARNING
Before unscrewing the panel of the DX8200A, make sure the power
supply cable is disconnected to avoid shock or harm to the operator.
Follow the procedure below:
1. Unscrew the Display and Keypad panel screws to open the scanner.
2. Carefully remove the panel as shown in Figure 66.

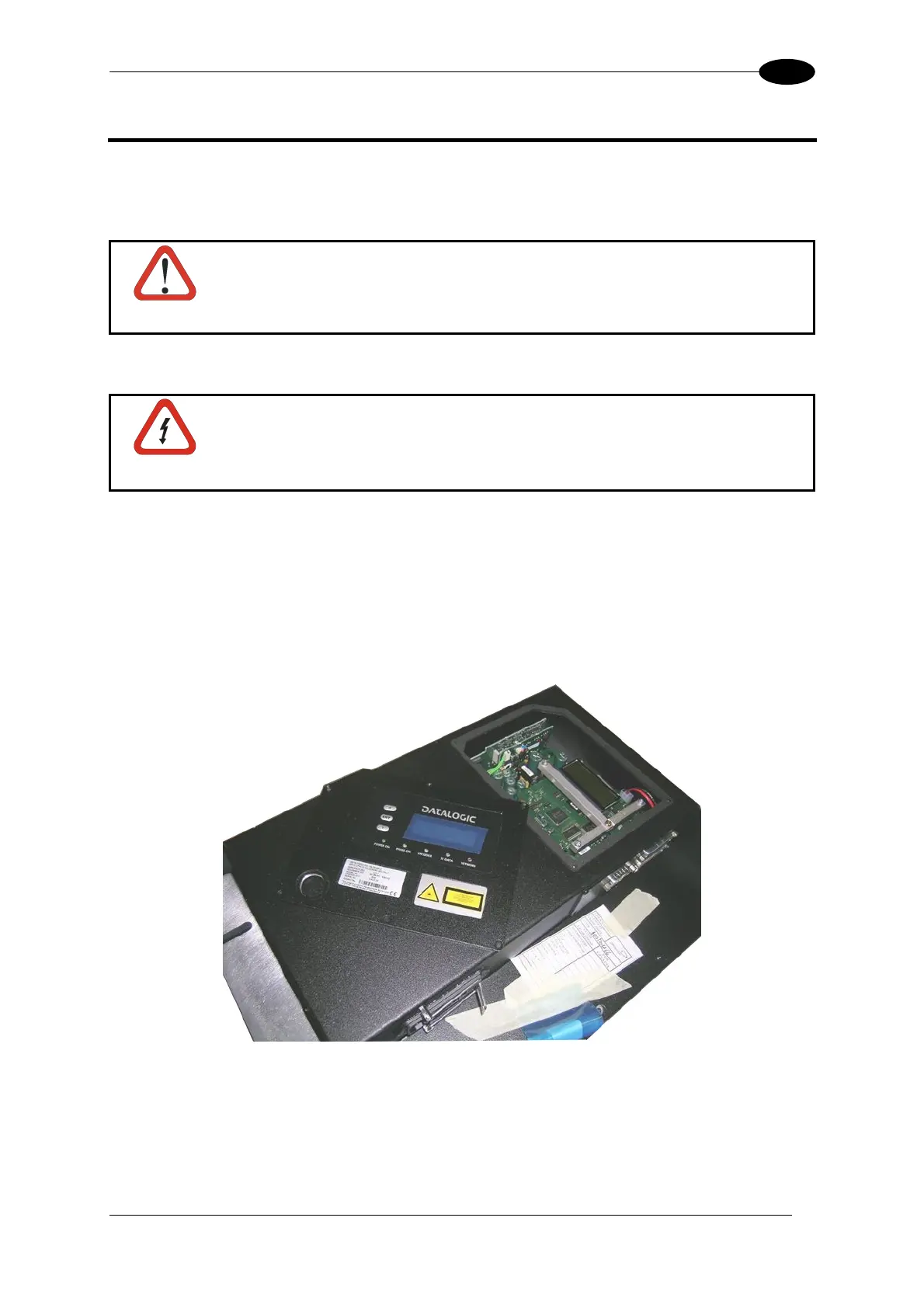

Figure 66 - Opening the DX8200A
75

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
