Datalogic DX8200A Reference Manual

INSTALLATION
2
Lonworks Interface
The Lonworks network is used for both input and output connection to build a multi-sided or
omni-station system connecting several readers.
The DX8200A master usually employs the 17-pin female connector for output connection to
the first slave, while the 17-pin male connector is terminated by inserting the BTK-8102
terminator (see Figure 17 for details).
Both connectors are always employed when connecting together the slave readers. In
particular, the 17-pin female connector is used for output connection and the male one for
input connection. The female connector in the last slave reader is terminated by the
BTK-8100 bus return to close the system network.

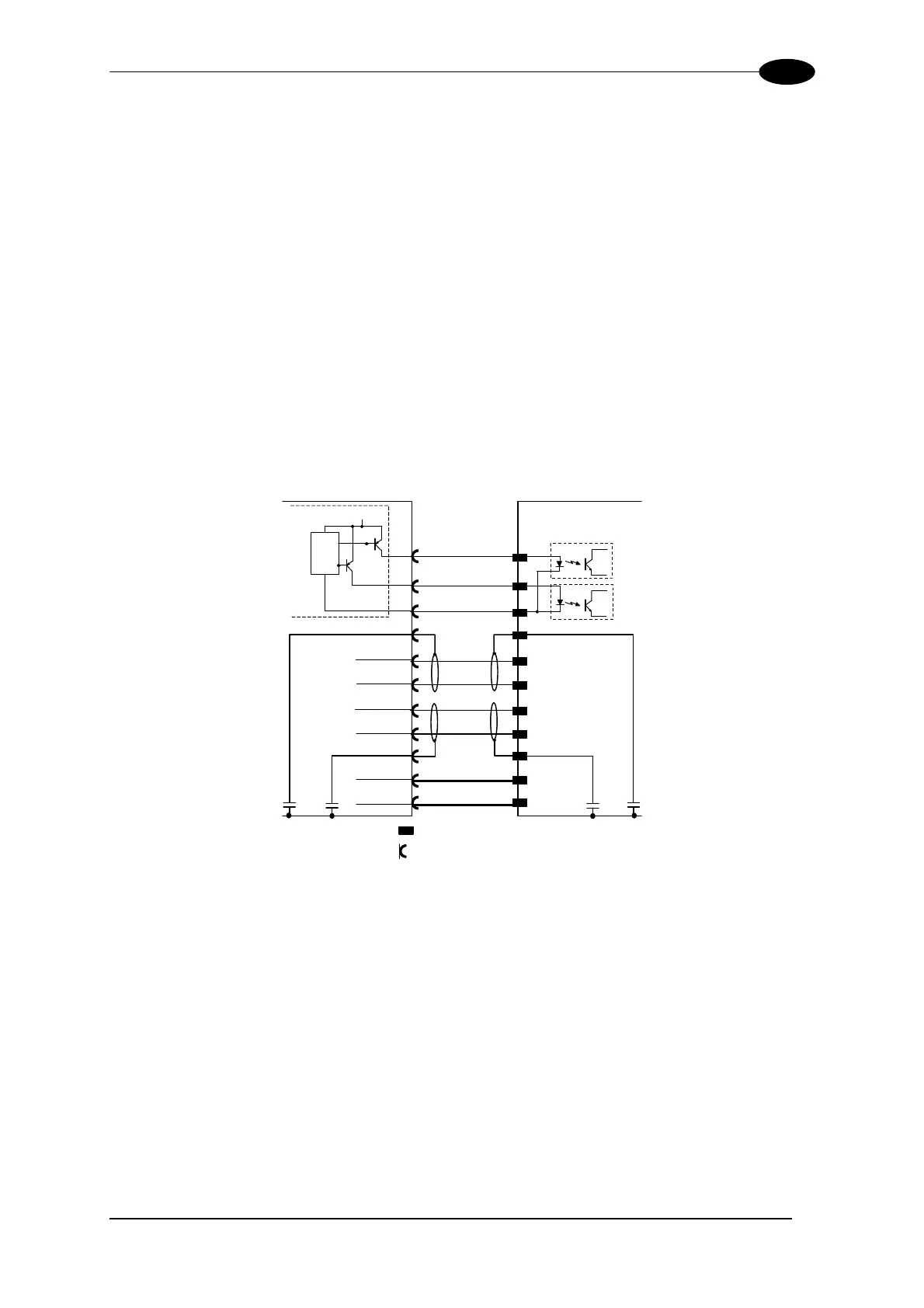

The following diagram represents the connection between a DX8200A working as master
and a DX8200A working as a slave reader.
The cable shields for LON A/B are connected to pin 1 and pin 3 - CHASSIS.
Master
9
Slave
15
8
13
12
15
13
12
VS_I/O
REF_I/O
A1
1
A2
A1
A2
LON A+
LON A-
VS
GND
AWG 13
AWG 13
= male connecto
r
= female connecto
r
9
8
11
10
LON B+
LON B-
11
10
1
3
3
CHASSIS
CHASSIS
CHASSIS
CHASSIS
Figure 19 – DX8200A Master/Slave Lonworks Connection
19

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
