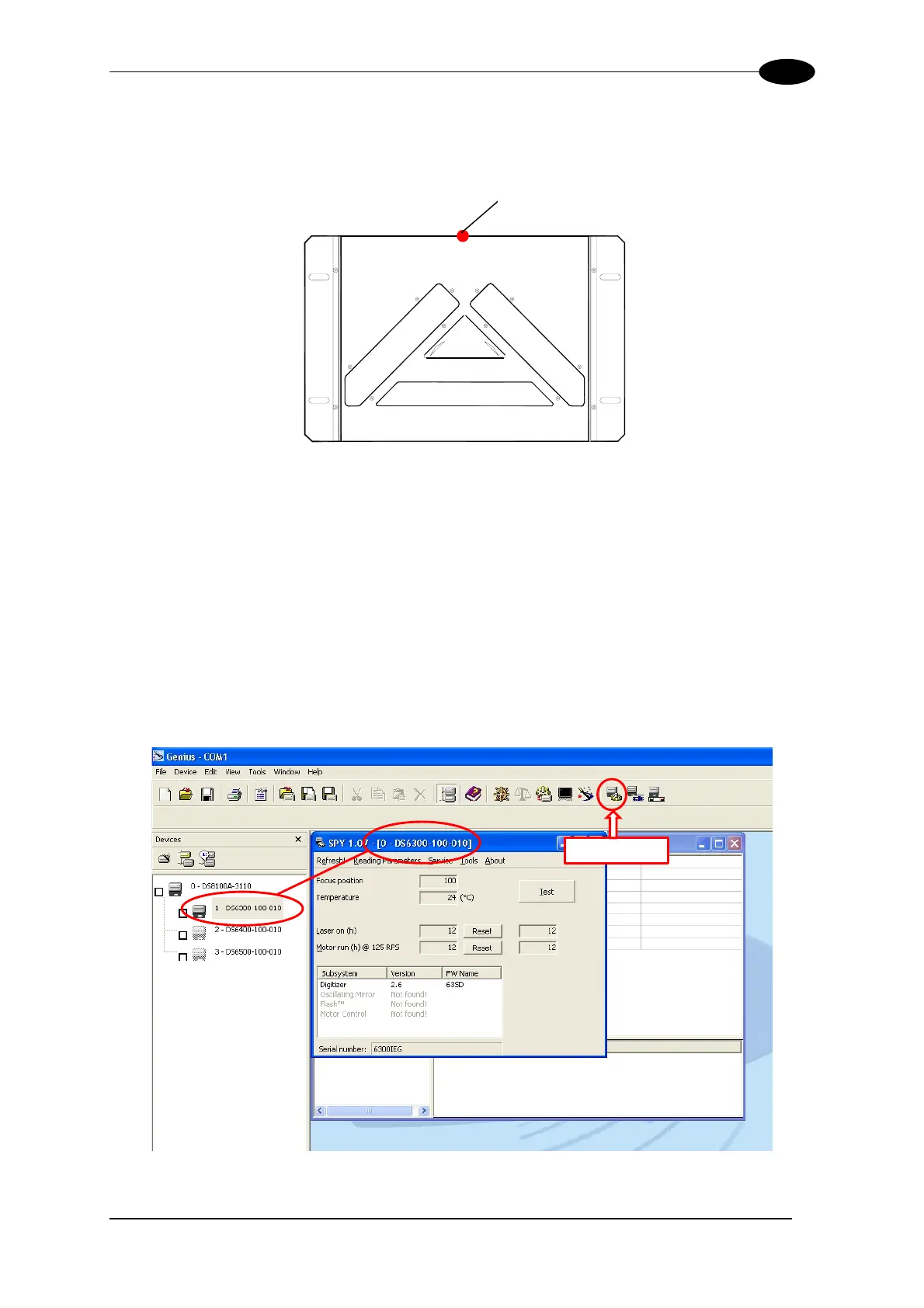

For DX scanners the zero coordinate references are located on the scanner.
PackTrack™ Coordinate Reference Point
where x, y, z = 0
Figure 60 – DX8200A Coordinate Reference Point
4.2.1 PackTrack™ Calibration for DX8200A
The DX8200A scanner calibration is already made at the factory and it is not
recommended to overwrite it. By means of the Genius™ software tool SPY, the user can
set the Direction and PS Offset parameters.
Select the “SPY” option from the Tools menu or click on the related icon on the Genius™
toolbar to open the following dialog box:
Note: When selecting a slave scanner through the Master, click on the slave in the Devices
window, then click the SPY icon.
SPY ICON
Figure 61 – Opening the Spy Window
57

Datalogic DX8200A Specifications

General

Scan speed	1000 sec/page
Sensor type	Laser
Dimensions (WxDxH)	470 x 300 x 147 mm
Standard interfaces	RS-232, RS-485
Power requirements	30 VCD
Power consumption (standby)	30 W
Keys quantity	3 keys
Product color	Black
LED indicators	Charging, Power
Housing material	Steel
International Protection (IP) code	IP64
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	11000 g
