System and Network Layouts
QUICK REFERENCE GUIDE 7
SYSTEM AND NETWORK LAYOUTS
Stand Alone Layouts

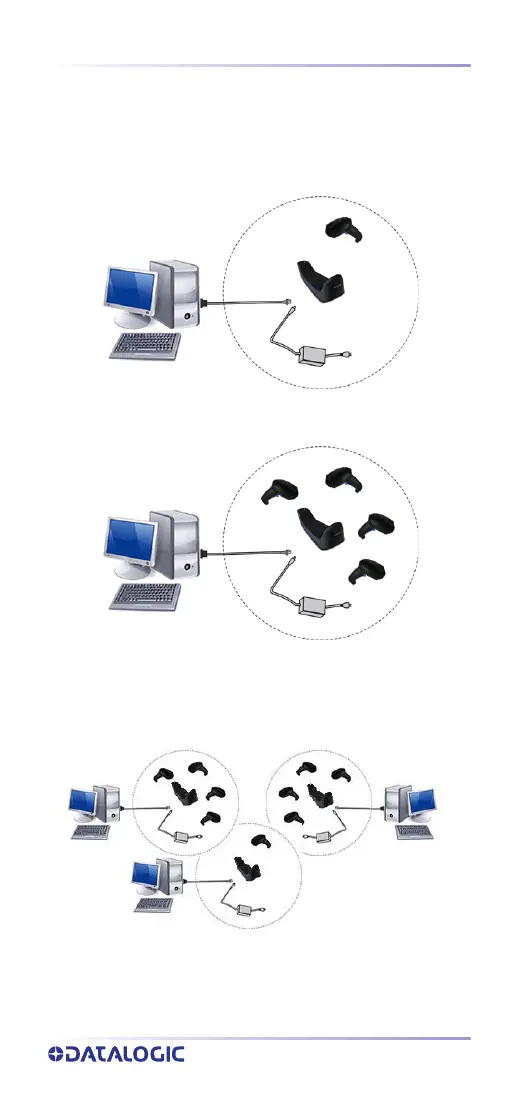

Figure 7 - Single Reader Layout
Figure 8 - Multiple Reader Layout
In stand alone systems, each cradle is connected to a sin-
gle Host.
Figure 9 - Multiple Stand Alone Layout
Many stand alone connections can operate in the same
physical area without interference, provided all readers
and cradles in the system have different addresses.
