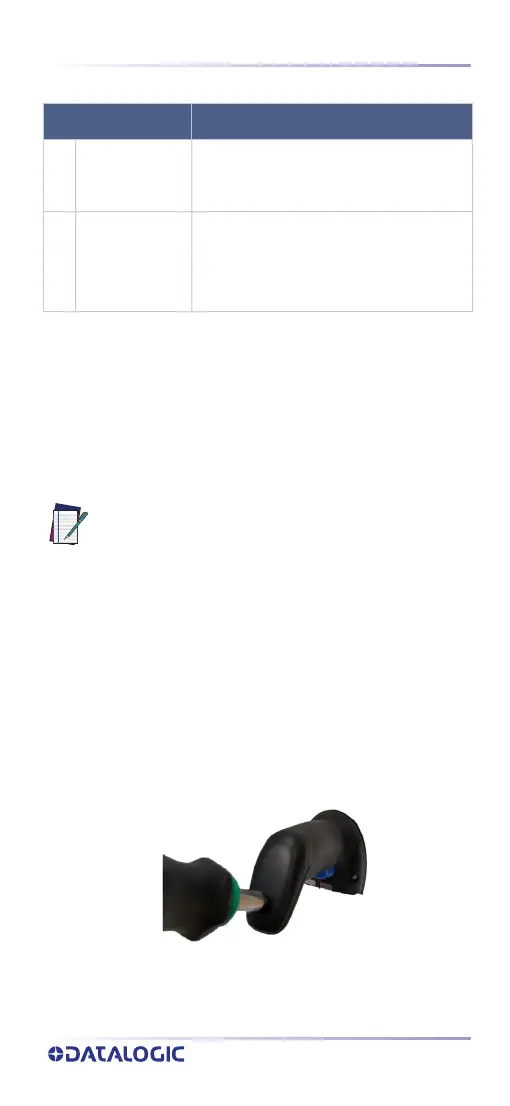

Replacing the Battery Pack
QUICK REFERENCE GUIDE
9
Table 2 - Radio Base LEDs
The capacitive touch button can be used to force device
connection via the Datalogic Aladdin Software tool and for
paging the scanner when it is activated. Refer to the Gry-
phon I GBT/GM4200 Product Reference Guide (PRG) for a
more detailed explanation.
REPLACING THE BATTERY PACK
Use the following procedure to replace the reader’s battery:
1. With a screwdriver, unscrew the battery cover
screw.
LED STATUS
1
Power ON / Data
Green ON = Base is powered
Green Blinking = Base receives data and
commands from the Host or the Reader.
2Charging
Green ON = the battery is completely charged
Green fading = battery level 51 to 99%
Amber fading = battery level 1 to 50%
Red fading = pre-charge
NOTE: Before proceeding, read “Battery Safety”
on page 43. To ensure maximum performance,
Datalogic recommends the replacement of the
rechargeable battery pack if you note either of the
following conditions:
• battery life drops below approximately 80% of
the original life;
• battery charging time increases significantly.
