INSTALLATION
3
2.2 OM-GRYPHON™ INTERFACE CABLE CONNECTIONS
OM-GRYPHON™ Connectors
The OM-GRYPHON™ incorporates a multi-standard interface which can be connected
to a Host by simply plugging the correct interface cable into the connector, placed on
the base of the cradle. In addition the cradle must be connected to an external power
supply.
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle.
Push down on the clip while unplugging the cable.

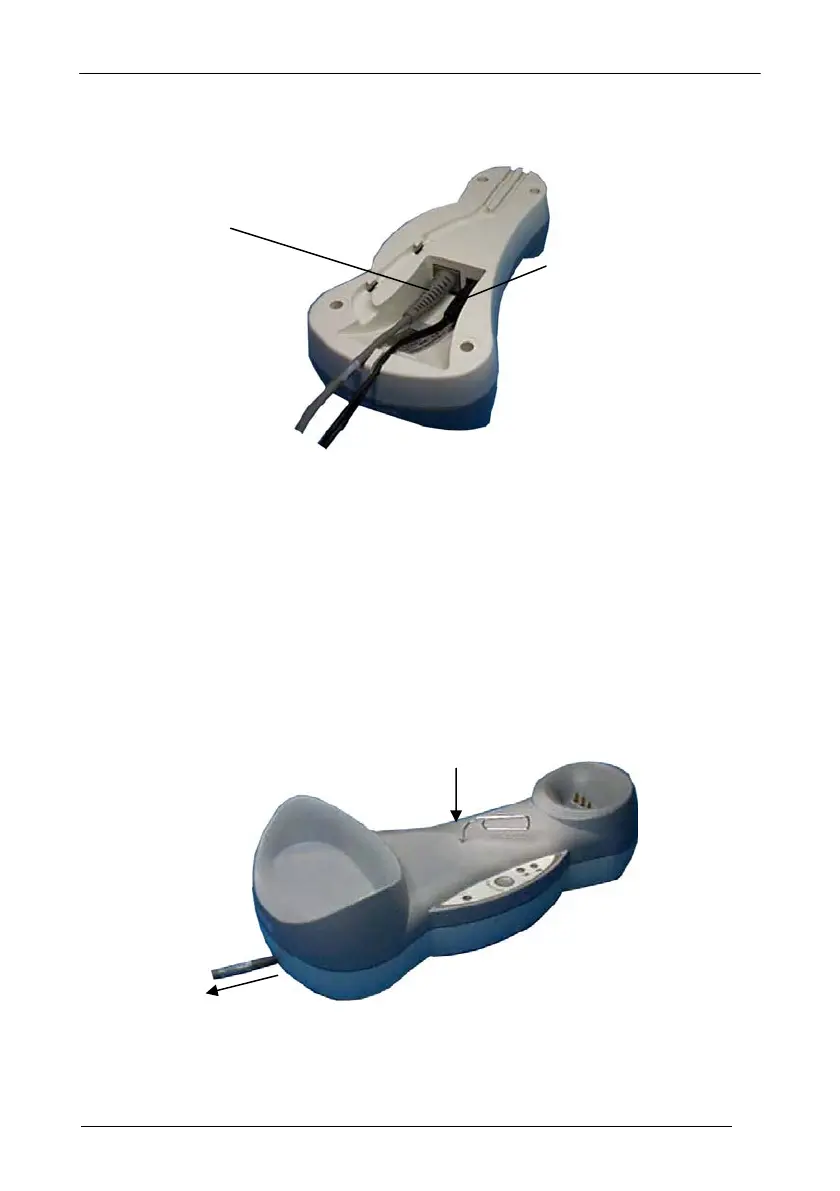

Disconnecting the OM-GRYPHON™ Cable
