GRYPHON™ M SYSTEM AND NETWORK LAYOUTS
11
3.2 MULTIDROP STAR-SYSTEM™ NETWORK LAYOUTS
Even though many stand alone systems can operate in the same physical area without
interfering with each other, it may be desirable to bridge data from multiple base stations
in a network to a single
Host. Gryphon™ M readers are compatible with
STAR-System™ networks. These networks provide seamless active roaming for any
RF reading device in the system.
3.2.1 Host Master Layout
A. Host Master with STAR-Link™
B. STAR-Box™ converter
C. STARGATE™ base stations

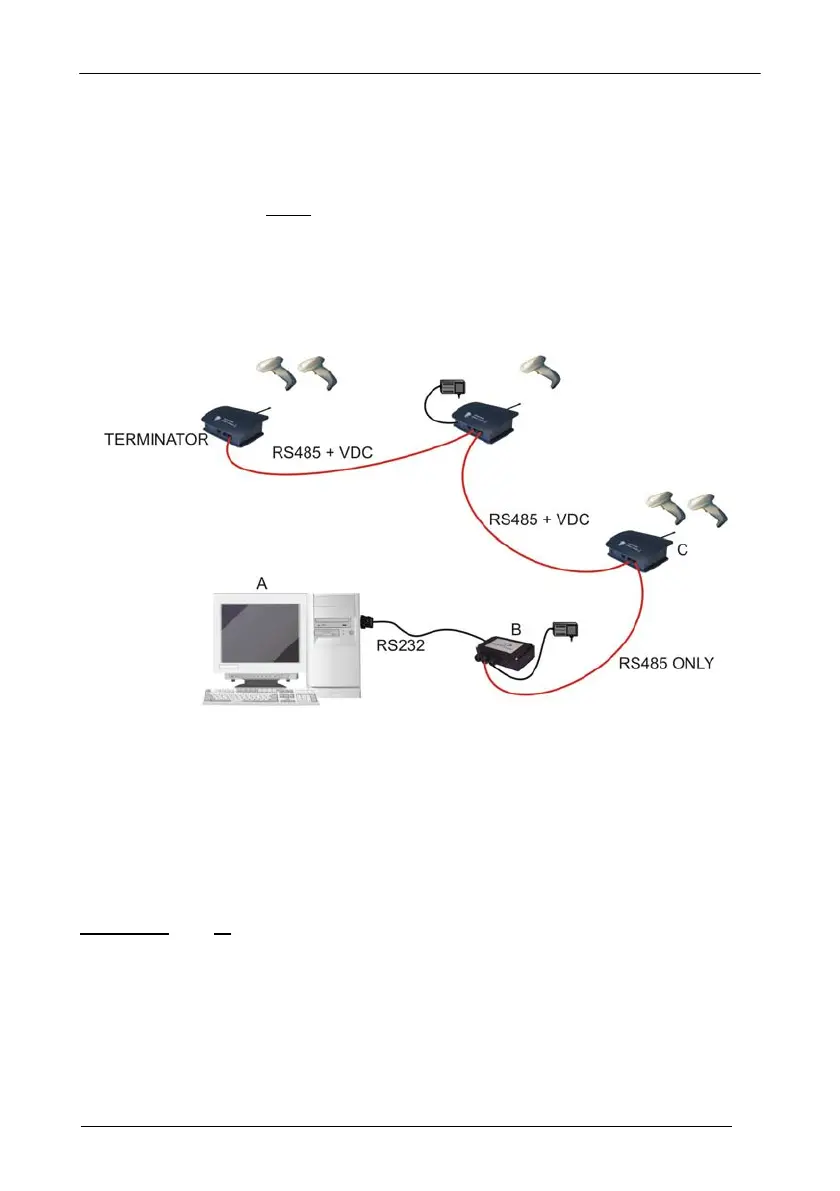

Example Multidrop STAR-System™ Network with Host as Master
In this layout the Host acts as the Master using STAR-Link™ software. The Host is
connected in RS232 to a STAR-Box™ converter which is connected to the first slave in
the RS485 network. In this way the base stations provide communications between a
single Host
and all readers in the system. STARGATE™ base stations are used as
slaves in this network. The Slaves at the ends of the network must be terminated (see
the STARGATE™ and STAR-Box™ Installation Manuals).
See par. 4.5 and or the Sm@rtSet Help On-Line for system configuration
specifications.

Datalogic GRYPHON Specifications

General

Scanner Type	Handheld
Category	Barcode Reader
Drop Resistance	1.8 meters
IP Rating	IP65
Decoding Capability	1D and 2D barcodes
Light Source	LED
Scan Pattern	Linear or omnidirectional (depending on model)
Model	GRYPHON
Type	Handheld
Scan Technology	Laser or Imager (depending on model)
Humidity	5 to 95% NC (Non-Condensing)
Dimensions	Varies by model
Weight	Varies by model
Power Supply	Battery (Cordless Models)
Storage Temperature	-20°C to 60°C
