GRYPHON™
26
Connect device to
Host with USB cable
Does a dialog box
appear asking
whether Bus power
is sufficient?
Select desired USB
interface code
Disconnect reader
at Host
Connect external
power supply to
cable and power up
Reconnect reader
cable to Host and
close dialog box
NO
YES
Read test codes.
Reader is READY
Load drivers
(if requested)
Load drivers
(
if re
q
uested
)
LED blinks
LED off - BEEP OK
BEEP OK

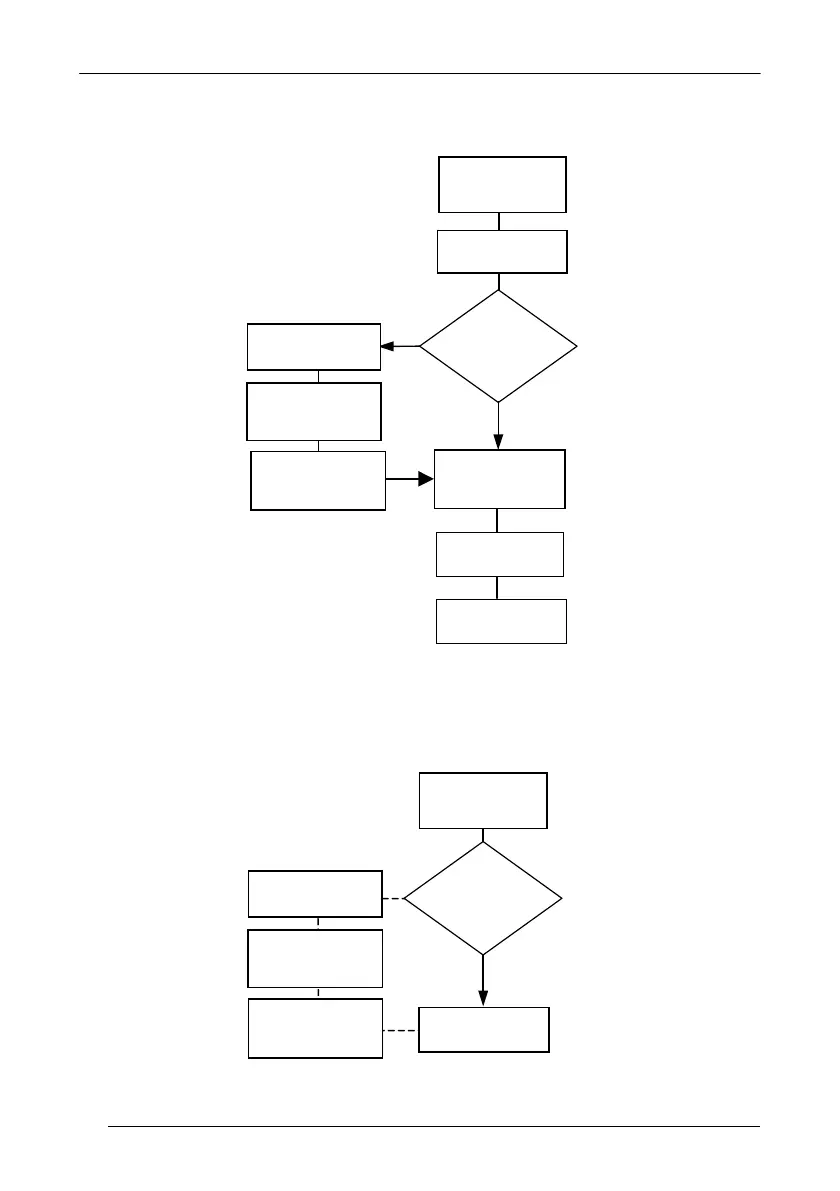

First Start-Up
LED off
Successive start-ups will automatically recognize the previously loaded drivers. If
external power is used, verify that external power is already supplied.
NO
YES
Read test codes.
Reader is READY
LED blinks
LED off - BEEP OK
BEEP OK
Connect device to
Host with USB cable
Successive Start-Ups
Disconnect reader
at Host
Connect external
power supply to
cable and power up
Reconnect reader
cable to Host and
close dialog box
Does a dialog box
appear asking
whether Bus power
is sufficient?
