2D Symbologies

Product Reference Guide

143

Aztec

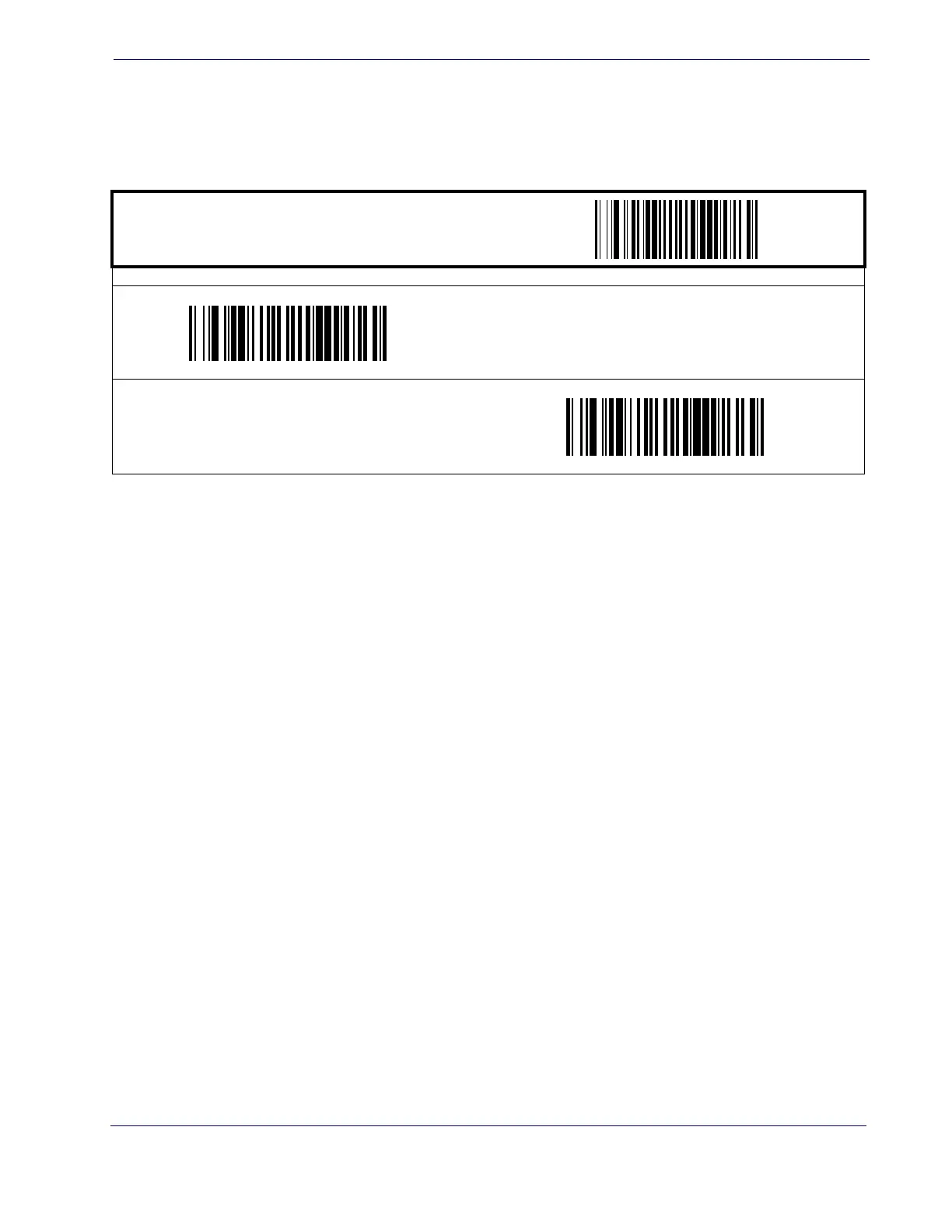

Disable/Enable Aztec

When disabled, the scanner will not read Aztec labels.

START / END

PROGRAMMING bar codes

Disable Aztec

DEFAULT

Enable Aztec
